TOHATSU MFS 30B User Manual

54

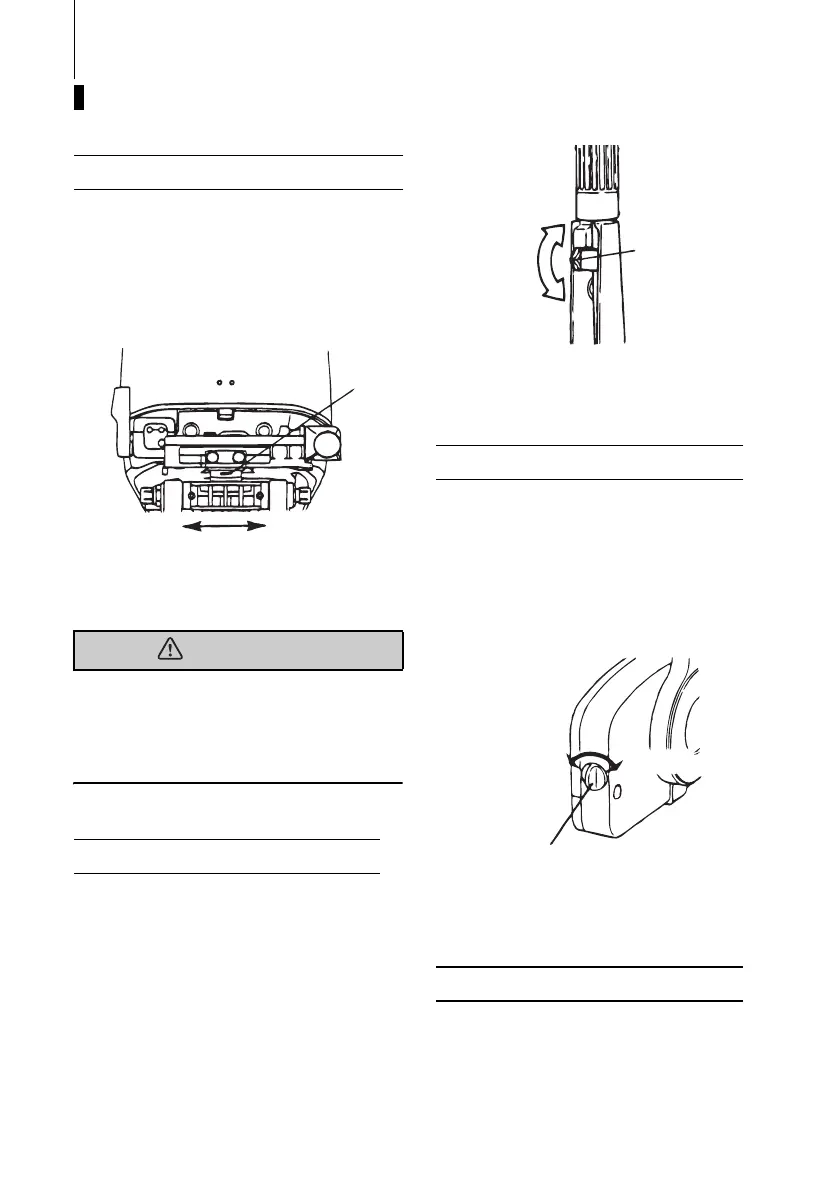

ADJUSTMENT
ENOM00073-0
Adjust this lever to achieve the desired
steering friction (drag) on the tiller handle.
Move lever towards (A) to tighten friction
and move lever towards (B) to loosen fric-
tion.
1. Steering friction lever
A. Heavier
B. Lighter
ENOW00074-0
Do not overtighten the throttle grip or
remote control tensioner or it could result
in difficulty of movement resulting in the
loss of control causing an accident and
could lead to severe injury.
ENOM00074-0
Friction adjustment of the throttle grip can
be made with the throttle adjustment
screw.
1. Lighter
2. Heavier
3. Throttle adjustment screw
ENOM00075-0
(Throttle friction adjustment screw)
To adjust the load of the remote control
lever, turn the throttle friction adjustment
screw on the front of the remote control.
Turn clockwise to increase the load and
counter-clockwise to decrease it.
1. Throttle friction adjustment screw
A. Lighter
B. Heavier
ENOM00076-0
If straight-line cruising can not be
achieved, adjust the trim tab located under
the anti-ventilation plate.
1. Steering friction
WARNING
2. Throttle grip
1
A
B
ENOF00076-0
3. Remote Control Lever Load
4. Trim Tab Adjustment
1
2
3
ENOF00077-0
B
A
1
ENOF00078-0
MFS25-30B_EN.book Page 54 Wednesday, December 12, 2012 11:58 AM
