1. Clean area around filter canister mounting surface.
1
2

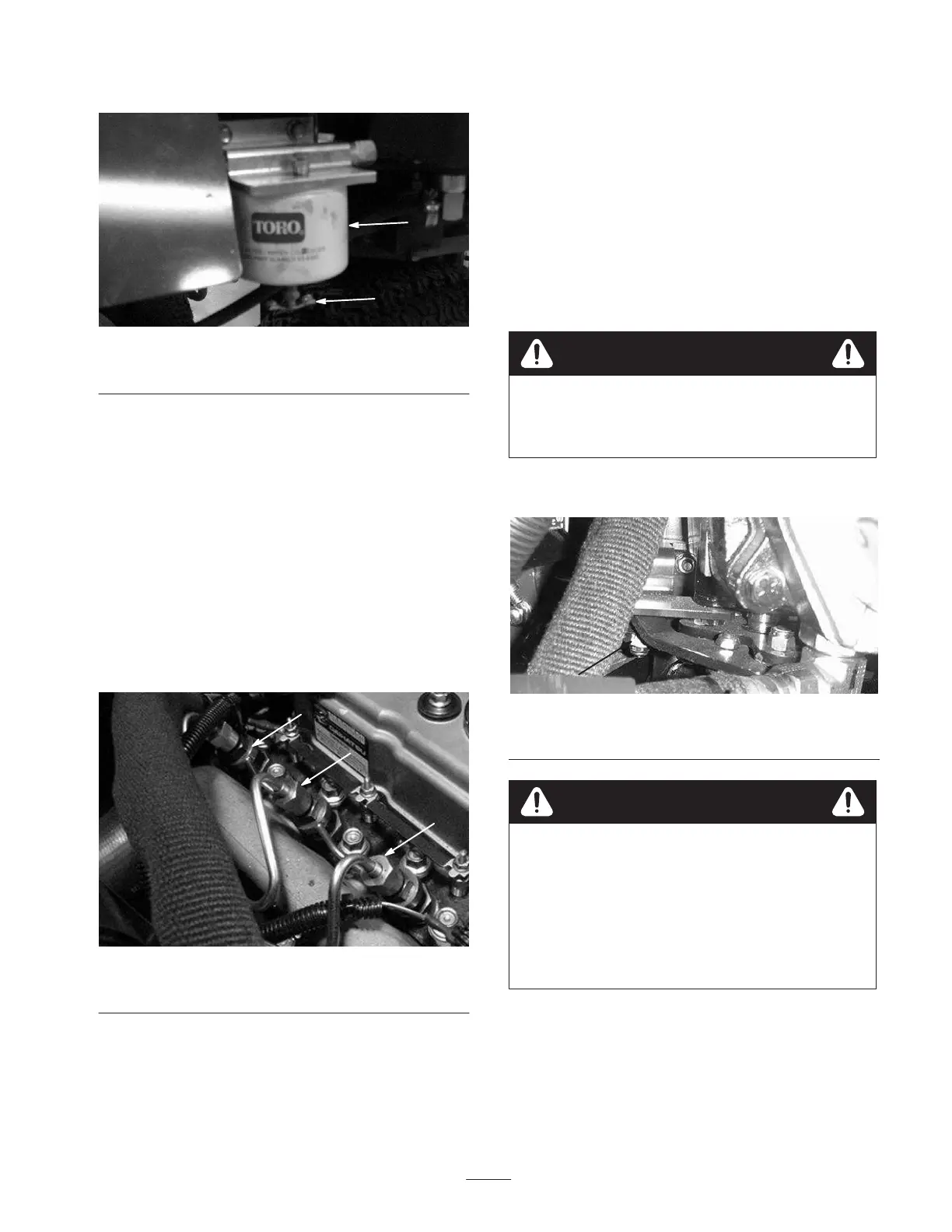

Figure 51
1. Drain plug 2. Filter canister
2. Remove filter canister and clean mounting surface.
3. Lubricate gasket on filter canister with clean engine oil.
4. Install filter canister by hand until gasket contacts
mounting surface, then rotate an additional 1/2 turn.
Bleeding Air From Injectors
Note: This procedure should be used only if fuel system
has been purged of air through normal priming procedures
and engine still will not start; refer to Bleeding Fuel
System.
1. Loosen the pipe connection to the No. 1 nozzle and
holder assembly (Fig. 52).
1
1
1
Figure 52
1. Fuel injectors (3)
2. Slowly move throttle to full FAST position.
3. Turn key in key switch to START position and watch
fuel flow around connector. Turn key to OFF position
when solid flow is observed.
4. Tighten pipe connector securely.
5. Repeat steps 1-4 on No. 2 and 3 nozzles.
Adjusting the Traction Drive for
Neutral
If the machine moves when the traction pedal is in the
neutral position, the traction cam must be adjusted.
1. Park the machine on a level surface and turn the engine
off.
2. Raise one front wheel off of the floor and place support
blocks under the frame.
If the machine is not supported adequately, it may
accidentally fall, injuring anyone under the
machine.
Warning
3. Loosen the locknut on the traction adjustment cam
(Fig. 53).
1
Figure 53
1. Traction adjustment cam
The engine must be running so a final adjustment
of the traction adjustment cam can be performed.
Contact with hot or moving parts can result in
personal injury.
Keep hands, feet, face, and other body parts away
from the muffler, other hot parts of the engine, and
other rotating parts.
Warning
4. Start the engine and rotate the cam hex in both
directions to determine the mid position of the neutral
span.
5. Tighten the locknut securing the adjustment.
6. Stop the engine.
