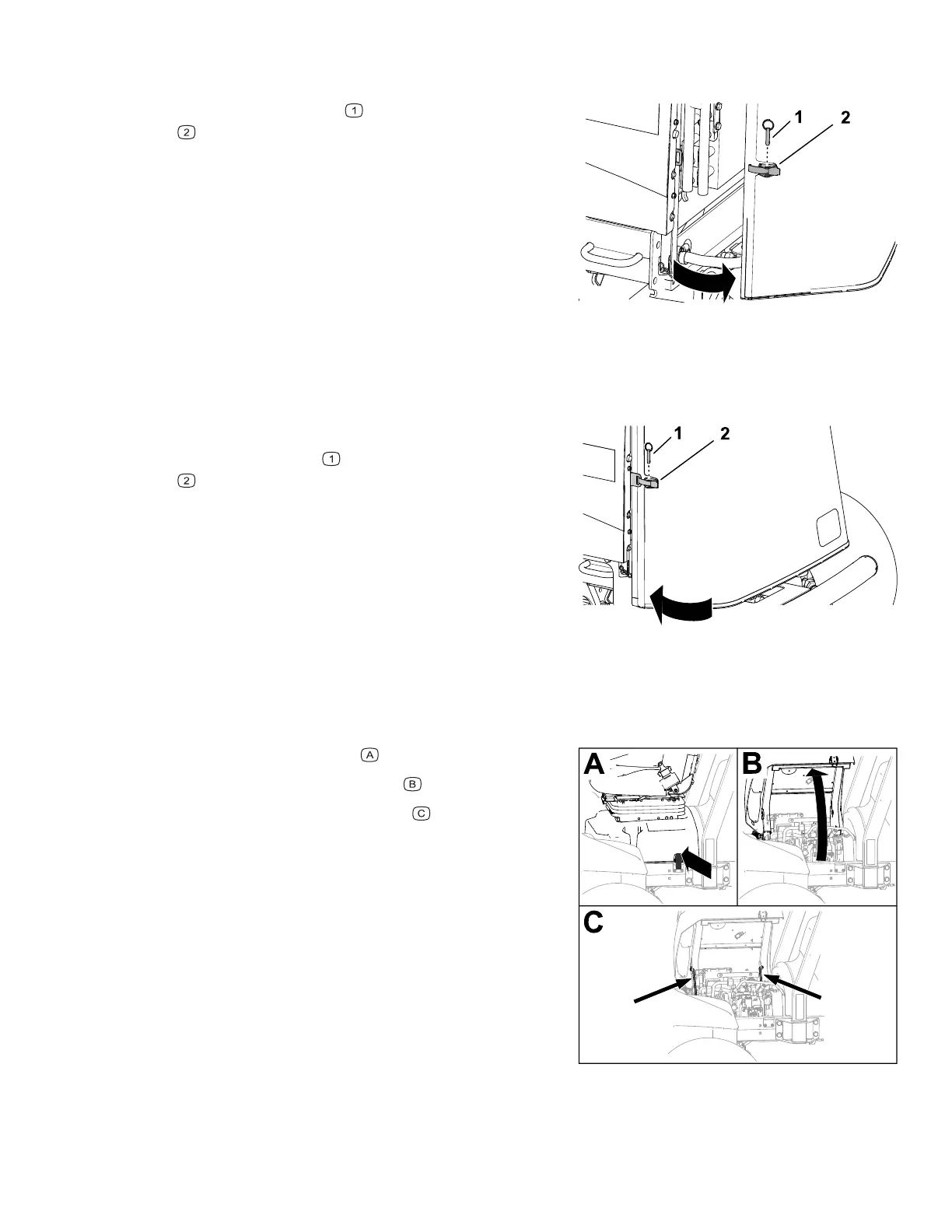

Opening
the
Screen
G437850
1.
Remove
the
ball
pin
from
the
screen
latch
.
2.
Unlatch
and
open
the
screen.
Closing
the
Screen
G414734
1.
Close
and
latch
the
screen.
2.
Insert
the
ball
pin
through
the
screen
latch
.
Tilting
the
Seat
G443836
1.
Unlatch
the
seat
base
.
2.
T
ilt
the
seat
and
base
open
.
3.
Support
it
with
the
prop
rods
.
Maintenance:
Pre-Maintenance
Procedures
Page
6–7
3464-490
A
73
75
