Adjusting the Rear Wheel Toe-in

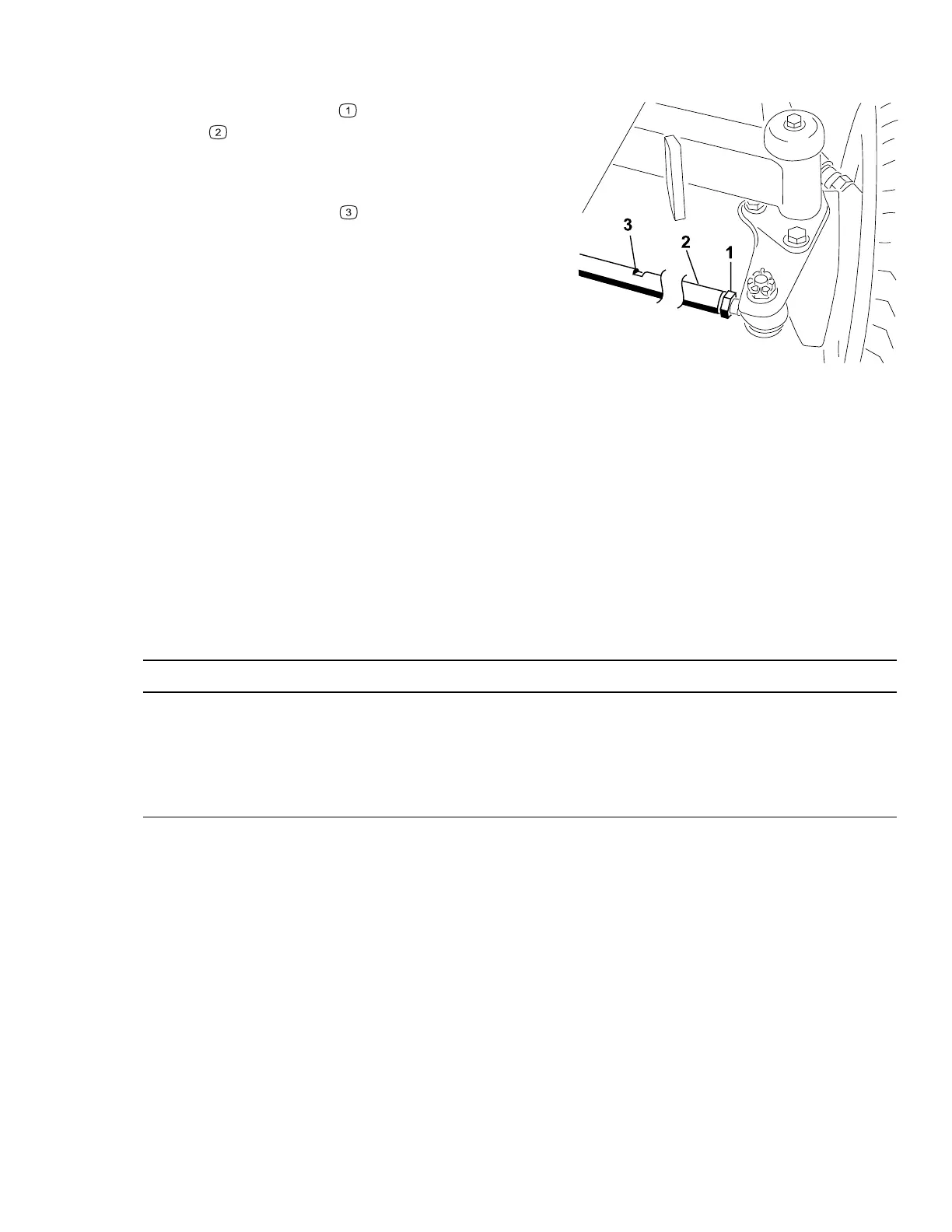

G416237
1. Loosen the jam nut on each end of the tie
rod
.
Note: The end of the tie rod with the external
groove is a left-hand thread.
2. Use the wrench flat
to rotate the tie rod.
3. At axle height, measure the center-to-center
distance at the front and rear of the steering
tires.
Note: The rear wheel toe-in adjustment is
correct if the difference between the front
wheel measurement and the rear wheel
measurement is 6 mm (1/4 inch) or less.
4. Repeat steps 1 and 2 as required.
5. Tighten the jam nuts.
Cooling System Maintenance
Coolant Specifications
The coolant reservoir is filled at the factory with a 50/50 solution of water and ethylene glycol
base extended-life coolant.
IMPORTANT
Use only commercially available coolants that meet the specifications listed in the
Extended Life Coolant Standards Table.
Do not use conventional (green) inorganic-acid technology (IAT) coolant in your
machine. Do not mix conventional coolant with extended-life coolant.
Maintenance: Drive System Maintenance Page 6–27 3464-490 A
