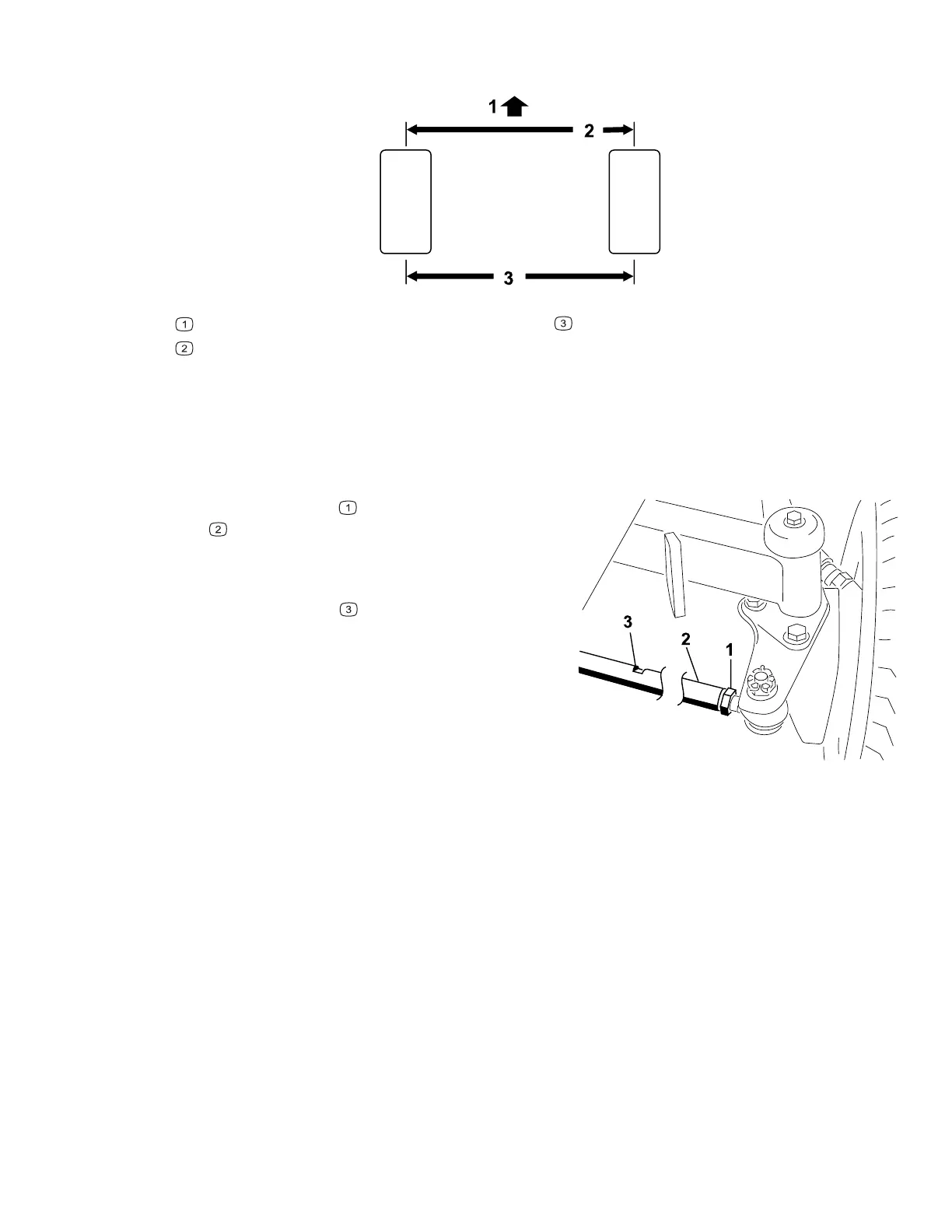

Checking the Rear-Wheel Alignment (continued)
G416236
Front of the traction unit
6 mm (1/4 inch) or less than the rear of the tire
Center-to-center distance
4. If the measurement is greater than 6 mm (1/4 inch), adjust the rear wheel toe-in.
Adjusting the Rear Wheel Toe-in
G416237
1. Loosen the jam nut on each end of the tie
rod
.
Note: The end of the tie rod with the external
groove is a left-hand thread.
2. Use the wrench flat
to rotate the tie rod.
3. At axle height, measure the center-to-center
distance at the front and rear of the steering
tires.
Note: The rear wheel toe-in adjustment is
correct if the difference between the front
wheel measurement and the rear wheel
measurement is 6 mm (1/4 inch) or less.
4. Repeat steps 1 and 2 as required.
5. Tighten the jam nuts.
Maintenance: Drive System Maintenance Page 6–28 3464-482 A
