Toro 21462 User Manual

RWDFrontWheelInstallation(continued)

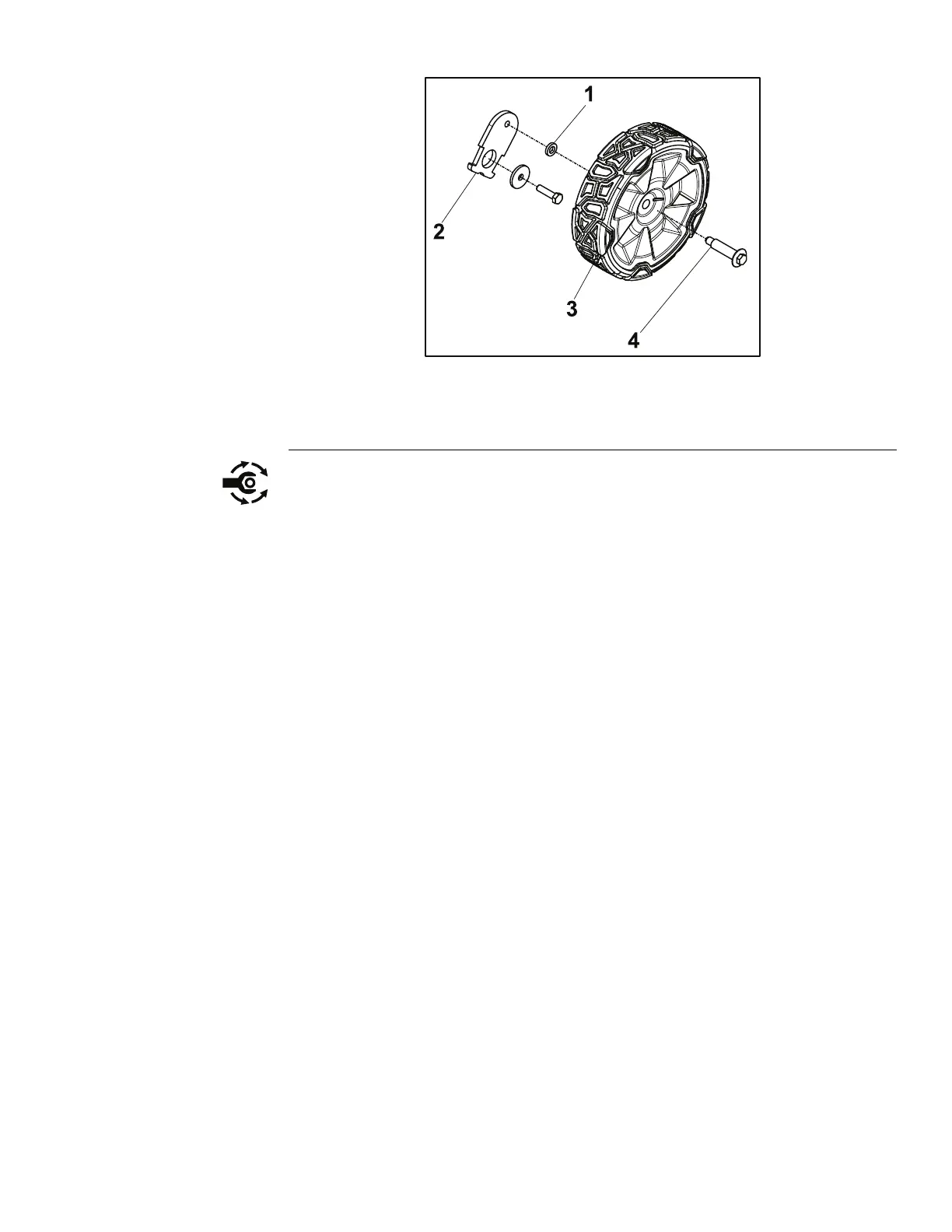

g352036
Figure130
1.Washer3.IdlerWheel
2.FrontPivotArm4.WheelBolt
2.Modelsequippedwithelectricstartonly,connectthebatterybyinstalling
thepositivecablerst,thenthenegativecabletothebattery.Installthefoam
padandbatterycover.Securethebatterycoverwith2(M4.2x2.0)screws.
Torquethescrewsto2.26±0.34N•m(20±3in-lbs).
3.Modelsequippedwiththe60vpowerhead,installtheharnesstothe
powerhead.
AWDFrontWheelReplacement
AWDFrontWheelRemoval
1.Parkthemachineonalevelsurface,stoptheengineandwaitforallmoving
partstostop.
2.Modelsequippedwiththe60vpowerhead,removetheharnessfrom
powerhead.
3.Modelsequippedwithelectricstartonly,removethe2(M4.2x2.0)
screwssecuringthebatterycover.Removethebatterycoverandfoampad.
Disconnectthebatterybyremovingthenegativecablerst,thenthepositive
cablefromthebattery.
4.Removethegrassbaggerassemblyifattached.
5.Using1/2inchsocketwrench,removethe(3/8–16inch)shoulderbolt
securingtheLHwheeltotheLHpivotarm.RepeatontheRHsideoftheunit.
6.RemovetheLHwheelandLHgearcover.RepeatontheRHsideoftheunit.
7.Usingasnapringpliers,removethesnapringsecuringtheLHpiniongearto
theLHtransmissionaxleshaft.RepeatontheRHsideoftheunit.
22InchAWD/RWDSteelDeckWalkPowerMowerService
Manual
Page7–7
DriveSystem:ServiceandRepairs
3445-579RevA

Toro 21462 Specifications

General

Brand	Toro
Model	21462
Category	Lawn Mower
Type	Walk-Behind
Power Source	Gas
Engine	Briggs & Stratton
Engine Displacement	163cc
Mulching Capability	Yes
Rear Bagging	Yes
Side Discharge	Yes
Starter	Recoil
Engine Type	4-Cycle
Cutting Width	22 inches
Drive System	Personal Pace
Cutting Height	1.0 - 4.0 inches
Fuel Capacity	0.25 gallons
Wheel Size	8 inches (front), 10 inches (rear)
Oil Capacity	20 oz
