Toro After Groundsmaster 4500-D User Manual

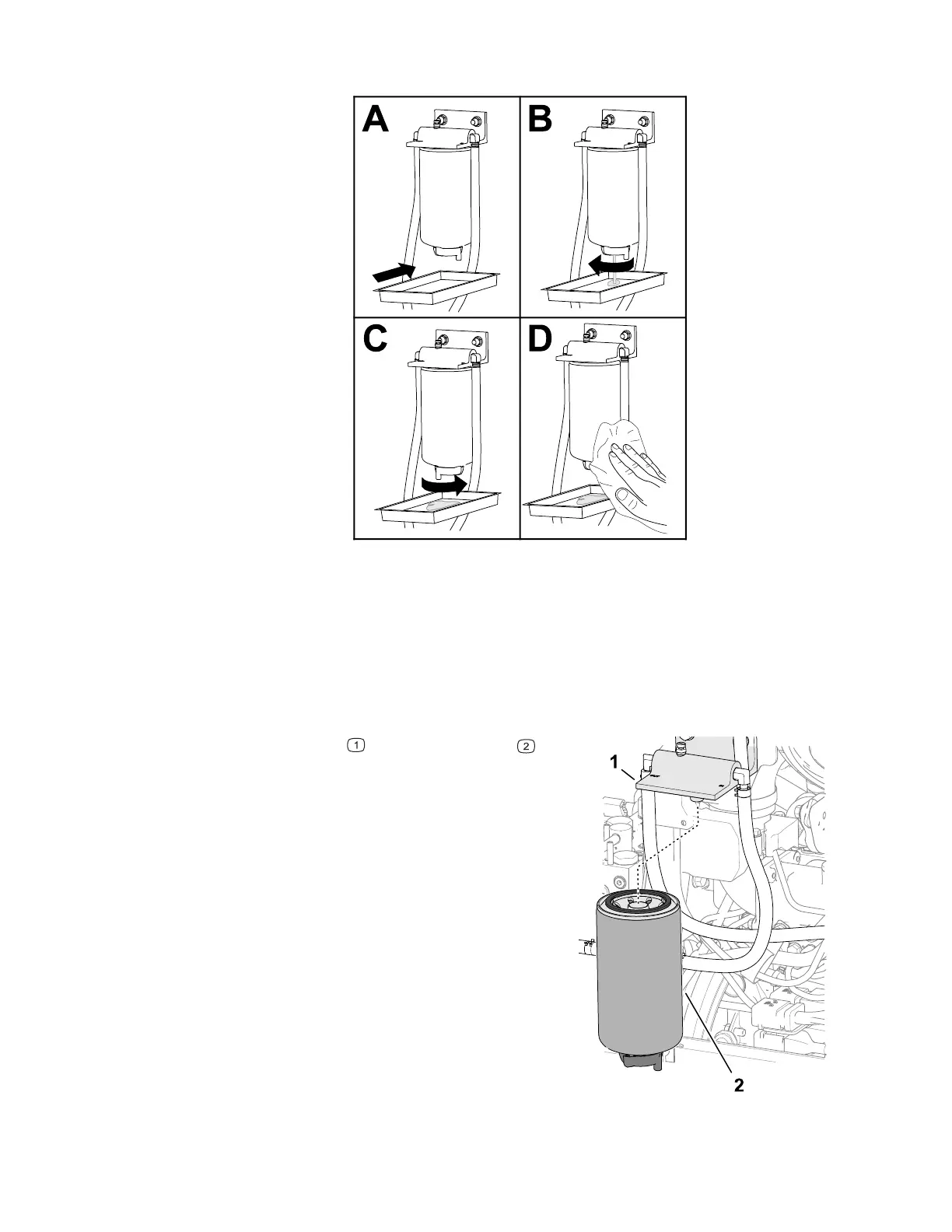

Draining the Fuel/Water Separator (continued)
G452998
3. Start the engine, check for leaks, and shut off the engine.
Note: Repair all fuel leaks.
Replacing the Water-Separator Filter
1. Fully drain the fuel-water separator.
G425089
2. Clean the filter head and filter canister .
3. Remove the filter canister, and clean the
mounting surface of the filter head.
4. Lubricate the gasket on the filter canister with
clean fuel.
5. Install the filter canister by hand until the
gasket contacts the mounting surface, then
rotate it an additional 1/2 turn.
6. Tighten the drain valve at the bottom of the
filter canister.
7. Start the engine and check for leaks.
Note: Repair all leaks.
8. Shut off the engine and remove the key.
9. Close and latch the hood.
3466-702A Page 6–21 Maintenance: Fuel System Maintenance
