Changing the Planetary-Gear-Drive Oil (continued)
2. Install the fill plug and the check plug.

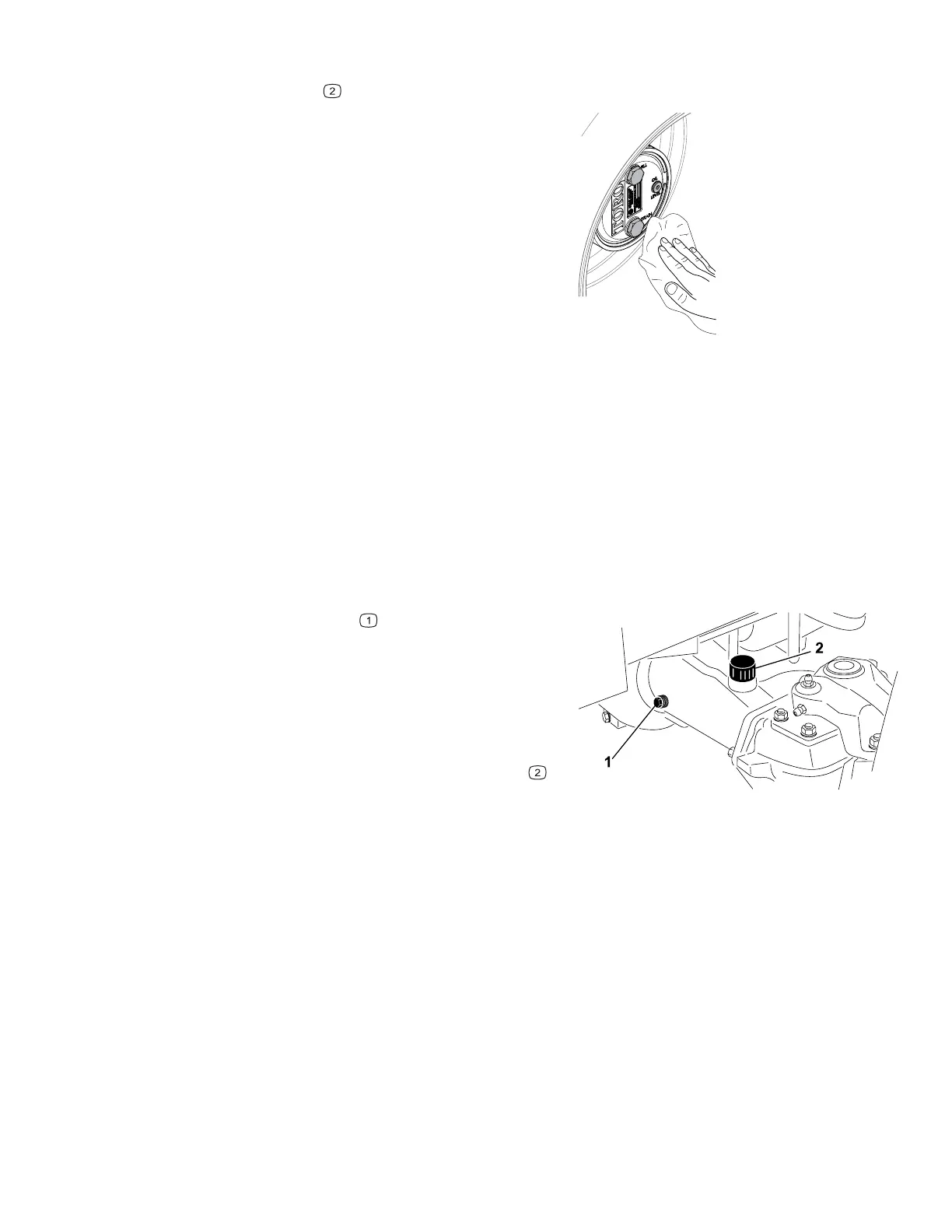

G425215
3. Wipe clean the planetary and brake housings.
4. Drain and fill the planetary-gear-drive on the
other side of the machine.
Inspecting the Rear Axle
Visually inspect the rear axle for leaks. Make all necessary repairs before operating.
Checking the Oil Level of the Rear Axle
Axle Oil Specification: SAE 85W-140 gear oil
1. Prepare the machine for maintenance.
G425336
2. Remove a check plug from the end of the
axle housing.
3. Check the gear oil level in the axle through the
check-plug hole.
Note: The gear-oil level is correct if the oil
level is at the bottom of the check-plug hole.
4. If the gear-oil level low, remove the fill plug
and add the specified gear oil to raise the oil
level to the bottom of the check-plug hole.
5. Install the check plug.
6. If removed, install the fill plug.
Changing the Oil in the Rear Axle
Rear Axle Oil Capacity: 2.4 L (80 fl oz)
3466-702A Page 6–31 Maintenance: Drive System Maintenance
