Seat Controls

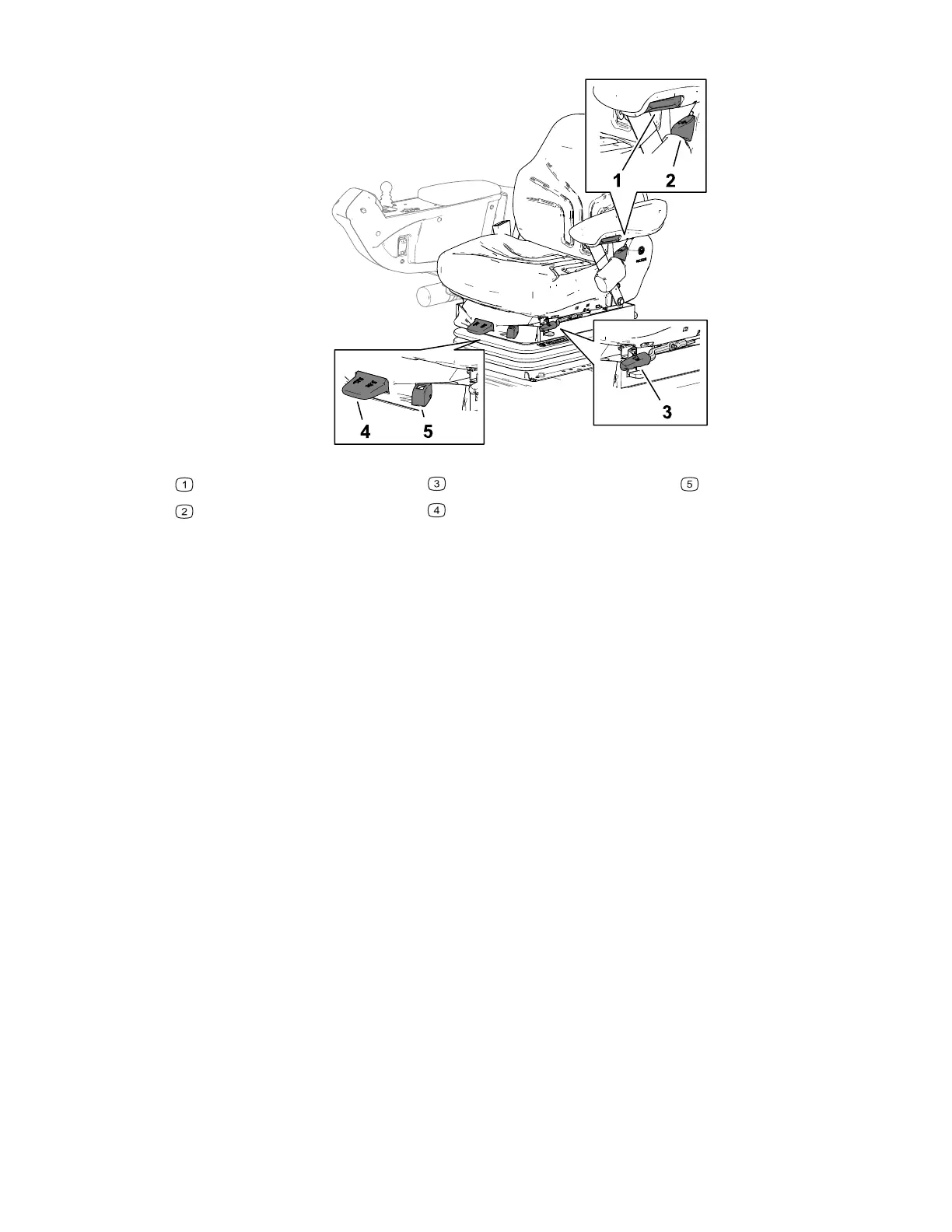

G423842
Armrest adjusting knob
Seat back adjusting lever
Fore and aft adjusting lever
Weight adjusting lever
Weight gauge
Armrest Adjustment Knob
Rotate the knob to adjust the seat armrest angle.
Back Adjustment Lever
Move the lever to adjust the seat back angle.
Forward/Backward Lever
Pull out on the lever to slide the seat forward or backward.
Weight-Adjustment Lever
Adjust the seat to your weight. Pull up on the lever to increase the air pressure and push
down to decrease the air pressure. The proper adjustment is attained when the weight
gauge is in the green region.
Weight Gauge
The weight gauge indicates when the seat is adjusted to the weight of the operator. Height
adjustment is made by positioning the suspension within the range of the green region.
3466-702A Page 4–8 Product Overview: Controls
