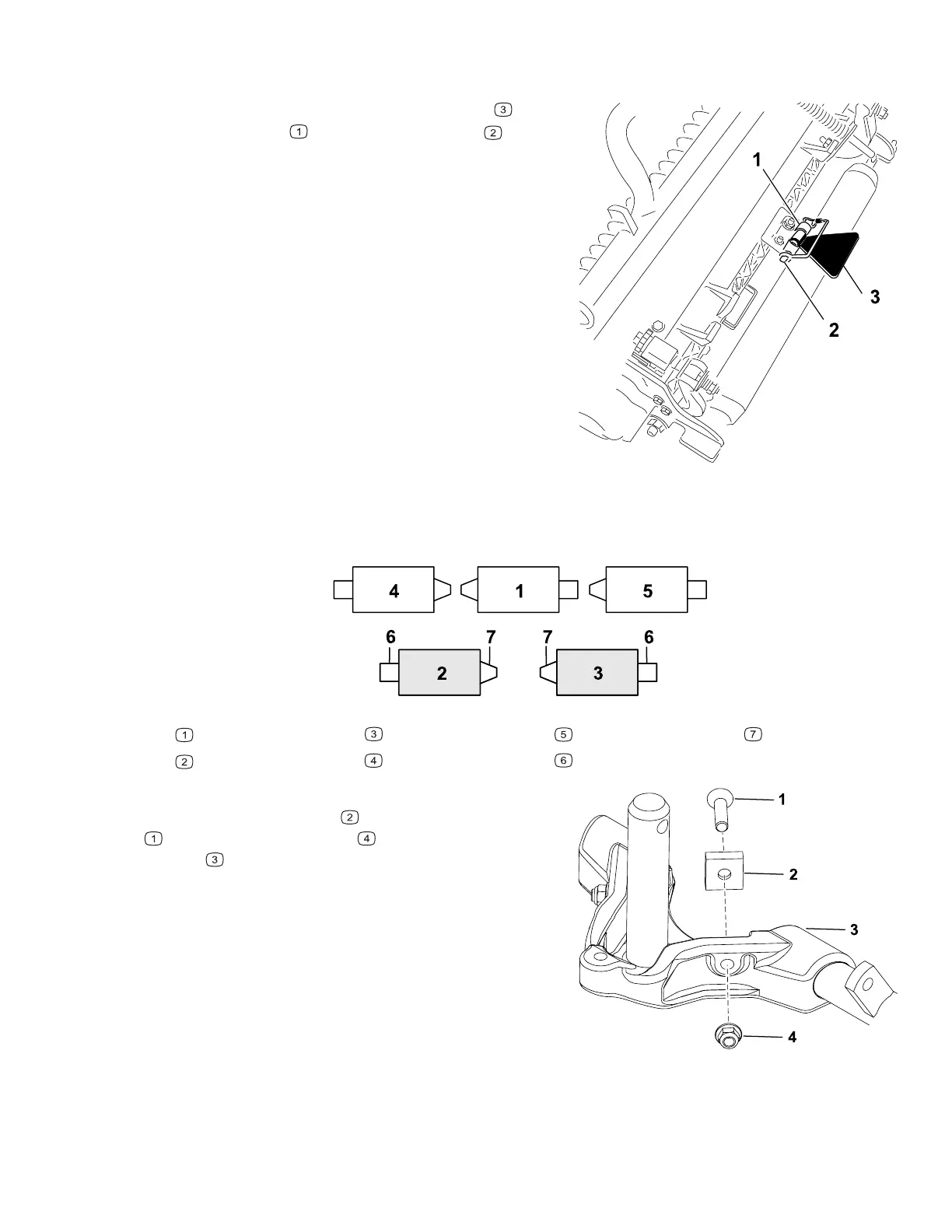

Installing the Kickstand
G411001
For each cutting unit, secure the kickstand to
the chain bracket
with the snapper pin .
Increasing the Rear Cutting Unit Pivot Angle
G419225
Cutting unit 1
Cutting unit 2
Cutting unit 3
Cutting unit 4
Cutting unit 5
Reel motor
Weight
G419226
Increase the pivot angle of the rear cutting units by
removing the 2 spacers
, 2 hex-socket screws
, and 2 flange locknuts from the carrier
frames
of cutting units 2 and 3.
Setup: Installing the Cutting Units Page 3–8 3466-702 A
