Folding the Roll Bar (continued)
3. Support the weight of the upper roll-bar tube while removing roll-bar pins from the pivot
brackets.
4. Carefully lower the upper roll-bar tube until it rests on the stops.
5. Insert the roll-bar pins into the lower holes in the pivot brackets, and secure the roll-bar
pins to the brackets with the lynch pins.

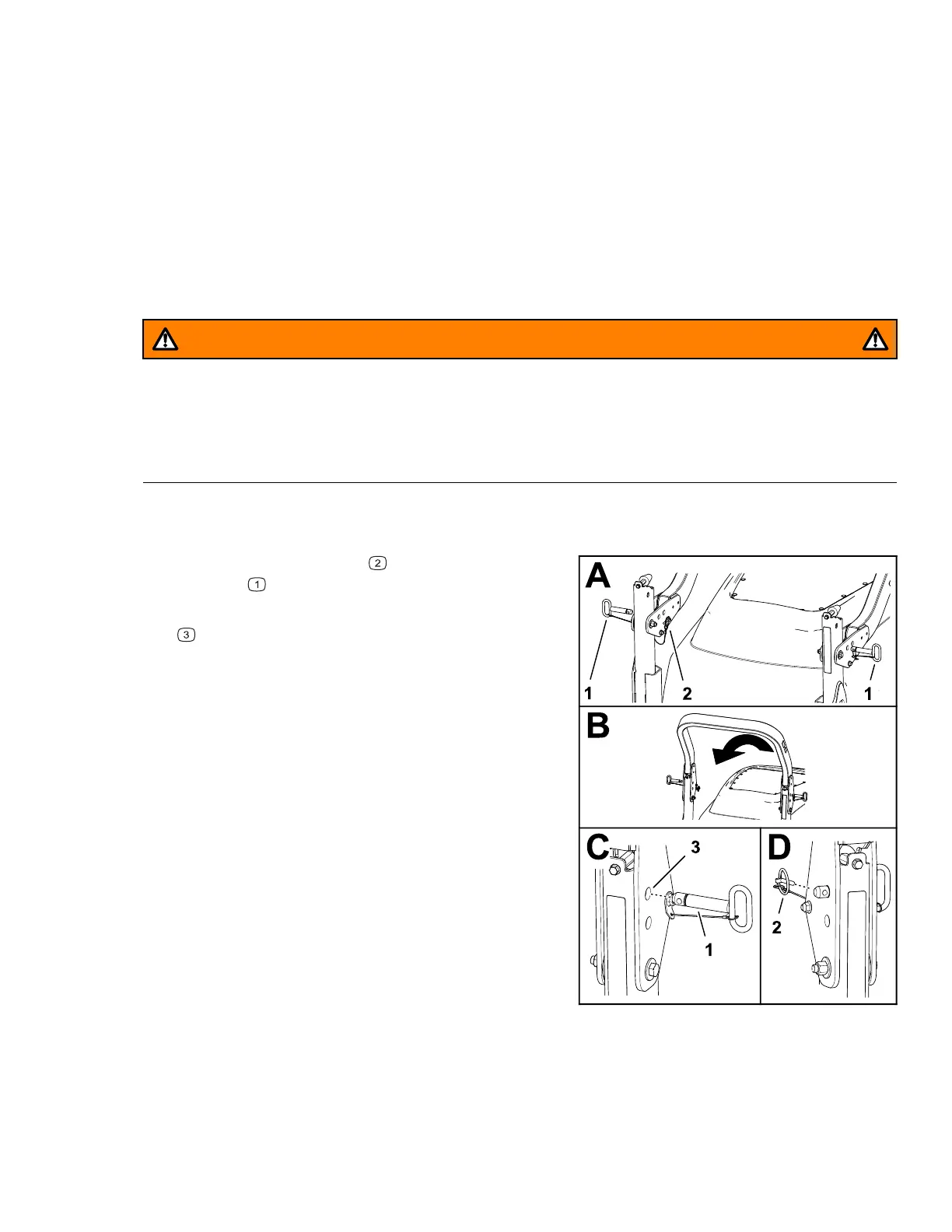

Raising the Roll Bar
WARNING
The ROPS protection system may not be effective if the roll-bar pins are loose, which,
in a rollover, could result in death or serious injury.
When the roll bar is in the raised position, you must install both roll-bar pins and both
lynch pins to ensure full ROPS protection.
1. Park the machine on a level surface, lower the cutting units, engage the parking brake,
shut off the engine, and remove the key.
G424046
2. Remove the lynch pins that secure the roll-
bar pins
at each side of the roll bar.
3. Removing roll-bar pins from the pivot brackets
.
4. Carefully lift the upper roll-bar tube until the
holes in the pivot bracket align with the holes in
the lower roll-bar tube.
5. Insert the roll-bar pins into the holes in the
pivot bracket and lower roll-bar tube.
6. Secure the roll-bar pins to the brackets and
lower roll-bar tubes with the lynch pins.
Operation: During Operation Page 5–20 3466-702 A
