33
1
2

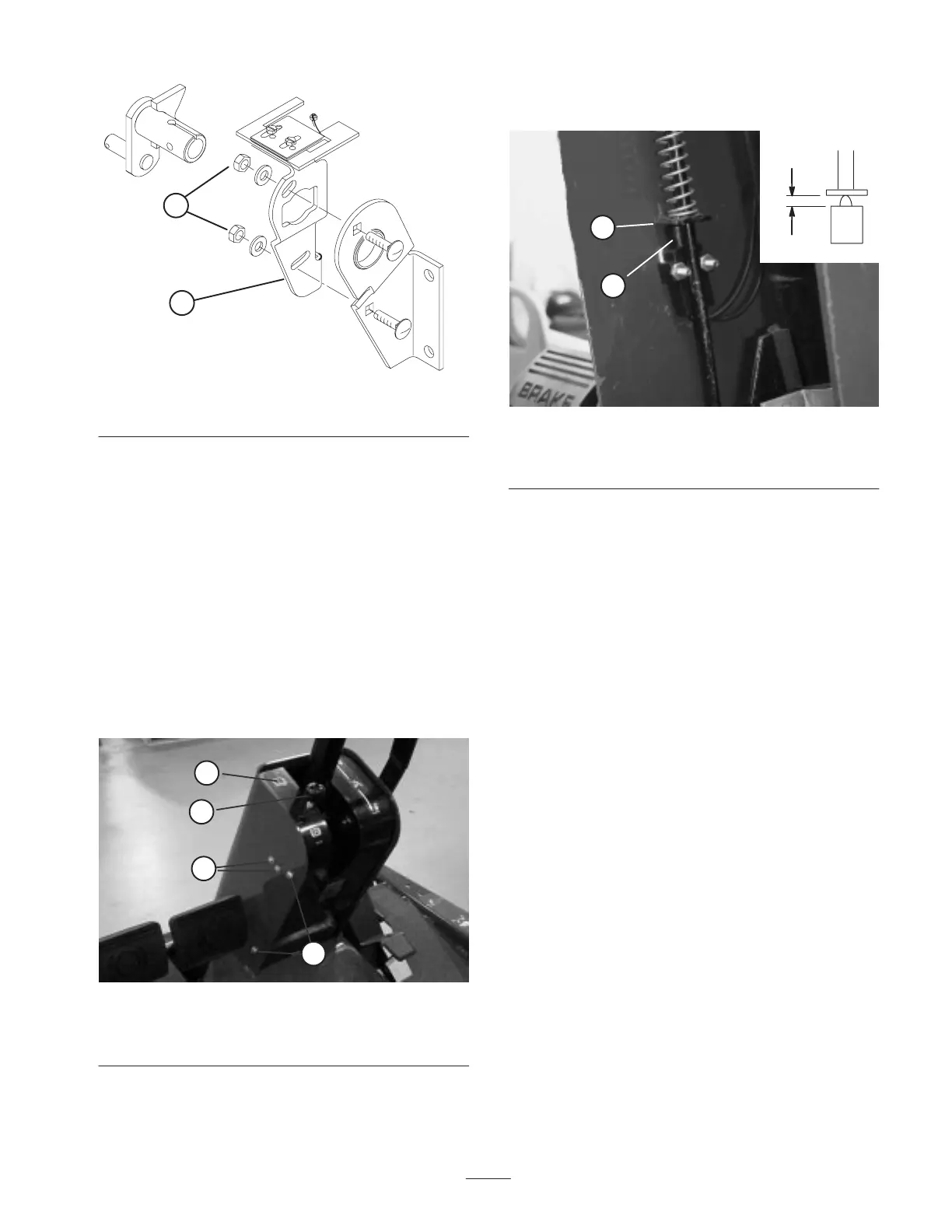

Figure 36
1. Pump plate 2. Locknuts
8. Stop the engine and release right brake. Remove jack
stands and lower machine to the shop floor. Test drive
the machine to be sure it does not creep.
Adjusting the Parking Brake
Interlock Switch
1. Turn engine off and remove the ignition key. Do not
engage the parking brake.
2. Remove knob from parking brake rod and screws from
steering tower cover (Fig. 37).
3. Slide cover up steering shaft to expose parking brake
switch (Fig. 38).
1
2
3
4
Figure 37
1. Steering tower cover
2. Parking brake knob/rod
3. Switch mounting screws
4. Cover mounting screws
4. Loosen screws and nuts securing parking brake switch
to left side of steering tower (Fig. 37).
5. Align parking brake rod paddle with switch plunger
(Fig. 38)
2
1
.030”
Figure 38
1. Parking brake interlock
switch
2. Parking brake rod paddle
6. Press down on parking brake rod and push up on switch
until compressed length of switch plunger is .030”
(Fig. 38, inset) . This the distance between the brake rod
paddle and switch plunger housing.
7. Tighten switch mounting screws and nuts.
8. With parking brake disengaged, the switch circuit
should have continuity. If there is no continuity, move
switch down slightly until there is continuity.
9. Check adjustment as follows:
• Engage the parking brake. Depress the traction pedal
while engine is running and the PTO lever is
disengaged. The engine should stop within 2 seconds. If
engine stops, the switch is operating correctly; thus,
continue operation. If engine does not stop, there is a
malfunction in the interlock system.
10. Install steering tower cover and brake rod knob.
Changing Hydraulic Oil And
Filter
Initially, replace the hydraulic system oil and filter after the
first full day’s operation — NOT TO EXCEED 10
HOURS. Thereafter, replace the filter every 200 hours and
oil every 1000 hours.
The axle housing acts as the reservoir for the system. The
transmission and axle housing are shipped from the factory
with approximately 5 quarts (4.7 l) of high quality
hydraulic fluid. Check the level of hydraulic fluid before
the engine is first started and daily thereafter.
Appropriate hydraulic fluids are listed below.
