34
The following list is not assumed to be all–inclusive.
Hydraulic fluids produced by other manufacturers may be
used if they can cross reference to find an equivalent to the
products listed. Toro will not assume responsibility for
damage caused by improper substitutions, so use only
products from reputable manufacturers who will stand
behind their recommendation.
Universal Tractor Hydraulic Fluid
Mobil Mobil Fluid 424
Amoco 1000 Fluid
Chevron Tractor Hydraulic Fluid
Conoco Power-Tran 3
Exxon Torque Fluid
Pennzoil Hydra–Tranz
Shell Donax TD
Texaco TDH
Note: Fluid to operate the power steering is supplied by the
hydraulic system transmission charge pump.
Cold weather start–up may result in “stiff” operation of the
steering until the hydraulic system has warmed up. Using
proper weight hydraulic oil in system will minimize this
condition.
Note: Many hydraulic fluids are almost colorless, making it
difficult to spot leaks. A red dye additive for the hydraulic
system oil is available in 2/3 oz. (20 ml) bottles. One bottle
is sufficient for 4–6 gal (15–22 1) of hydraulic oil. Order
part no.44–2500 from your authorized Toro distributor.
1. Lower cutting unit to shop floor, set parking brake, and
turn engine OFF. Block the two rear wheels.
2. Jack up both sides of the front axle and support it with
jack stands.
3. Clean the area around the hydraulic oil filter and
remove the filter (Fig. 39).
4. Remove the tube that connects the axle housing to the
transmission and allow the oil to flow into a drain pan.
5. Install new hydraulic oil filter and connect the tube
between axle housing and transmission. Fill axle
(reservoir) to proper level (approx. 5 qt); refer to Check
Hydraulic System Fluid. Remove jack stands.
6. Start engine, cycle steering and lift cylinders, and check
for oil leaks. allow engine to run for about five minute.
Then shut engine off.
7. After two minutes, check level of transmission fluid;
refer to Check Hydraulic System Fluid.
1
2
3

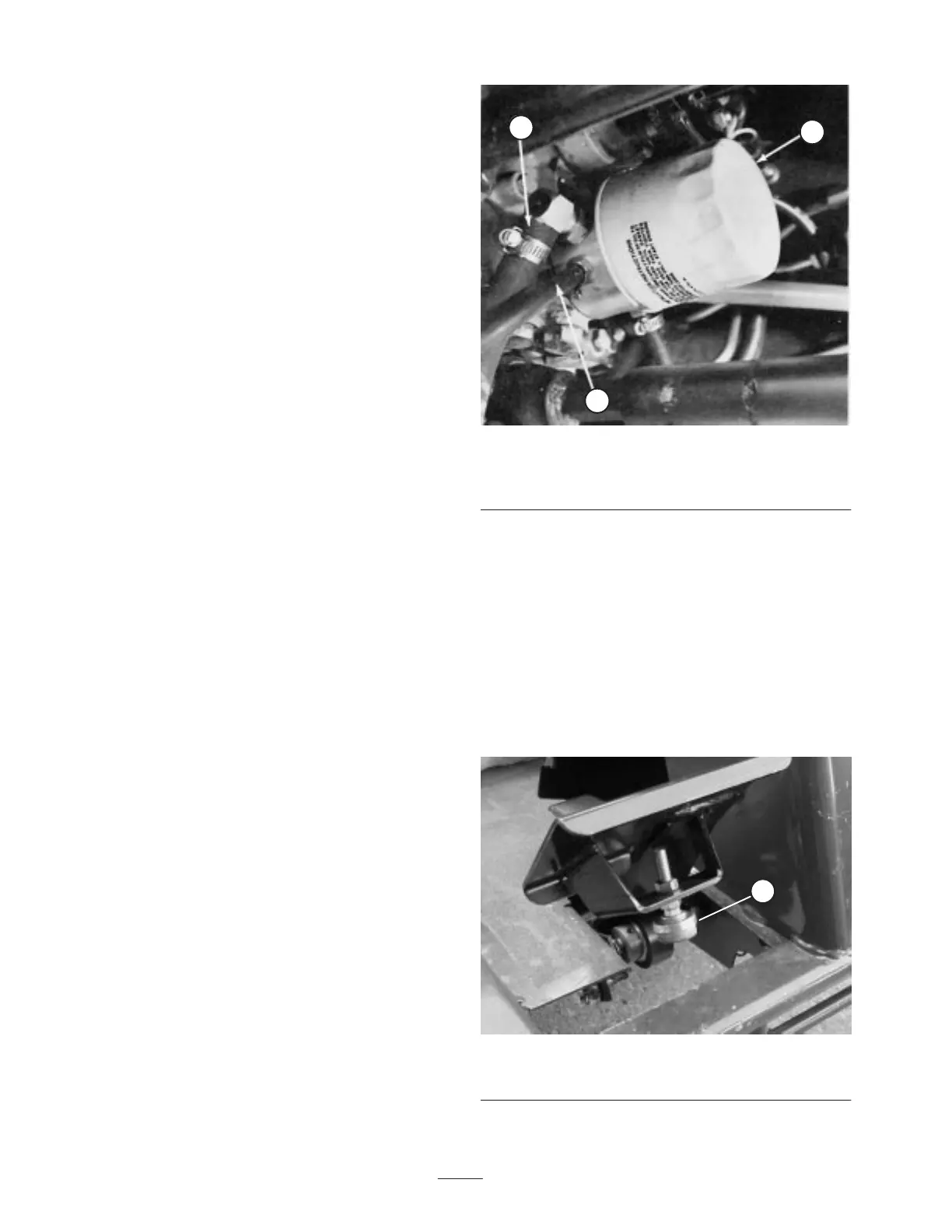

Figure 39
1. Filter
2. Return line
3. Suction line
Adjusting Traction Pedal
The traction pedal can be adjusted for operator comfort or
to reduce the maximum reverse speed of the machine.
1. Check the traction pedal stop adjustment. The pedal
stop (Fig. 40) should contact the frame slightly before
the pump reaches full stroke.
2. To adjust pedal stop, loosen jam nuts, push down on
traction pedal and tighten jam nuts when adjustment is
attained.
1
Figure 40
1. Traction pedal stop
