Toro Groundsmaster 4000 User Manual

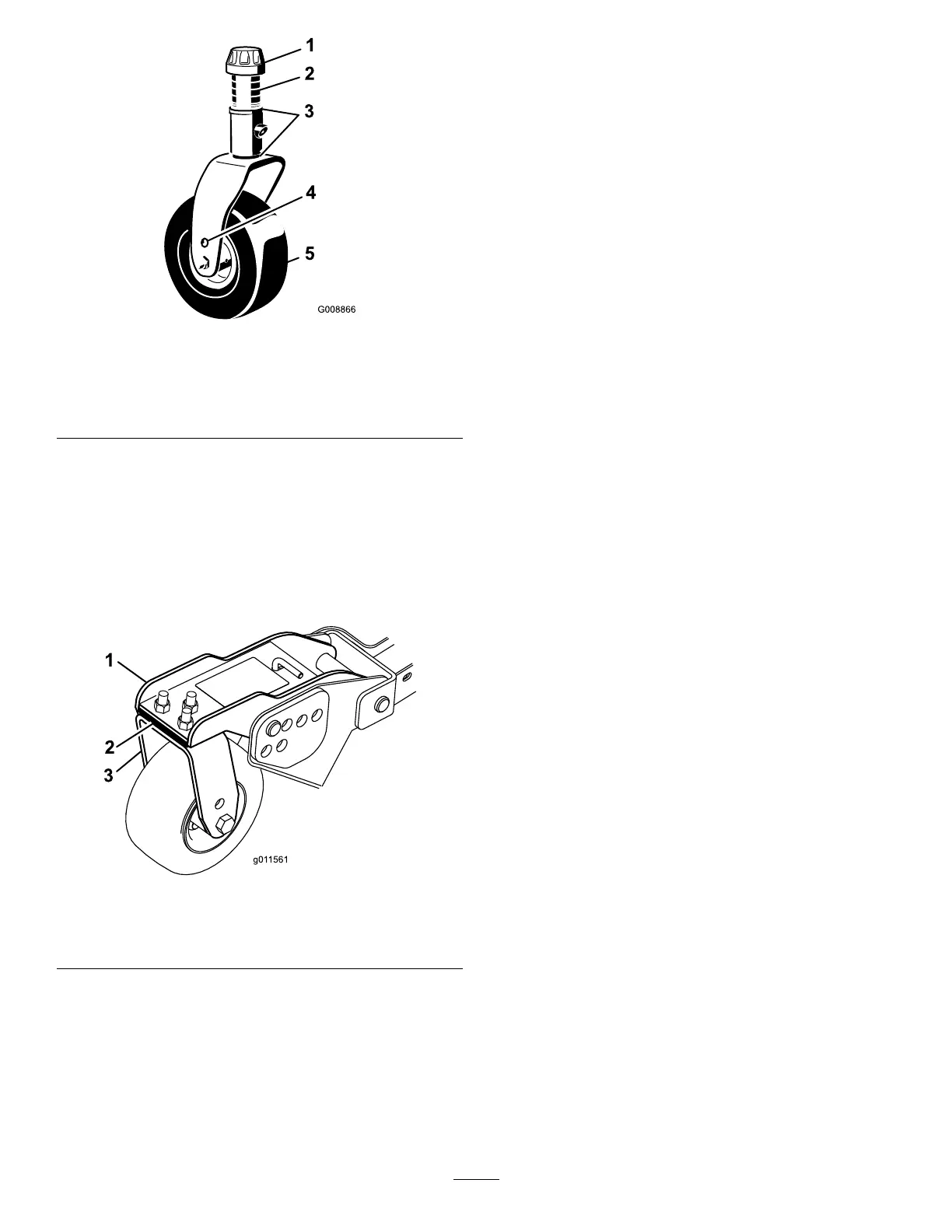

g008866
Figure34
1.Tensioningcap4.Topaxle-mountinghole
2.Spacers5.Casterwheel
3.Shims
SideMowerDeckSetup
Rotatethebladeofeachspindleuntiltheendsface
forwardandbackward.Measurefromtheoorto
thefronttipofthecuttingedge.Adjusttheshimson
frontcasterarm(s)tomatchtheheight-of-cutdecal
(Figure35).Fortheoutsidebladespindleonly,refer
toAdjustingtheFrontMower-DeckPitch(page75).
g011561
Figure35
1.Frontcasterarm
3.Frontcasterfork
2.Shims
MatchingtheHeightofCut
BetweenMowerDecks
1.Positionthebladesidetosideontheoutside
spindleofbothsidemowerdecks.
Note:Measurefromtheoortothetipofthe
cuttingedgeonbothunitsandcompare.These
numbersshouldbewithin3mm(1/8inch)of
eachother.Makenoadjustmentatthistime.
2.Positionthebladesidetosideonthe
insidespindleofthesidemowerdeckand
correspondingoutsidespindleofthefront
mowerdeck.
Note:Measurefromtheoortothetipof
thecuttingedgeontheinsideedgeofside
mowerdecktothecorrespondingoutsideedge
offrontmowerdeckandcompare.Theside
mower-deckmeasurementshouldbewithin3
mm(1/8inch)ofthefrontmowerdeck.
Note:All3mowerdeckcasterwheelsshould
remainonthegroundwithcounterbalance
applied.
Note:Ifadjustmentsneedtobemadetomatch
thecutbetweenthefrontandsidemowerdecks,
maketheadjustmentstothesidemowerdecks
only.
3.Iftheinsideedgeofthesidemowerdeckistoo
highrelativetotheoutsideedgeofthefront
mowerdeck,removeashimfromthebottomof
thefront,insidecasterarmonthesidemower
deck(Figure35).
Note:Checkthemeasurementsbetweenthe
outsideedgesofbothsidemowerdecksand
theinsideedgeofthesidemowerdecktothe
outsideedgeofthefrontmowerdeckagain.
4.Iftheinsideedgeisstilltoohigh,removean
additionalshimfromthebottomoffront,inside
casterarmofthesidemowerdeckandashim
fromthefront,outsidecasterarmoftheside
mowerdeck.
5.Iftheinsideedgeofthesidemowerdeckis
toolowrelativetotheoutsideedgeofthefront
mowerdeck,addashimtothebottomofthe
front,insidecasterarmonthesidemowerdeck.
Note:Checkthemeasurementbetweenthe
outsideedgesofbothsidemowerdecksand
theinsideedgeofthesidemowerdecktothe
outsideedgeoffrontmowerdeckagain.
6.Iftheinsideedgeisstilltoolow,addanadditional
shimtothebottomoffront,insidecasterarm
ofthesidemowerdeckandaddashimtothe
front,outsidecasterarmofthesidemowerdeck.
7.Whenthecuttingheightmatchesattheedges
offrontandsidemowerdecks,verifythatthe
sidemower-deckpitchisstill8to11mm(5/16
to7/16inch).
Note:Adjustasnecessary.
34
