24

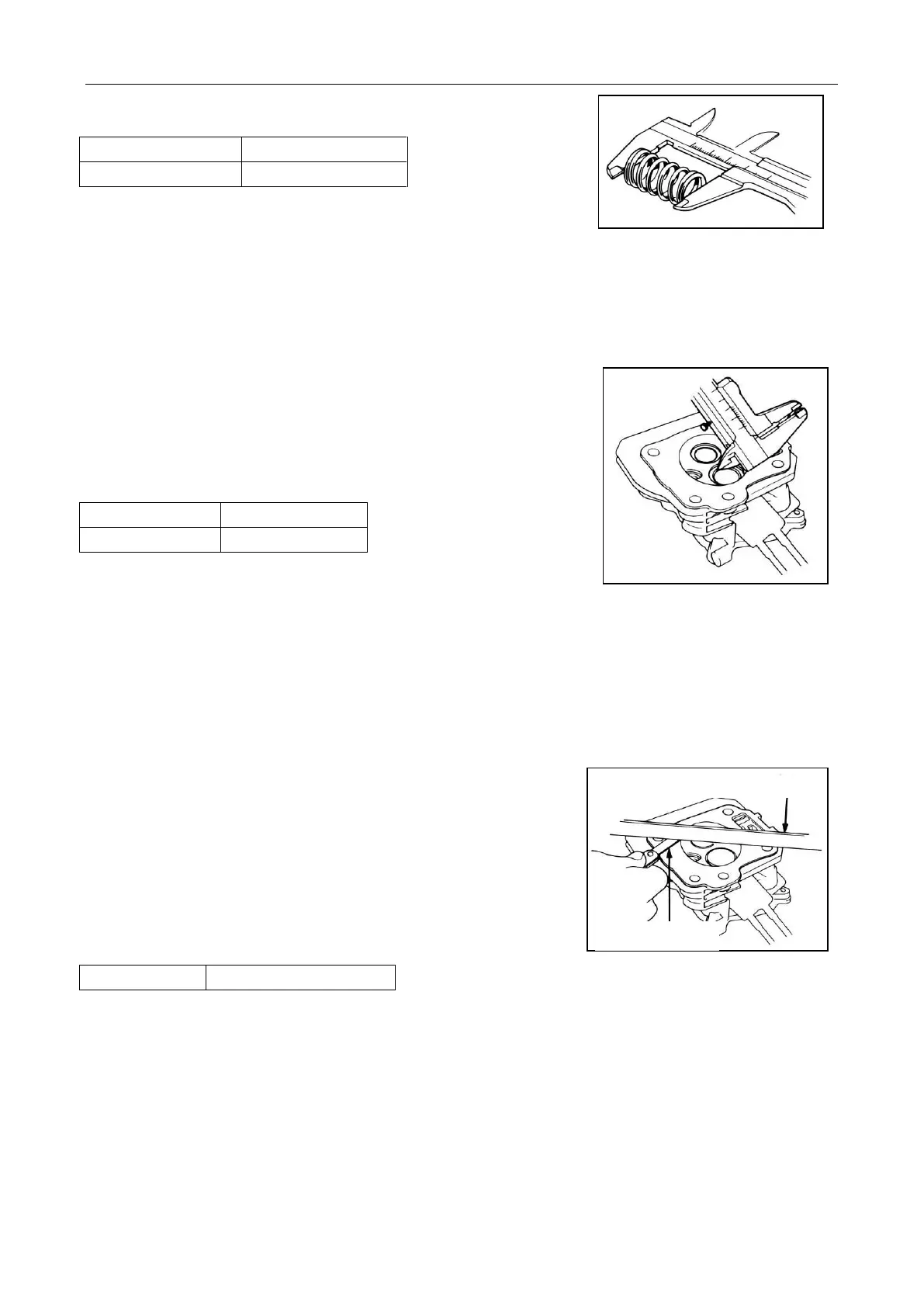

Valve Spring Free Length Specification
Standard
Service Limit
1.2007” (30.5 mm)
1.1417” (29.0 mm)
NOTE: If this measurement is out of specification, complete engine
replacement is required. The only internal parts available for this engine are gaskets and seals.
Valve Seat Width Inspection
Remove carbon deposits from the combustion chamber. Inspect the valve
seats for pitting or other damage.
Valve Seat Width Specification:
Standard
Service Limit
0.0314” (0.8 mm)
0.0787” (2.0 mm)
Cylinder Head Warp Inspection
- Remove carbon deposits from the combustion chamber.
- Clean off any gasket material from the cylinder head surface.
- Check the spark plug hole and valve areas for cracks.
- Check the cylinder head for warpage with a straight edge
and a feeler gauge as shown.
Service Limit
0.00393” (0.10 mm)
NOTE: If this measurement is out of specification, complete engine replacement is required.
The only internal parts available for this engine are gaskets and seals.
STRAIGHT EDGE
FEELER GAUGE
