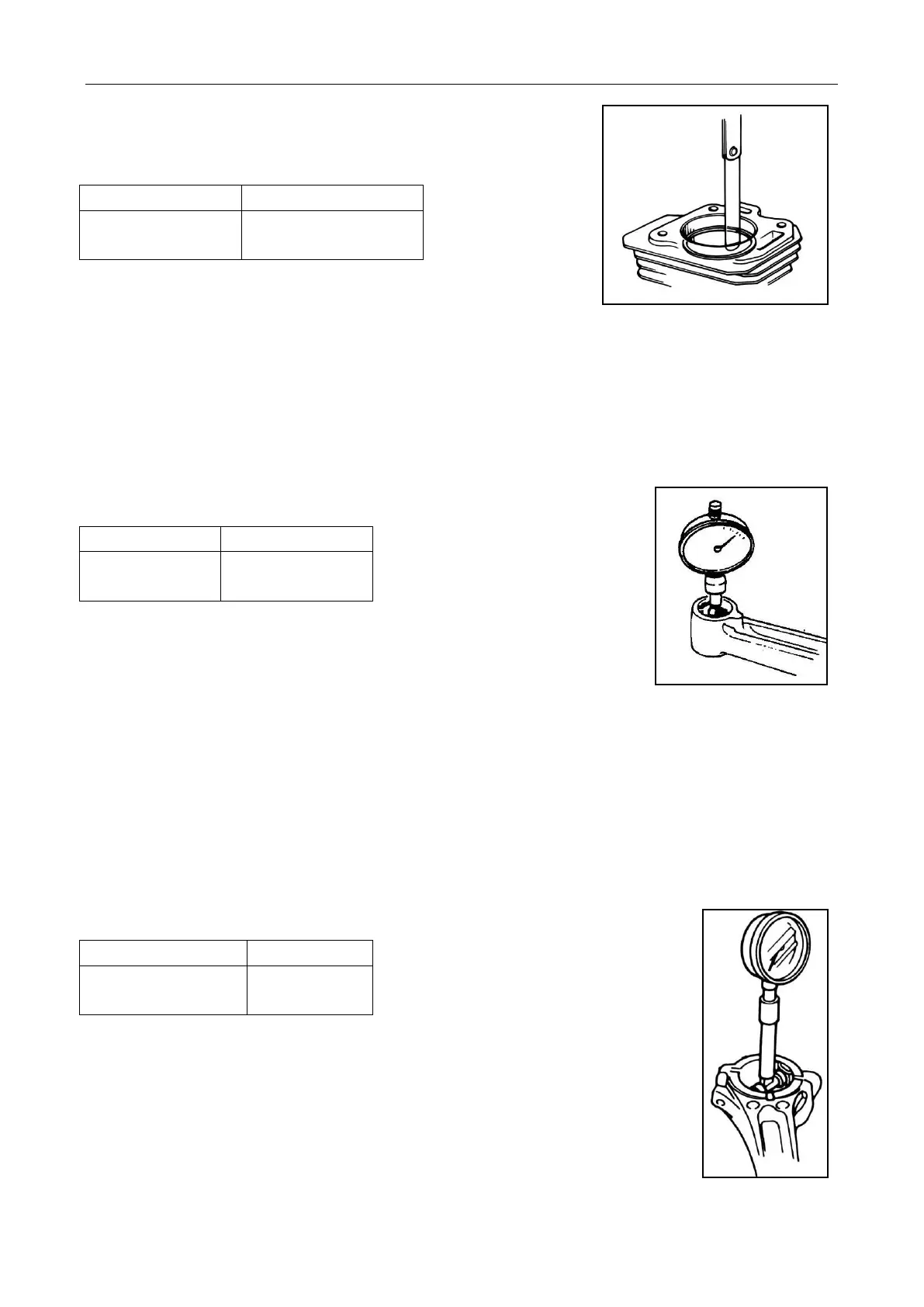

Piston Ring End Gap
Use the piston to position the rings squarely 1” down from the
top of the cylinder.
Standard
Service Limit
0.0078 - 0.0157”
(0.2-0.4 mm)
0.0393”
(1.0 mm)
NOTE: If this measurement is out of specification, complete engine
replacement is required. The only internal parts available for this engine are gaskets and seals.
Connecting Rod Small End ID
Standard
Service Limit
0.5125”
(13.02 mm)
0.5145”
(13.07 mm)
NOTE: If this measurement is out of specification, complete engine replacement
is required. The only internal parts available for this engine are gaskets and
seals.
Connecting Rod Big End ID
Standard
Service Limit
1.0244”
(26.02 mm)
1.0263”
(26.07 mm)
NOTE: If this measurement is out of specification, complete engine replacement is
required. The only internal parts available for this engine are gaskets and seals.
