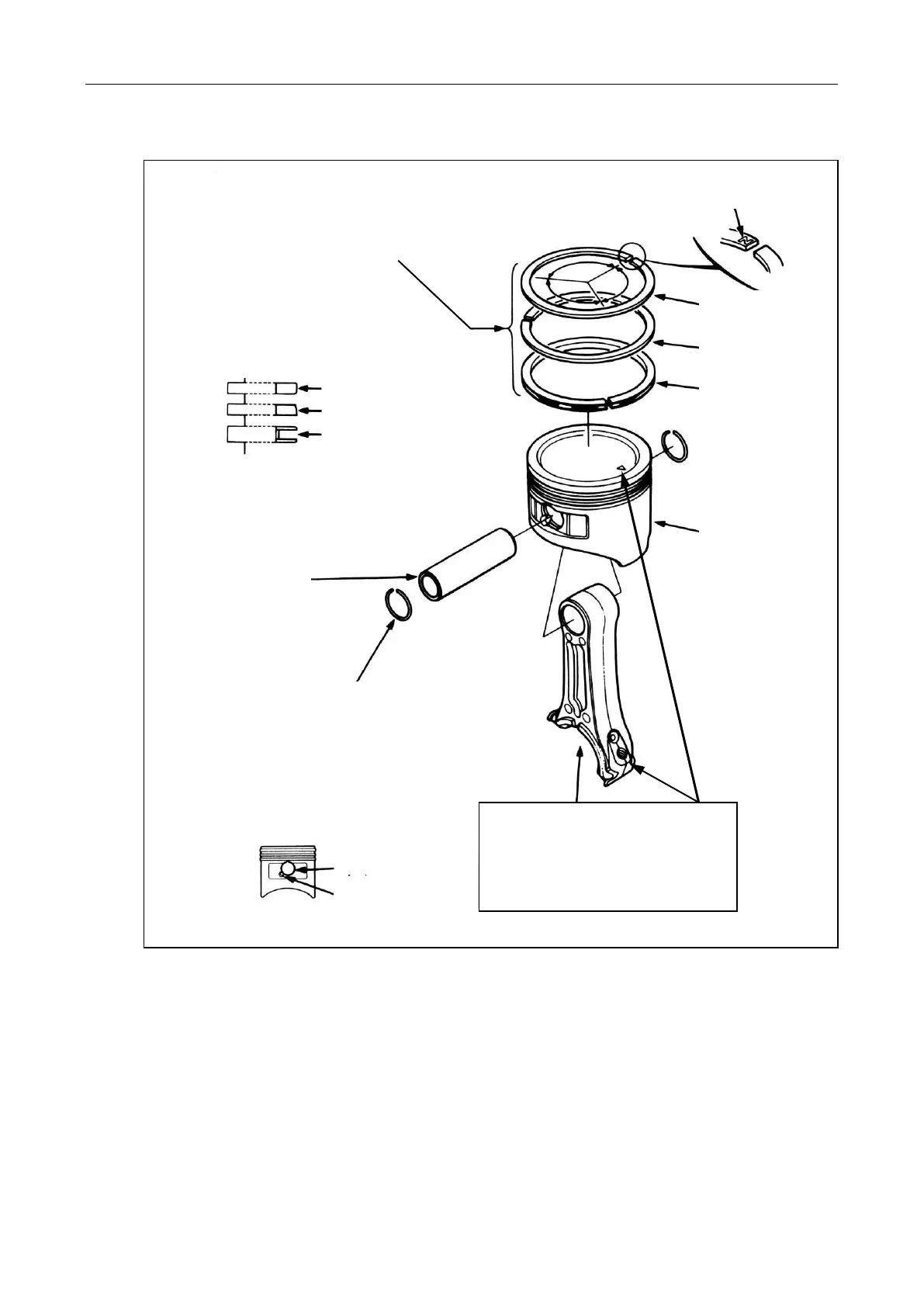

Piston Connecting Rod Exploded View and Service Information
Assembly:
Install Rings with Orientation Mark “UP”
Stagger the piston ring gap as shown:
Top Ring
Second Ring
Oil Ring
Piston
Mark
Top Ring
Second Ring
Oil Ring
Check, refer to
Piston Pin
Piston Pin Circlip:
Install the circlip gap in the
12:00 Position (circlip gap
facing up)
Connecting Rod Orientation
Align Long end of connecting rod
with piston orientation “triangle”
CLIP
CUT-OUT
Assembly:
Install Rings with Orientation Mark “UP”
Stagger the piston ring gap as shown:
Top Ring
Second Ring
Oil Ring
Piston
Mark
Top Ring
Second Ring
Oil Ring
Check, refer to
Piston Pin
Piston Pin Circlip:
Install the circlip gap in the
12:00 Position (circlip gap
facing up)
Connecting Rod Orientation
Align Long end of connecting rod
with piston orientation “triangle”
CLIP
CUT-OUT
