Toro Multi Pro 5800 User Manual

G002246
1

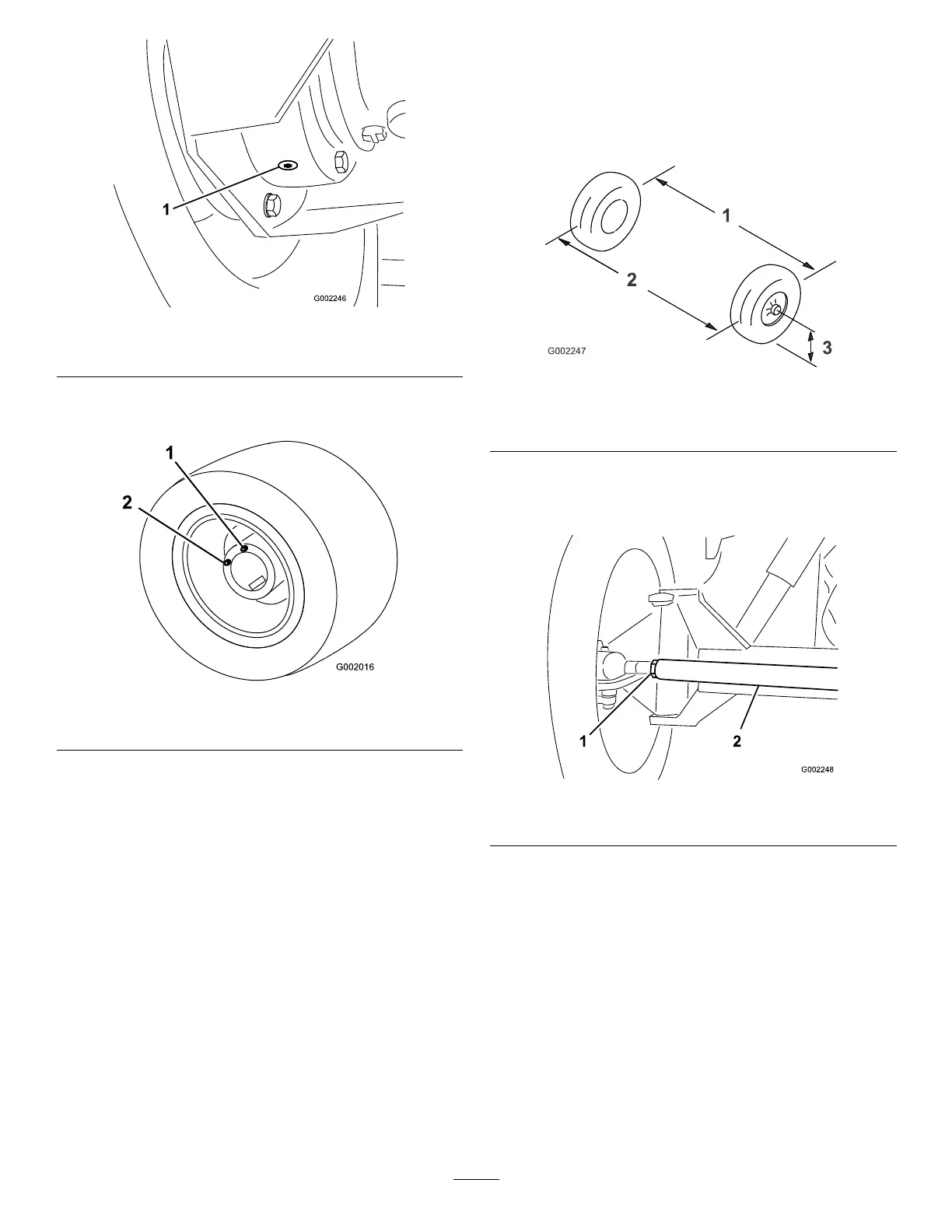

Figure67
1.Innerdrainplug
5.Movethevehicleslowlyuntilthewheelispositioned
forllingasillustratedinFigure68
G002016
1
2
Figure68
1.Upperhole,adduidhere
2.Lowerhole
6.Settheparkingbrake,stopthepump,stoptheengine,
andremovethekeyfromthestarterswitch.
7.PourSAE85W-140weightgearlubeintotheupper
holeuntilitbeginstocomeoutofthelowerhole.
8.Replaceandtightenalldrainplugs.
9.Repeat3through9fortheotherrearwheel.
10.Disposeoftheusedoilatacertiedrecyclingcenter.
AdjustingtheFrontWheel
Toe-in
ServiceInterval:Every200hours/Yearly(whichevercomes
rst)
Thetoe-inshouldbe0to3mm(0to1/8inch).
1.Checkandllalltires;refertoCheckingtheTireAir
Pressure(page22).
2.Measurethedistancebetweenbothofthefronttiresat
theaxleheightatboththefrontandrearofthefront
tires(Figure69).
Thedistancebetweenthefrontofthetiresshouldbe0
to3mm(0to1/8inch)lessthanthedistancebetween
thebacksideofthefronttires.
Figure69
1.Tirecenterline-back3.Axlecenterline
2.Tirecenterline-front
3.Ifthemeasurementdoesnotfallwithinthespecied
range,loosenthejamnutsatbothendsofthetierod
(Figure70).
Figure70
1.Jamnut2.Tierod
4.Rotatethetierodtomovethefrontofthetireinward
oroutward.
5.Tightenthetierodjamnutswhentheadjustmentis
correct.
6.Ensurethatthereisfulltravelofthesteeringwheelin
bothdirections.
52
