Note: Spare height–of–cut spacers may be stored on posts
and retained by a hairpin cotter.
Important All four hairpin cotter pins must be in the
same hole location and with the correct number of spacers
for a level cut.
2
1
3
m-4856
4
m–5230
2
4
1
5

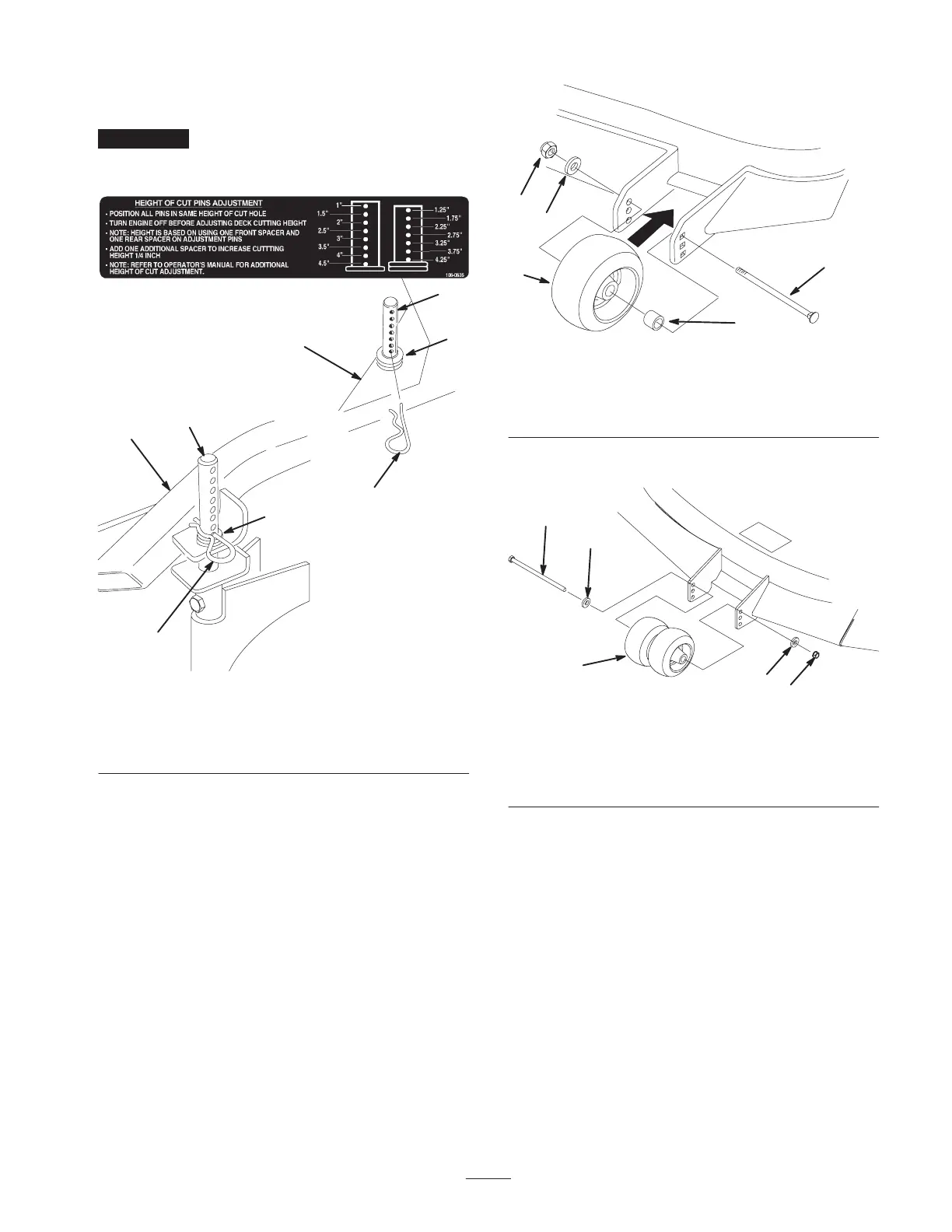

Figure 22
1. Carrier Frame
2. Hairpin Cotter
3. Front height–of–cut post
4. Spacers
5. Back height–of–cut post
Adjusting the Gage Wheels
The gage wheels need to be adjusted in the proper hole
location for each height-of-cut position. There needs to be
3/8 inch (10 mm) minimum clearance above the ground.
1. After adjusting height-of-cut, check the gage wheels so
that there is a minimum of 3/8 inch (10 mm) clearance
above the ground (Figures 23 and 24).
2. If adjustment is needed, remove the bolt, washer(s)
and nut (Figures 23 and 24).
3. Select a hole position so the gage wheels are a
minimum of 3/8 inch (10 mm) off the ground
(Figures 23 and 24).
4. Install the bolt, washer(s) and nut (Figures 23 and 24).
m–6470
2
4
3
5
1
Figure 23
1. Gage wheel
2. Nut
3. Bolt
4. Washer
5. Spacer
1
2
3
4
4
m–6510
Figure 24
1. Center Gage Wheels and
Spacer
2. Nut
3. Bolt
4. Washer
