9

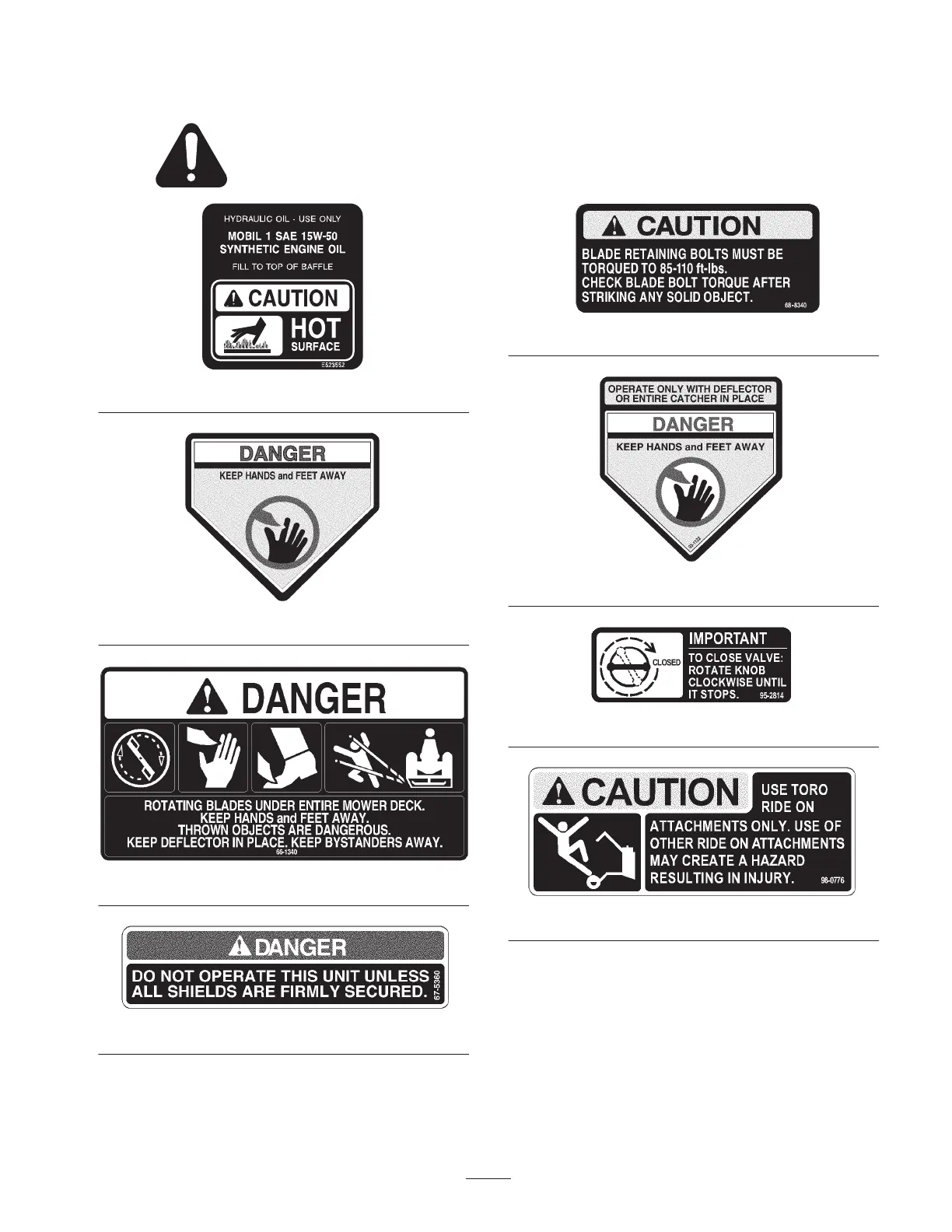

Safety and Instruction Decals
Safety
decals and instructions are easily visible to the operator and are located near any
area of
potential
danger
. Replace any decal that is damaged or lost.
1-523552
43-8480
66-1340
67-5360
68-8340
93-1
122
95-2814
98-0776
8
10
Table of Contents
Table of Contents
2
Introduction
3
Safety
3
Safe Operating Practices
3
Toro Mower Safety
5
Slope Chart
7
Safety and Instruction Decals
9
Gasoline and Oil
12
Recommended Gasoline
12
Using Stabilizer/Conditioner
12
Filling the Fuel Tank
12
Check Engine Oil Level
12
Setup
13
Loose Parts
13
Removing the Shipping Bracket
14
Installing the Handle Assembly
14
Installing the Fuel Tank
15
Installing the Control Rods
16
Installing the Speed Control Rod
17
Installing the Hairpin Cotter Pins and Spacers
17
Checking the Tire Pressure
18
Checking the Hydraulic Fluid and Engine Oil
18
Setting up the Hydro Linkage
18
Operation
19
Think Safety First
19
Controls
19
Starting and Stopping the Engine
20
Operating Neutral Locks
20
Operating the Parking Brake
21
Operating Mower Blade Control (PTO)
21
The Safety Interlock System
22
Driving Forward or Backward
22
Bringing Machine to Neutral Position
23
Stopping the Machine
23
Pushing the Machine by Hand
23
Transporting Machines
24
Using the Side Discharge
24
Adjusting the Height-Of-Cut
24
Adjusting the Gage Wheels
25
Adjusting the Handle Height
26
Maintenance
27
Recommended Maintenance Schedule
27
Servicing the Air Cleaner
28
Servicing the Engine Oil
29
Servicing the Spark Plugs
30
Cleaning the Cooling System
31
Fuse Service
31
Greasing and Lubrication
32
Checking the Tire Pressure
33
Adjusting the Electric Clutch
33
Servicing the Fuel Tank
33
Servicing the Fuel Filter
34
Servicing the Hydraulic System
34
Hydraulic Linkage Adjustments
36
Adjusting the Speed Control Linkage
36
Temporary Neutral Stud Adjustment
38
Adjusting the Hydraulic Control Linkages
38
Adjusting the Neutral Stud
40
Adjusting the Control Rods
41
Adjusting the Tracking
41
Servicing the Brake
42
Servicing the Cutting Blades
43
Correcting the Mower Quality of Cut
44
Frame Set up
44
Checking the Deck Front-To-Rear Pitch
46
Changing the Deck Front-To-Rear Pitch
46
Checking the Deck Side-To-Side Leveling
47
Changing the Side-To-Side Leveling
47
Matching the Height of Cut
47
Replacing the Mower Belt
48
Replacing the PTO Drive Belt
48
Replacing the Caster Wheel Fork Bushings
49
Caster Wheel and Bearings Service
50
Replacing the Grass Deflector
50
Wiring Diagram
51
Hydraulic Diagram
52
Cleaning and Storage
53
Troubleshooting
53
The Toro Total Coverage Guarantee
56
