Before Operating
Note: Determine the left and right sides of the machine
from the normal operating position.
Checking the Engine Oil
The engine is shipped with oil in the crankcase; however,
the oil level must be checked before the engine is first
started.
Crankcase capacity is approximately 8 qt. (7.6 L) with the
filter.
Use high-quality engine oil that meets the following
specifications:
API Classification Level Required: CH–4, CI–4 or
higher.
Preferred oil: SAE 15W–40 (above 0F)
Alternate oil: SAE 10W–30 or 5W–30
(all temperatures)
Toro Premium Engine oil is available from your distributor
in either 15W–40 or 10W–30 viscosity. See the parts
catalog for part numbers.

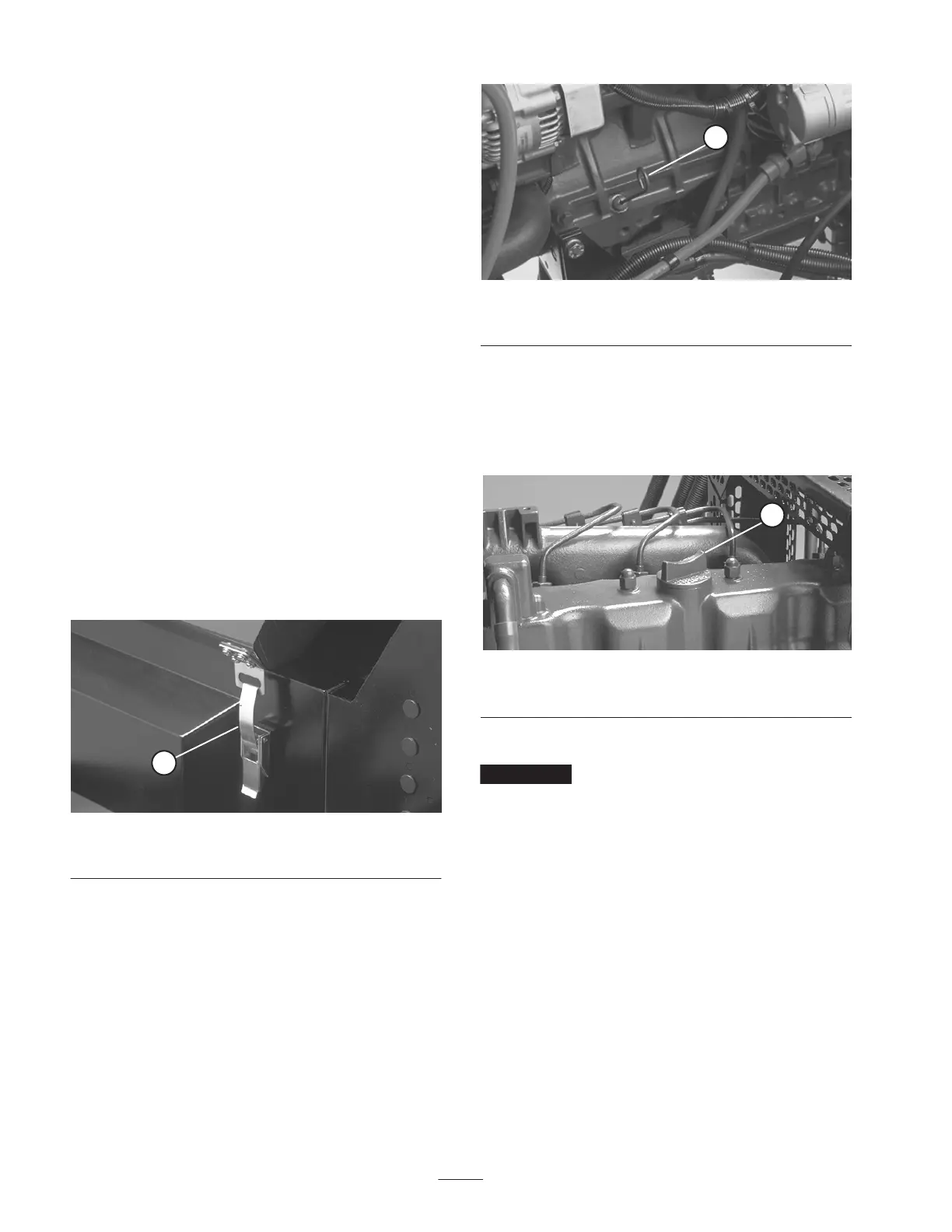

1. Park the machine on a level surface. Release the engine
cover latches (Fig. 2).
1
Figure 2
1. Engine cover latch
2. Open engine cover.
3. Remove dipstick, wipe clean and reinstall dipstick into
tube and pull it out again: Oil level should be up to
FULL mark (Fig. 3).
1
Figure 3
1. Dipstick
4. If oil is below FULL mark, remove fill cap (Fig. 4) and
add oil until level reaches FULL mark. DO NOT
OVERFILL.
Note: When using different oil, drain all old oil from
crankcase before adding new oil.
1
Figure 4
1. Oil fill cap
5. Install oil fill cap and dipstick.
Important Be sure to keep the engine oil level between
the upper and lower limits on the oil gauge. Engine failure
may occur as a result of over filling or under filling the
engine oil.
6. Close engine cover and secure with the latches.
Check Cooling System
Check level of coolant at the beginning of each day.
Capacity of system is 3.7 gal. (14 L).
1. Carefully remove radiator cap (Fig. 6) and expansion
tank cap (Fig. 5).
To Next Page
