35

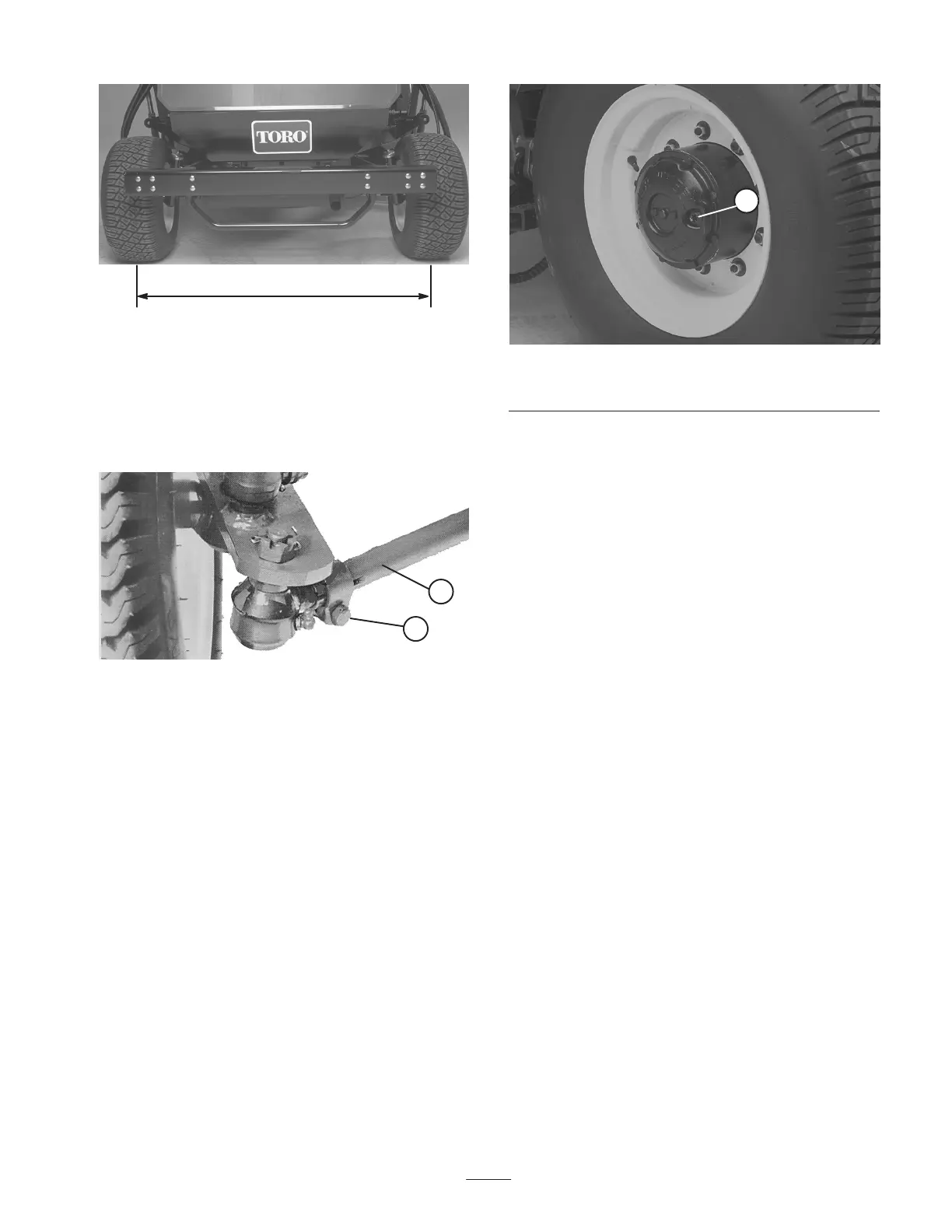

Figure 45
2. Loosen clamps at both ends of tie rods (Fig. 46).
3. Rotate tie rod to move front of tire inward or outward.
4. Tighten tie rod clamps when adjustment is correct.
Note: Make sure tie rod clamps are positioned so they do
not interfere with steering linkage.
1. Clamp 2. Tie Rod
Figure 46
1
2
Checking Planetary Gear Drive
Initially, check oil level after 50 operating hours and check
every 800 hours thereafter. Oil capacity is approximately
30 oz. (885 ml) high quality SAE 80–90 wt. Gear Lube
(ISO 150/220).
1. To check the oil level, the oil should be at the bottom of
the check/drain plug hole (Fig. 47) when the hole is
placed in the 3 o’clock or 9 o’clock position. The
traction unit must be on level ground when making this
check.
1
Figure 47
1. Check/drain plug
Engine Valve Clearance
Adjust every 800 operating hours.
