SAFETY CAB - REAR WINDOW (MODEL 02880) - PARTS LIST
ITEM NO. DESCRIPTION PART NO. QTY ITEM NOTE
1
2
4
5
6
7
8
9
12
5
4
8
9
12
6
7
10
11
14
13
FORWARD TRAVEL
3

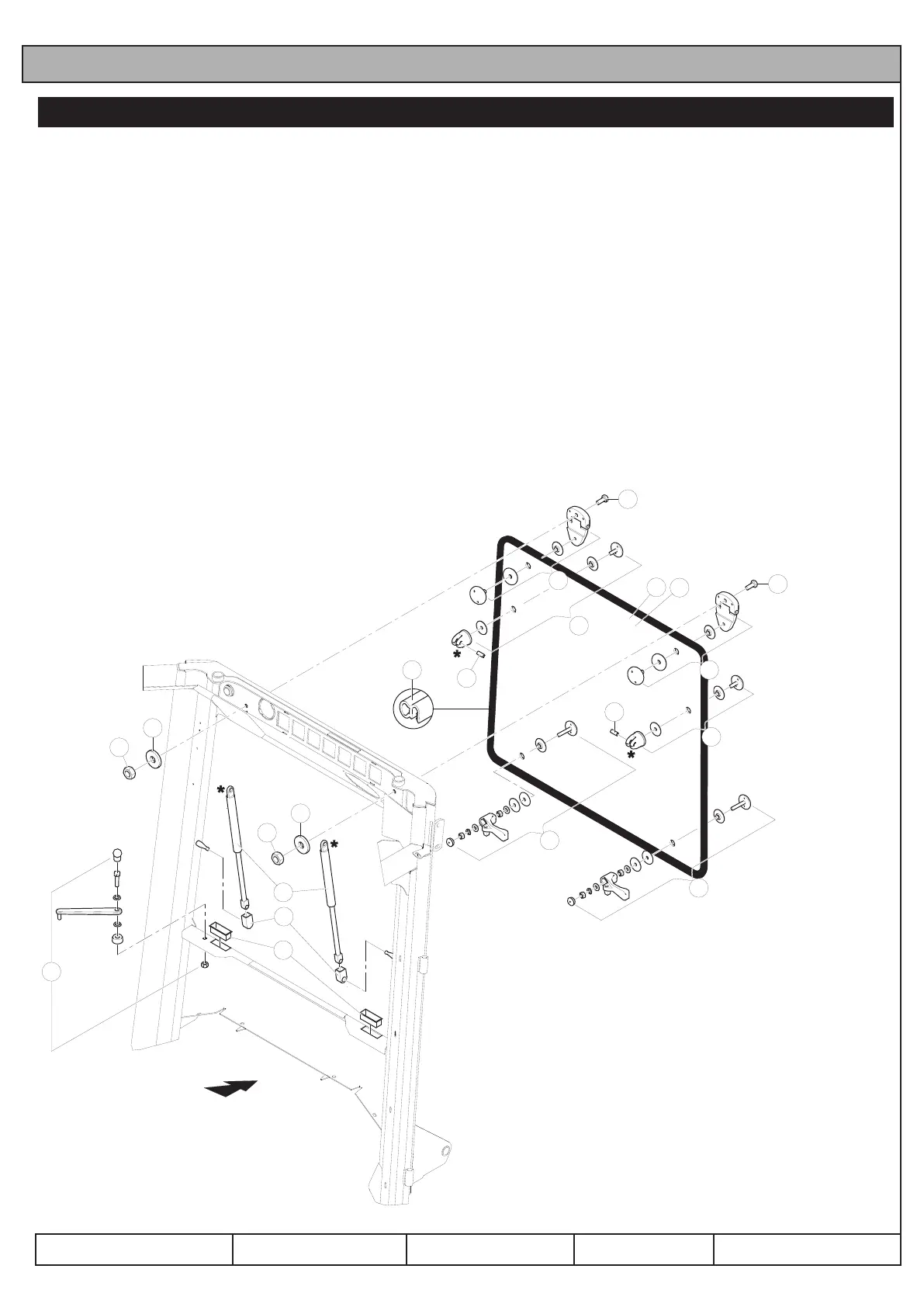

Fig 17
1 GLASS ASSEMBLY 111-1759 1 SET INCLUDE 2 & 3
2 GLASS 964220 1
3 GASKET 111-1738 1 2.5m
4 HINGE 964150 2 SET
5 SCREW M8*25 03162 2
6 NUT M8 09441 2
7 WASHER M8 ZWP1H000U 2
8 GAS STRUT MOUNTING 111-1756 2 SET
9 CLAMPING SLEEVE 964227 2
10 GAS STRUT 964228 2
11 BRACKET 964208 2
12 BUCKLE 964230 2 SET
13 HOLDER 964111 1 SET
14 INSERT PIECE 111-1747 2
