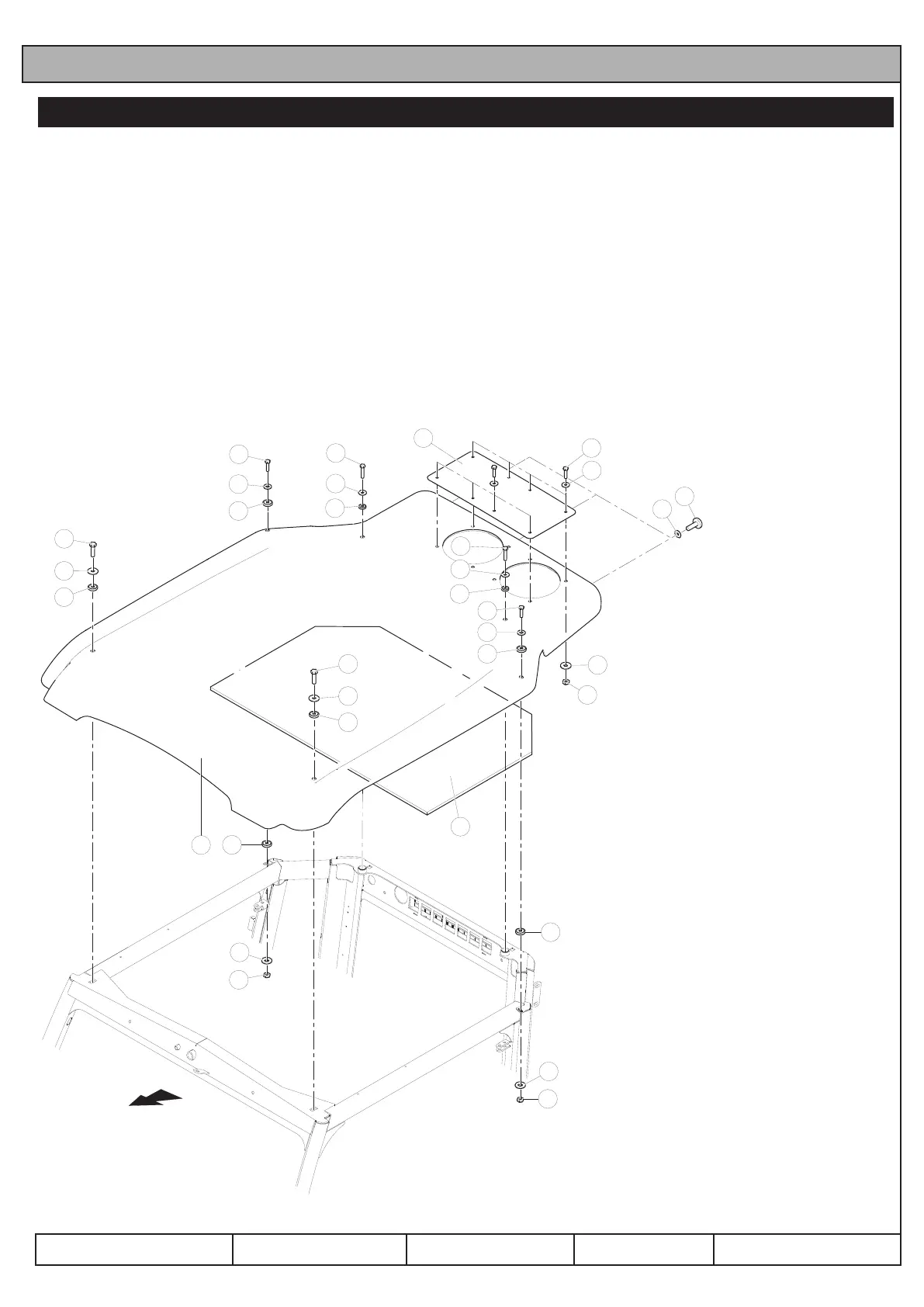

SAFETY CAB - ROOF (MODEL 02880) - PARTS LIST
ITEM NO. DESCRIPTION PART NO. QTY ITEM NOTE
1
2
3
4
5
6
7
9
10
12
13
6
6
6
7
9
6
3
6
6
2
3
11
7
8
10
6
7
8
5
10
5
10
FORWARD TRAVEL
1 COVER 111-1671 1
2 WASHER M6 09472 16
3 SCREW M6*25 09364 10
4 ROOF 111-1685 1
5 NUT M6 09438 10
6 WASHER M6 964131 8
7 WASHER M8 964130 4
8 SCREW M8*40 ZDH1H040U 2
9 SCREW M8*30 09369 2
10 WASHER M8 ZWP1H000U 4
11 WASHER M4 09658 3
12 SCREW 3.5*16 SELF TAP 111-1688 3
13 FOAM PAD 111-1668 1
Fig 21
