Issued: 01.04.11 Approved: Mod. No. 5060358 Sheet 37 of 64 Part No. 111-4431 (A)
SAFETY CAB GENERAL ASSEMBLY - 2 POST ROPS REMOVAL (If applicable)
This cab is a fully tested ROPS cab and is approved to Directive
79/622/EEC as amended. Remove existing ROPS:
1. Support the ROPS by a safe manner. Remove securing bolts
and ensure that is safely supported using the harness to hold
the weight.
2. Remove the bolts securing the front hoop to the chassis.
3. Remove the front ROPS hoop.
4. Remove the two bolts each side that x the ROPS to the fuel
tank supports.
5. Remove the bolts that secure the lower section of the ROPS
to the brackets xed to the chassis.
6. Remove the complete ROPS frame.
The platform latch must be removed, refer to step 7 below.
7. Remove the platform latch retaining spring. Unbolt the latch
pivot plates and remove the latch rod and handle. Replace
the latch pivot plates in their original position. Refer to Fig
28.

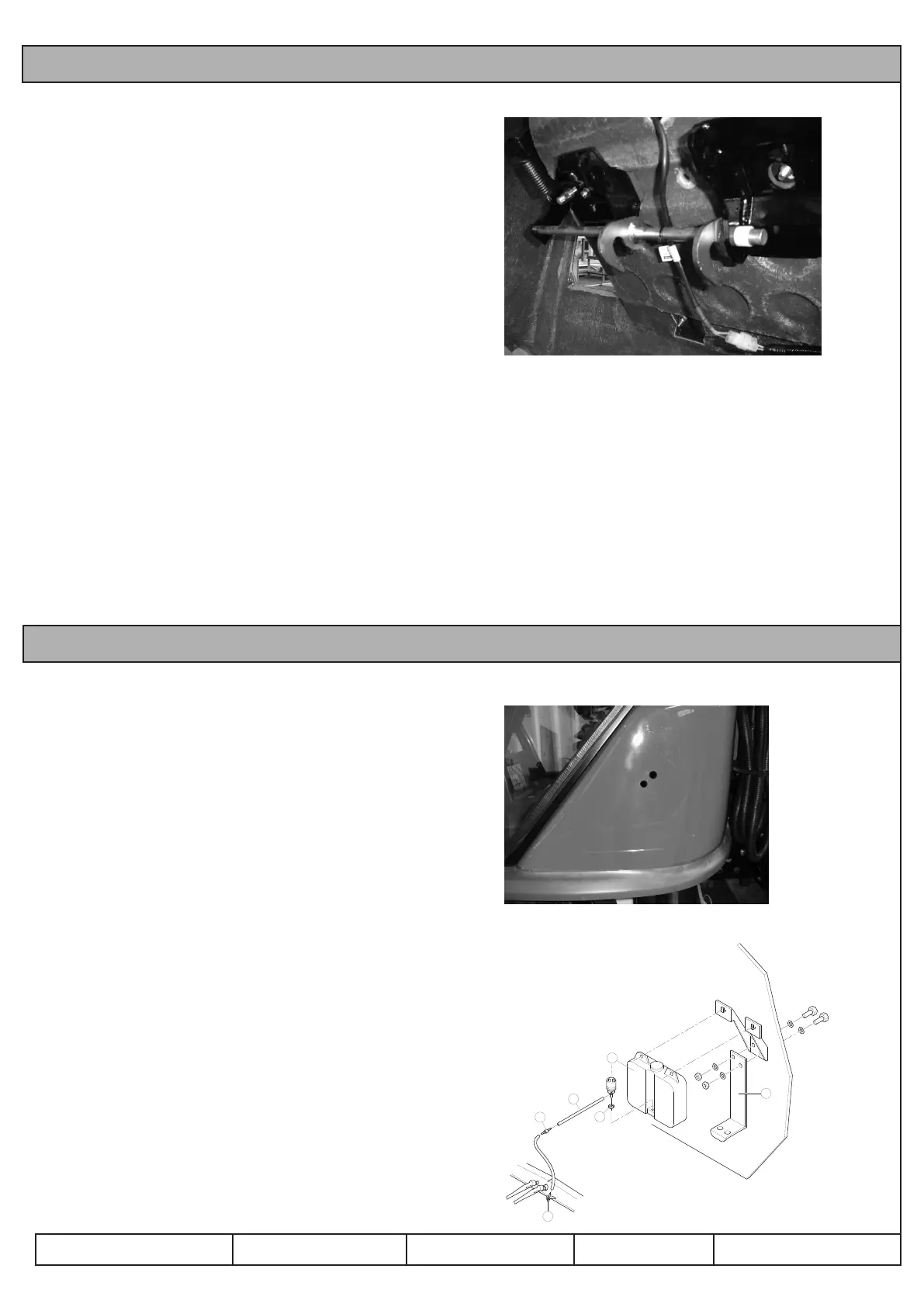

Fig 28
SAFETY CAB GENERAL ASSEMBLY -WATER BOTTLE ASSEMBLY
8. Use the template provided with this manual, (Refer to page
43) and drill 2*5.5mm diameter holes in the rear LH side of
the platform. Refer to Fig 29.
9. Fit the washer bottle mounting bracket with the M5 set
screws, nuts and washers provided. Fit the washer bottle
assemble to the mounting bracket using the xing screws
provided. Refer to Fig 30.
Fig 29
Fig 30
To Next Page
