Toro T4240 Instruction Manual & Parts List

Issued: 01.04.11 Approved: Mod. No. 5060358 Sheet 42 of 64 Part No. 111-4431 (A)
SAFETY CAB GENERAL ASSEMBLY - ASSEMBLY Continued

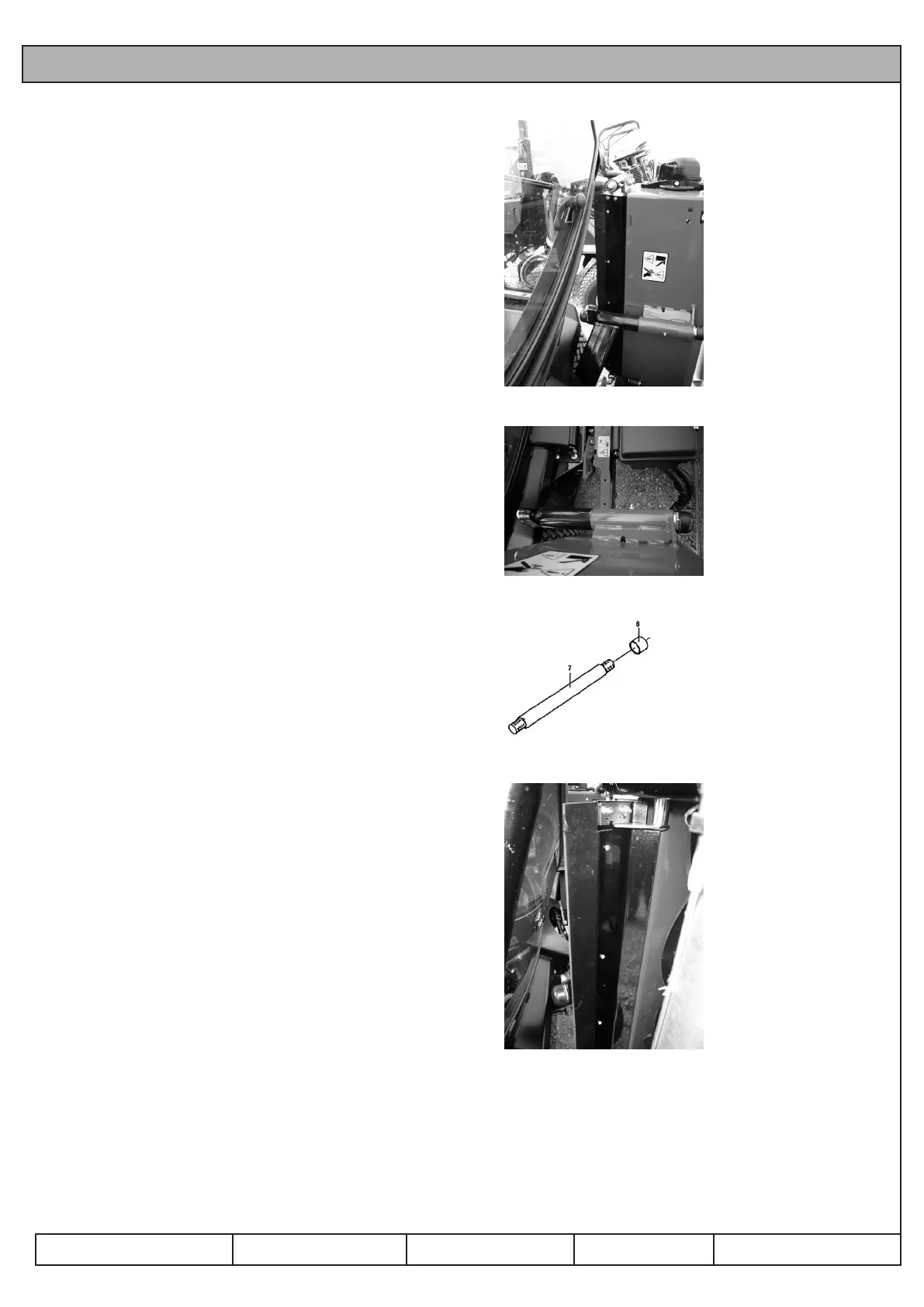

40. For 200 mm MK3 cutterheads proceed as follows:
- Remove the nut caps, M24 nuts and washers which retain
each of the front cutterheads and slide both assemblies
forward to dismount them from the suspension pins.
Refer to Figs 45, 46 and 47.
- Remove both suspension pin assemblies.
- Remove the nut caps, M24 nuts and pin retainers from
the suspension pins and ret them to longer suspension
pins supplied. Refer to Fig 47.
- Ret the longer suspension pin assemblies to the front
suspension arms.
- Assemble the spacers supplied and ret the cutterheads.
- Re-assemble the M24 nuts, washers and tighten securely.
Ret the nut caps. Refer to Fig 48.
Torque settings:
Tighten all the fasteners to the recommended torques shown
below:
M8 Fasteners 23Nm M12 Fasteners 75Nm
M10 Fasteners 43Nm M16 Fasteners 190Nm
Fig 45
Fig 46
Fig 47
Fig 48
