5.5 Cabling
e laid 2-core cable is installed for the electrical connection of the TS120 impact sprinkler.
e cable is pulled through the right or left opening on the bottom of the housing into the
cable compartment.
e DBR/Y-6 cable connector kit (article no.:
ZH90032) for connecting the control cable to the
coil tted inside the sprinkler.
Open the cover of the cable compartment and
connect the solenoid cable. Please use the DBR/Y-6
connector kit for the connection.

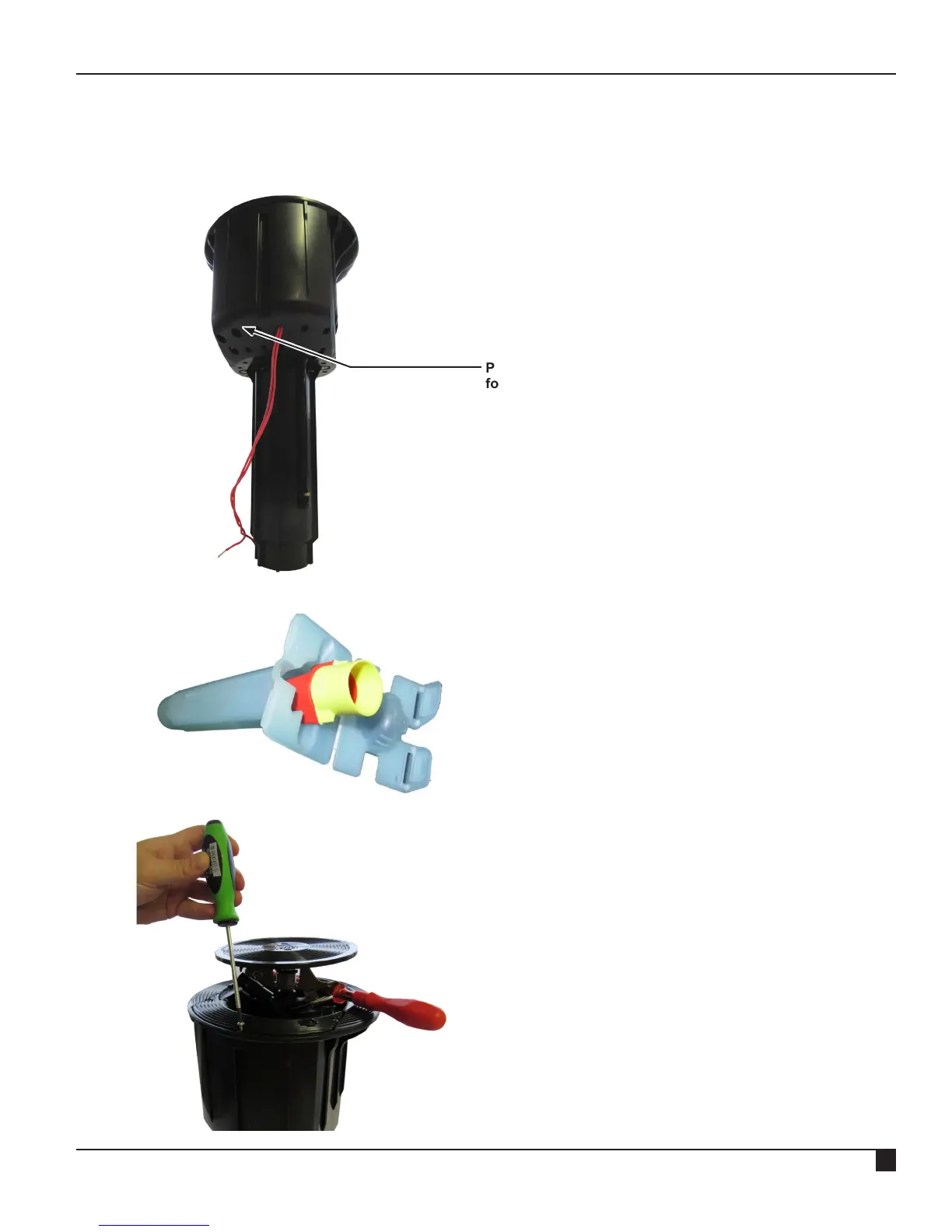

Possible location
for pulling in the control cable
into the sprinkler
