8.5 Removal / installation of the control unit
Ensure sprinkler is not under pressure.

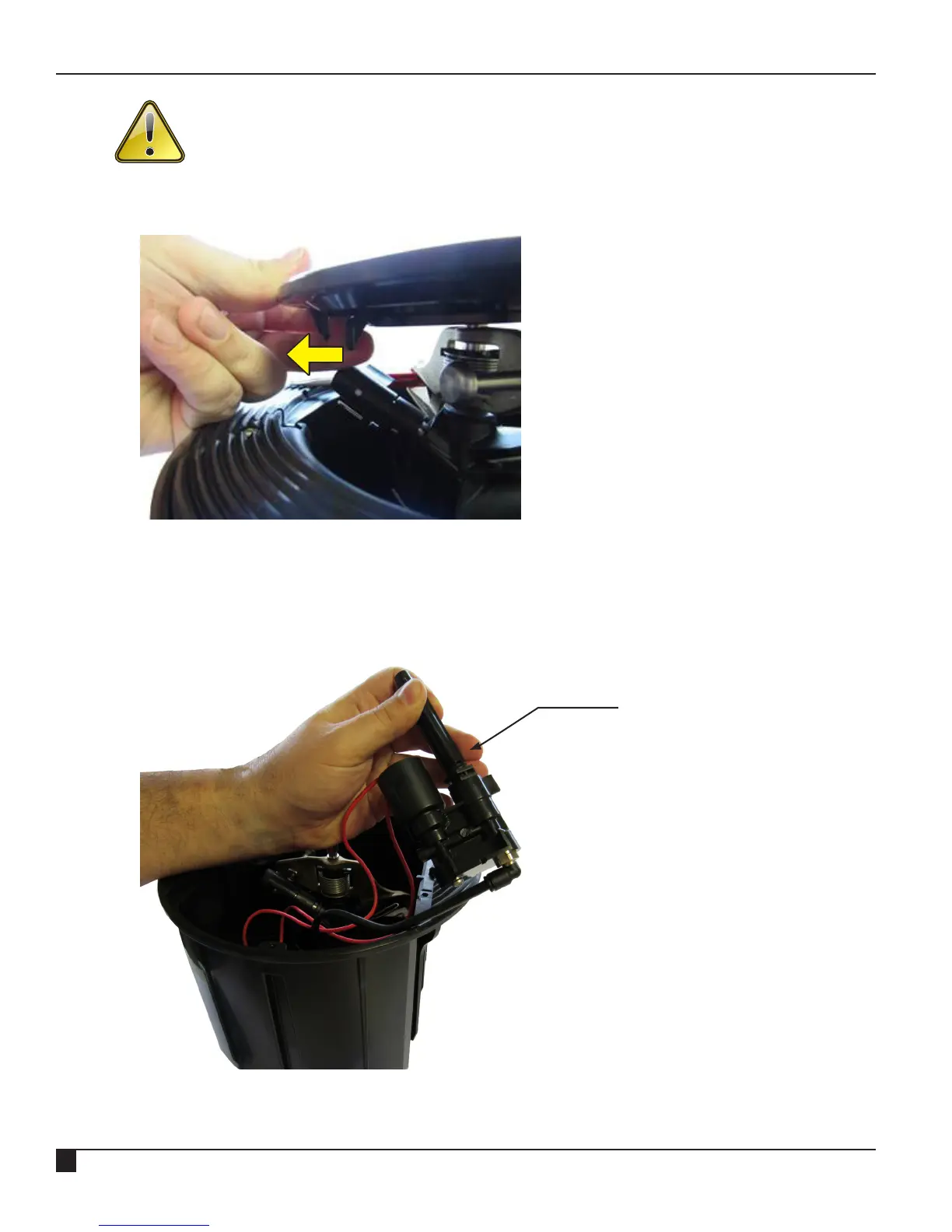

Taking out the control unit
• Lift the cover and secure the insert with a screw driver against snapping back. en clip o the cover.
• Unscrew all 3 locking screws (2 screws at TC version) and take o cable compartment cover.
• Unclip control unit from protective casing and lift up.
• Twist out coil.
• When replacing the control unit, press back the clamp ring at the plug-in connector and
pull out the hose.
Control unit
