Toro Workman MD Service Manual

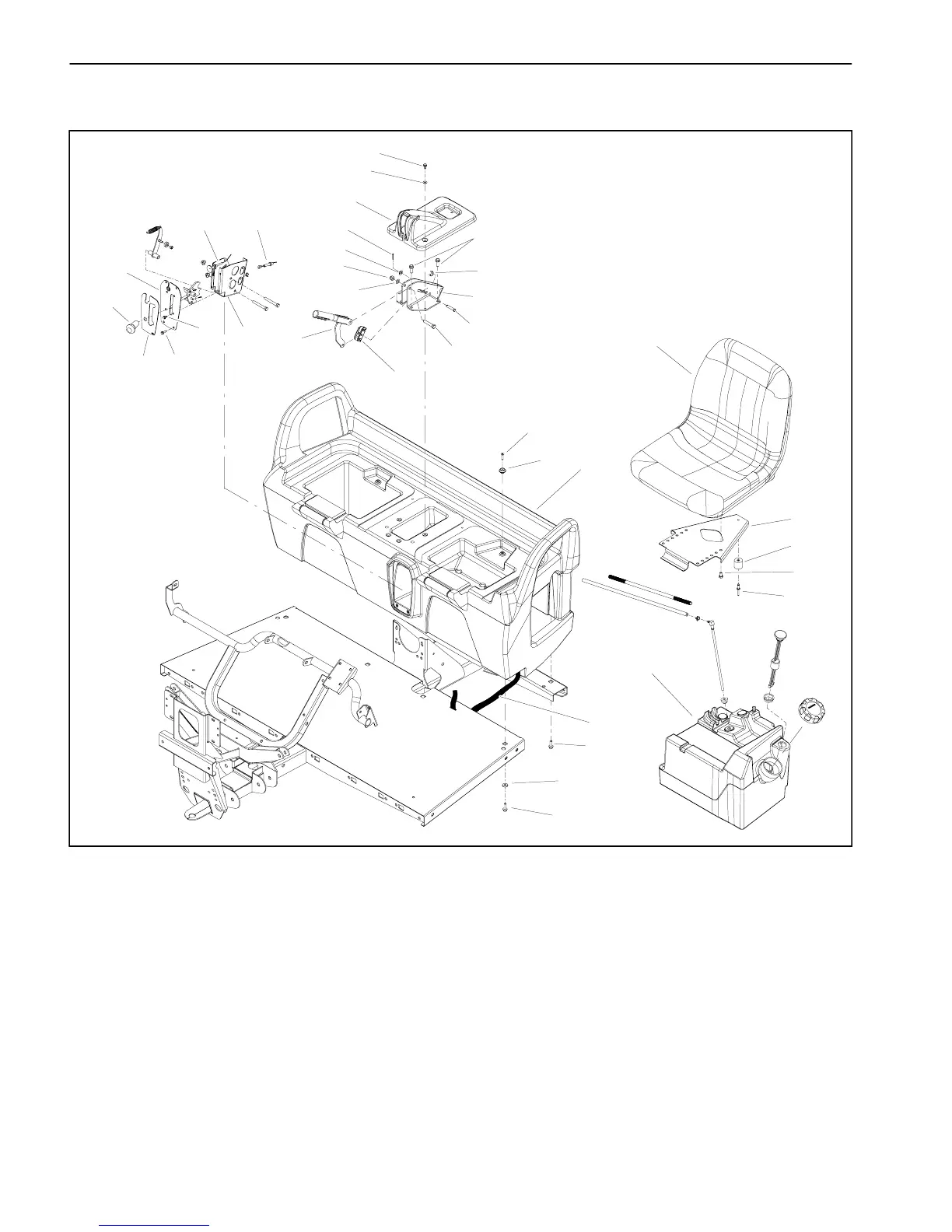

Workman MD/MDXPage 7 -- 40Chassis
Seat Base
1. Seat (2 used)
2. Seat bracket (2 used)
3. Cap screw (8 used)
4. Seat base
5. Shift cable (2 used)
6. Choke cable
7. Shift bracket
8. Short screw (4 used)
9. Long screw (4 used)
10. Fuel tank
11. Web strapping
12. Flange head screw (12 used)
13. Flat washer (4 used)
14. Shifter plate
15. Rubber receptacle (2 used)
16. Holding post (2 used)
17. Screw (2 used)
18. Rivet (2 used)
19. Decal
20. Parking brake support
21. Cap screw
22. Curved washer
23. Lock nut
24. Parking brake lever
25. Equalizer bracket
26. Clevis pin
27. Flat washer
28. Cotter pin
29. Parking brake cover
30. Knob
31. Screw (2 used)
32. Retaining ring (2 used)
33. Flat washer (2 used)
Figure 25
13
14
20
19
6
11
15
16
18
21
10
9
31
33
32
26
28
25
27
29
7
5
8
24
23
17
30
22
12
3
4
2
1
12
12
