Toro Workman MD Service Manual

Workman MD/MDX
Drive Train
Page 5 -- 10
Service and Repairs
Drive Clutch
1. Engine (V--twin shown)
2. Starter/generator
3. Starter/generator belt
4. Starter/generator pulley
5. Cap screw (4 used)
6. Lock washer (4 used)
7. Engine starter pulley
8. Spacer
9. Drive clutch
10. Washer
11. Cap screw
12. Plastic cap
13. Drive belt
14. Engine tray

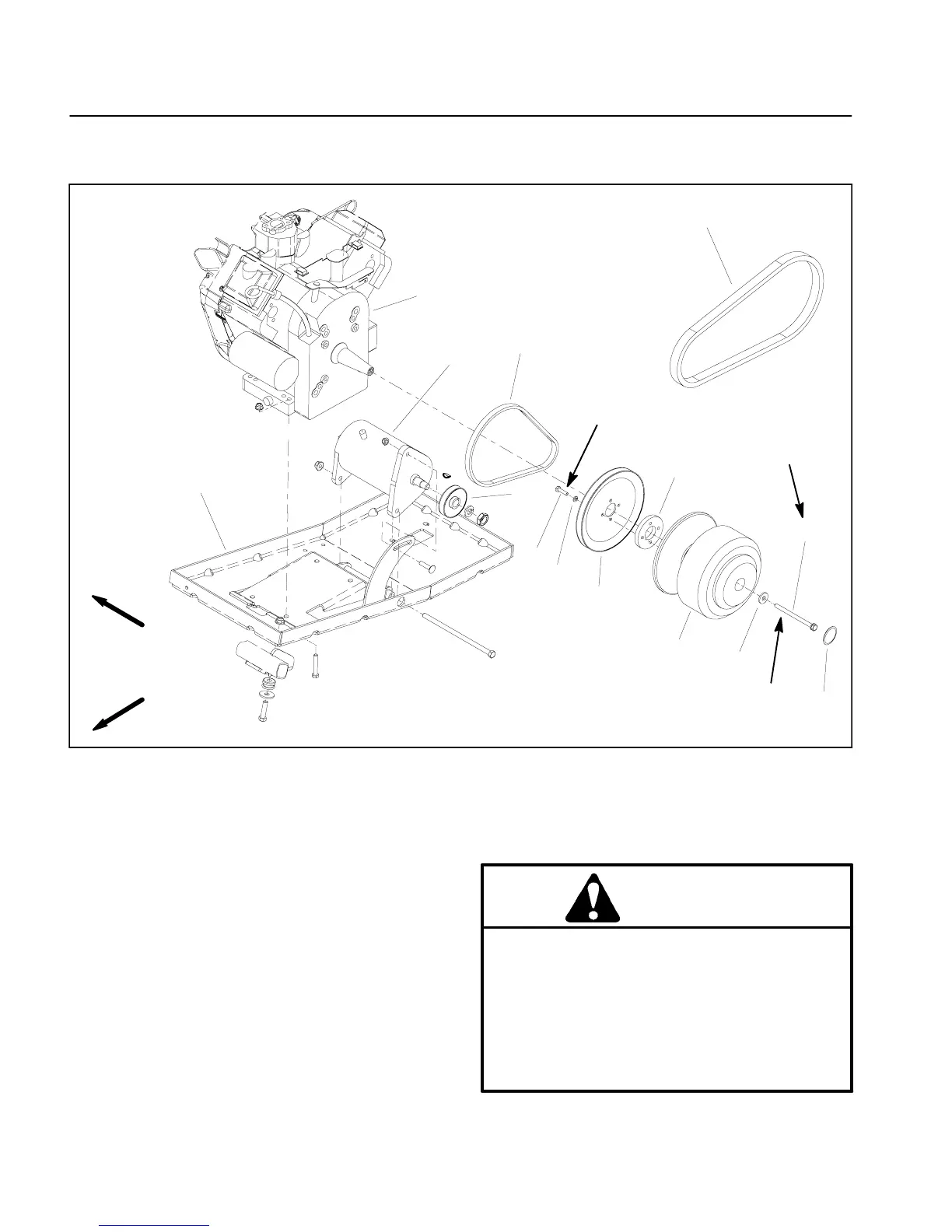

Figure 12
v
25 to 30 ft--lb
(34to40N--m)
Loctite #242
Loctite #242
7
4
5
3
2
6
1
8
9
10
12
11
14
13
FRONT
RIGHT
Drive Clutch Lubrication
NOTE: Lubricate drive clutch at the interval specified in
your Operator’s Manual.
1. Park machine on a level surface, stop engine and re-
move key from the ignition switch. Raise and support
cargo box.
2. Remove the three (3) cap screws that secure the
cover to the drive clutch (Fig. 13). Remove the cover
from the clutch.
When using compressed air for cleaning the
clutch, the dust in the clutch will become airborne
and could damage your eyes or you could inhale
it causing breathing difficulties.
Wear safety goggles and a dust mask or other eye
and respiratory protection when performing this
procedure.
WARNING
