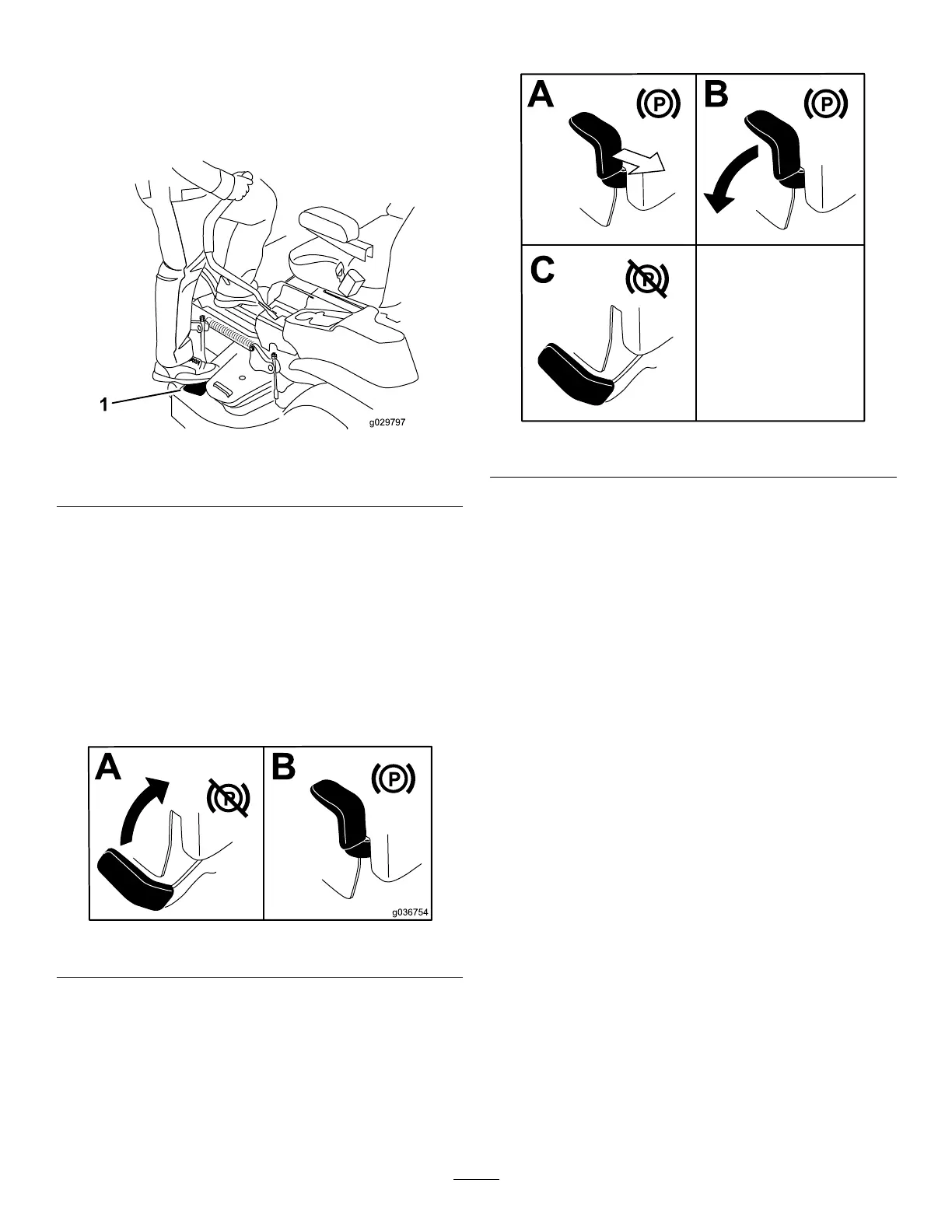

Use
the
mower
deck
as
a
step
to
get
into
the
operator
’
s
position
(
Figure
20
).
g029797
Figure
20
1.
Step
here.
Operating
the
Parking
Brake
Always
engage
the
parking
brake
when
you
stop
the
machine
or
leave
it
unattended.
Engaging
the
Parking
Brake
Park
the
machine
on
a
level
surface.
g036754
Figure
21
Disengaging
the
Parking
Brake
g192635
Figure
22
25
24
26
Table of Contents
Table of Contents
3
Safety
5
General Safety
5
Slope Indicator
6
Safety and Instructional Decals
7
Product Overview
14
Controls
14
Specifications
16
Attachments/Accessories
16
Before Operation
17
Before Operation Safety
17
Adding Fuel
18
Performing Daily Maintenance
18
Breaking in a New Machine
19
Using the Rollover-Protection System
19
(Rops)
19
Using the Safety-Interlock System
20
Positioning the Seat
21
Changing the Seat Suspension
21
Adjusting the Rear-Shock Assemblies
21
Using Attachments and Accessories
22
During Operation
22
During Operation Safety
22
Entering the Operator's Position
25
Operating the Parking Brake
25
Operating the Mower Blade-Control Switch (PTO)
26
Operating the Throttle
26
Operating the Choke
26
Starting the Engine
27
Shutting off the Engine
27
Using the Motion-Control Levers
28
Driving the Machine
29
Using the Side Discharge
30
Adjusting the Height of Cut
30
Adjusting the Anti-Scalp Rollers
31
Operating Tips
32
After Operation
32
After Operation Safety
32
Using the Fuel-Shutoff Valve
33
Using the Drive-Wheel Release Valves
33
Transporting the Machine
34
Maintenance
36
Maintenance Safety
36
Recommended Maintenance Schedule(S)
36
Lubrication
38
Greasing the Machine
38
Greasing the Caster-Wheel Hubs
39
Engine Maintenance
40
Engine Safety
40
Identifying the Engine
40
Servicing a Kawasaki ® Engine
40
Servicing a Toro Engine
45
Cleaning the Blower Housing
49
Cleaning the Engine Screen
49
Cleaning the Cooling System
50
Checking the Spark Arrester
50
Replacing the Emissions-Air Intake Filter
51
Fuel System Maintenance
51
Replacing the Fuel Filter
51
Servicing the Fuel Tank
52
Electrical System Maintenance
52
Electrical System Safety
52
Servicing the Battery
52
Servicing the Fuses
54
Drive System Maintenance
55
Checking the Seat Belt
55
Adjusting the Tracking
55
Checking the Tire Pressure
56
Checking the Wheel Lug Nuts
56
Brake Maintenance
56
Adjusting the Parking Brake
56
Belt Maintenance
58
Inspecting the Belts
58
Replacing the Mower Belt
58
Replacing the Hydraulic Pump-Drive Belt
59
Controls System Maintenance
60
Adjusting the Control-Handle Position
60
Adjusting the Motion-Control Linkage
61
Hydraulic System Maintenance
62
Hydraulic System Safety
62
Hydraulic Fluid Specifications
62
Checking the Hydraulic Fluid Level
62
Changing the Hydraulic Fluid and Filters
62
Bleeding the Hydraulic System
64
Mower Deck Maintenance
65
Blade Safety
65
Servicing the Cutting Blades
65
Adjusting the Side-To-Side Leveling and the Blade Slope
68
Removing the Mower Deck
70
Replacing the Grass Deflector
71
Cleaning
72
Cleaning under the Mower Deck
72
Cleaning the Suspension System
72
Disposing of Waste
72
Storage
73
Storage Safety
73
Cleaning and Storage
73
Troubleshooting
74
Schematics
76
4
