Toro Z Master 77248 User Manual

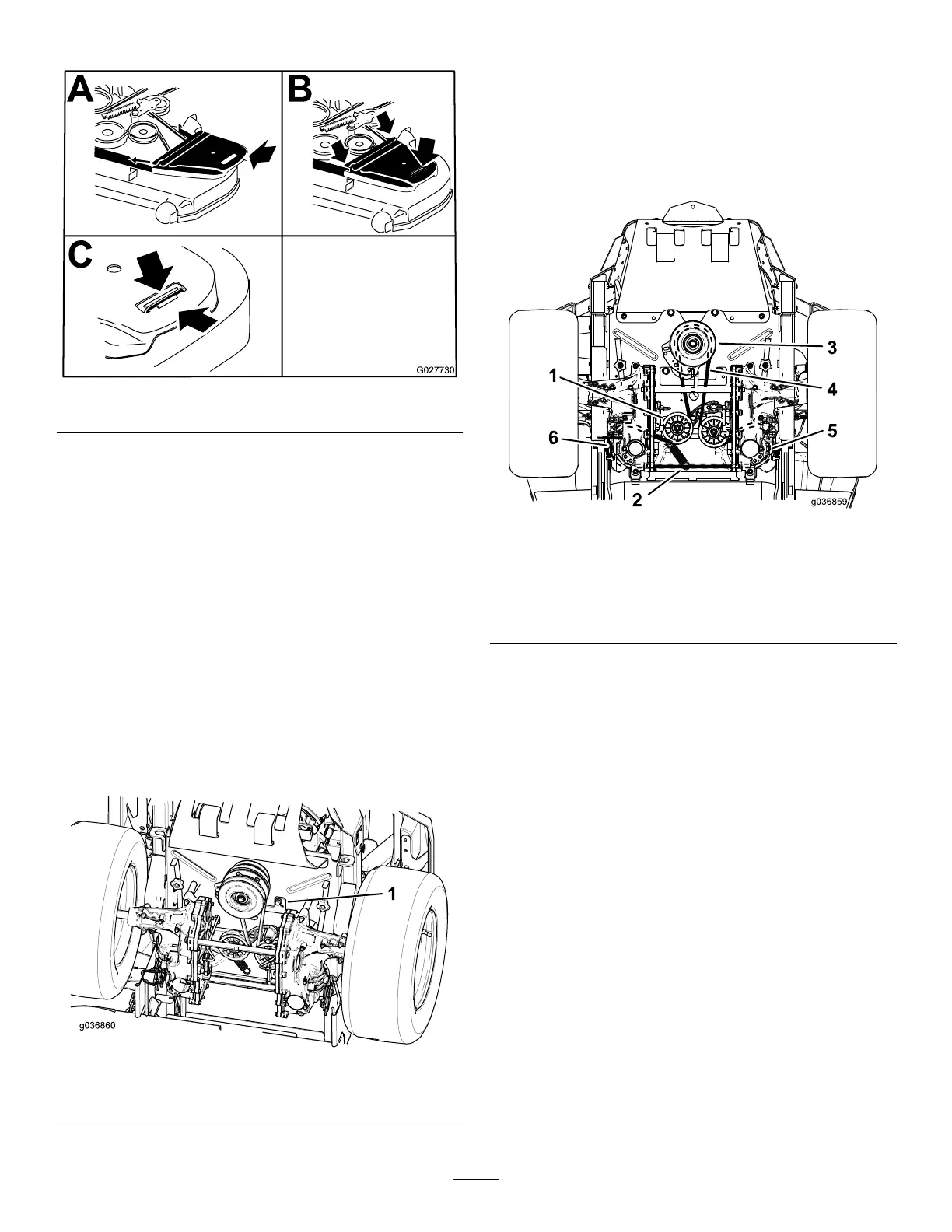

9.Installthebeltcovers(Figure76).
g027730
Figure76
ReplacingtheHydraulic
Pump-DriveBelt
1.Parkthemachineonalevelsurface,disengage
theblade-controlswitch(PTO),andengagethe
parkingbrake.
2.Shutofftheengine,removethekey,andwait
forallmovingpartstostopbeforeleavingthe
operatingposition.
3.Removethemowerbelt;refertoReplacingthe
MowerBelt(page58).
4.Raisethemachineandsupportitwithjack
stands(Figure78).
5.Removetheclutchstop(Figure77).
g036860
Figure77
1.Clutchstop
6.Removetheidlerspringfromthepost(Figure
78).
7.Removetheexistingbeltfromthe
hydraulic-pump-drivepulleysandthe
enginepulley.
8.Installthenewbeltaroundtheenginepulleyand
the2hydraulic-pumppulleys(Figure78).
g036859
Figure78
1.Idlerpulley4.Pump-drivebelt
2.Idler-springpost5.Righthydraulic-pump
pulley
3.Enginepulley
6.Lefthydraulic-pumppulley
9.Installtheclutchstop(Figure77).
10.Installthemowerbelt;refertoBeltMaintenance
(page58).
59
