AdjustingtheHeight-of-CutPin
Theheightofcutisadjustedfrom25to140mm(1
to5-1/2inches)in6mm(1/4inch)incrementsby
relocatingtheclevispinintodifferentholelocations.
1.MovethetransportlocktotheLOCKposition
(Figure33).
2.Pushonthedeck-liftpedalwithyourfoot,and
raisethemowerdecktotheTRANSPORTposition
(alsothe140mm(5-1/2inches)cuttingheight
position)asshowninFigure34.
3.Toadjust,removethepinfromtheheight-of-cut
bracket(Figure34).
4.Selectaholeintheheight-of-cutbracket
correspondingtotheheightofcutdesired,and
insertthepin(Figure34).
5.Pushonthedecklift,pullbackonthetransport
lock,andslowlylowerthemowerdeck.
g336602

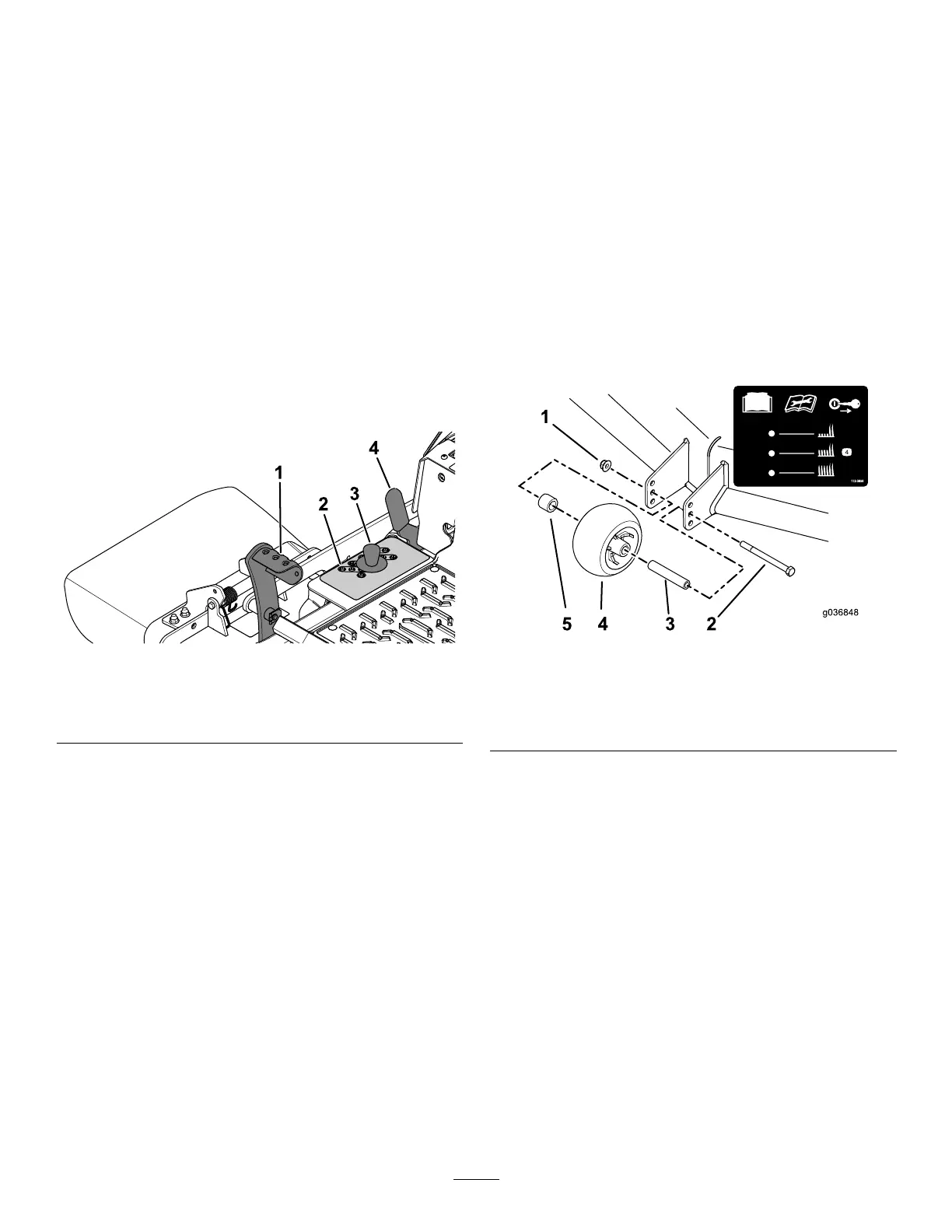

Figure34
1.Deck-liftpedal3.Height-of-cutpin
2.Height-of-cutbracket
4.Transport-locklever
AdjustingtheAnti-Scalp
Rollers
Wheneveryouchangetheheightofcut,adjustthe
heightoftheanti-scalprollers.
Note:Adjusttheanti-scalprollerssothattherollers
donottouchthegroundinnormal,atmowingareas.
1.Parkthemachineonalevelsurface,disengage
theblade-controlswitchandengagetheparking
brake.
2.Shutofftheengine,removethekey,andwait
forallmovingpartstostopbeforeleavingthe
operatingposition.
3.Adjusttheanti-scalprollersasshowninFigure
35.
g036848
Figure35
1.Flangenut4.Anti-scalproller
2.Bolt
5.Spacer
3.Bushing
