4.7 Connecting of Cruise R/T to lead batteries (Gel, AGM), or
conventional lithium batteries
Cruise 2.0 R/T operates with a power supply of between 20 V and 30 V (referring to nomi-
nal voltage). This means it may be operated with serially connected 12 V batteries.
Cruise 4.0 R/T operates with a power supply of between 42 V and 58 V (referring to nomi-
nal voltage). This means it may be operated with four serially connected 12 V batteries.
To increase capacity, several pairs of serially connected 12 V batteries may be connected
in parallel.
1.Makesurethatmainswitchofcablesetisin“OFF”position;otherwiseswitchitinto
”OFF”position.
2. Connect cable set according to the following drawings for Cruise 2.0 R/T respectively
4.0 R/T. Pay attention to correct polarity of terminals and terminal posts, connection of
positive and negative terminal posts (visible on imprint of batteries and terminal posts)

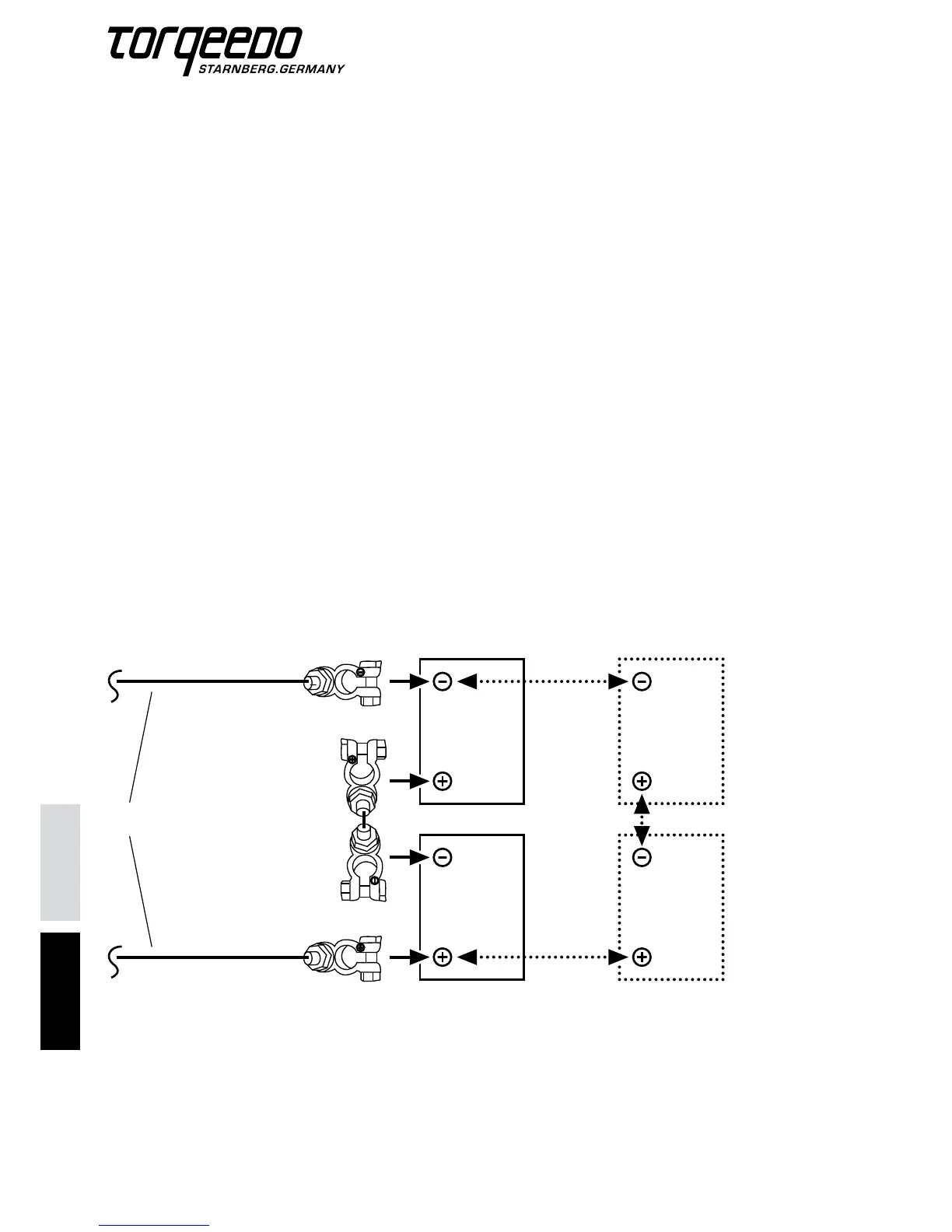

Connecting of Cruise T to two 12 V batteries
Optionalextensionofthebattery
capacity via parallel connection with
12 V batteries
Cable set
12 V-Battery
12 V-Battery
Bridging cable
