1600EP Series Instruction Manual
Optional Receptacle Panel Installation Instructions
These are the instructions for installing the optional Modular Output Receptacle Panels for the 1600EP
Series UPS. These instructions apply to all UE3-RP-XX panel options.
WARNING: The work outlined in these instructions is to be performed only on a completely un-energized
UPS system.

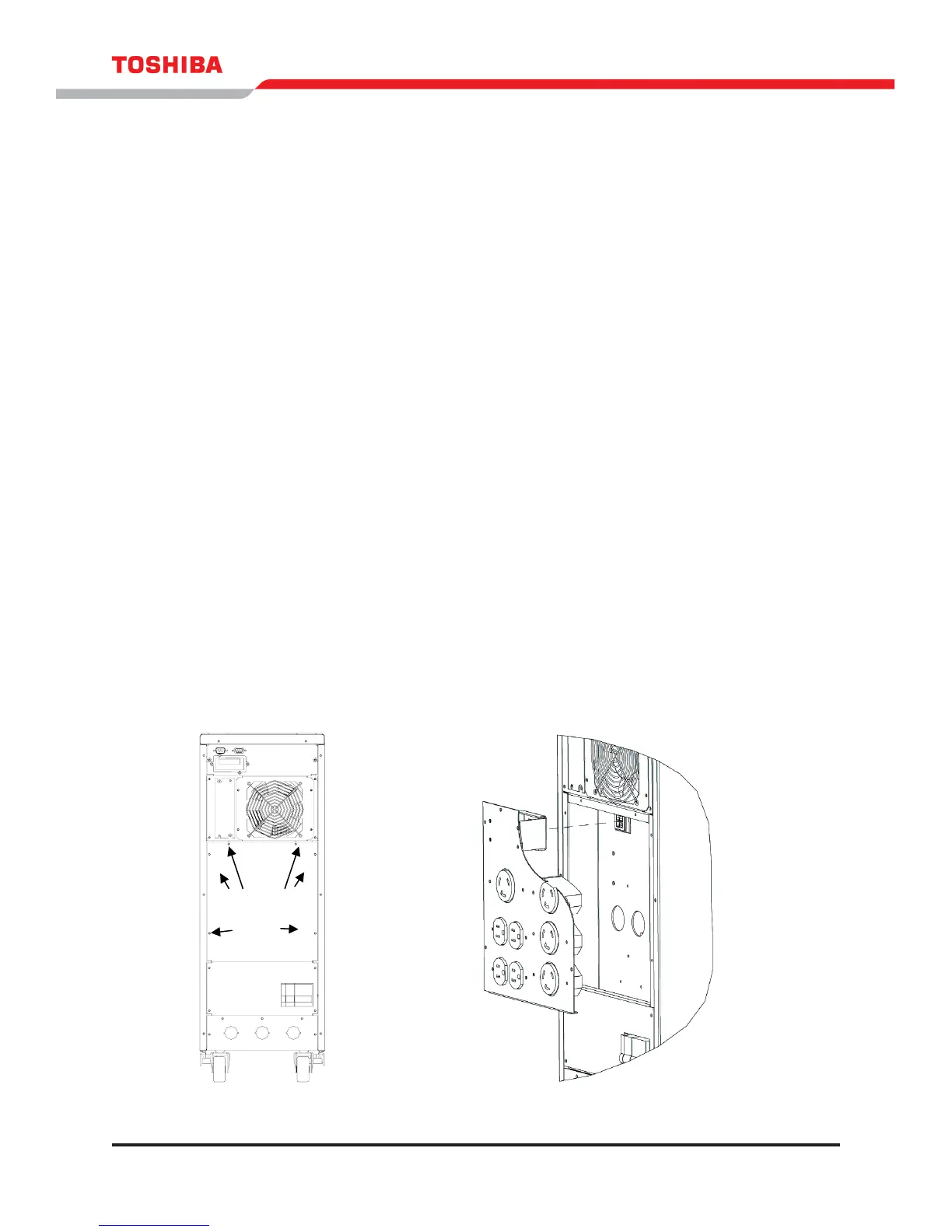

Refer to Figure 1 for location of UPS referenced material. Refer to Figure 2 for material referring to the
receptacle panel module.
Step 1: Remove the modular receptacle panel cover plate.
On the rear of the UPS, locate the cover plate for the receptacle panel module interface
(see Figure 1).
Remove the 6 mounting screws.
Remove the cover plate. A square-shaped plug will appear exposed near the upper-left corner
of the uncovered slot.
Step 2: Snap-In Output Receptacle modular panel
Carefully mate the square-shaped connector on the UPS to its matching counter part on the rear of the
modular panel.
Step 3: Mount the receptacle panel
Attach the screws removed from the cover plate through the mounting holes of the receptacle panels and
back into the UPS mounting points.
Figure 1
Figure 2
