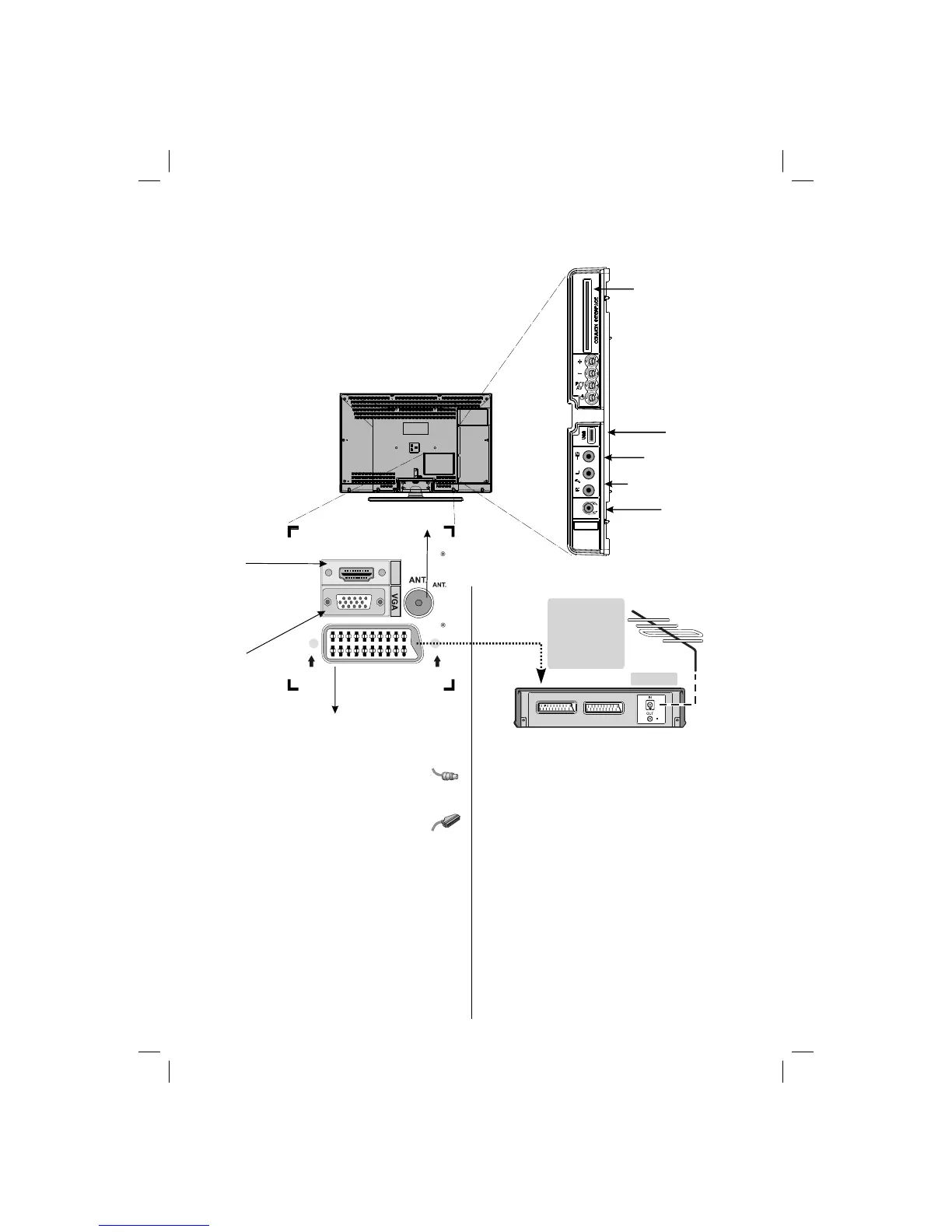

Connecting External Equipment
Before connecting any external equipment, turn off the On/Off switch and remove the mains plug from the wall socket.
HDMI
SCART
Coax.OUT
HDMI Input
Socket
PC VGA
Input
Scart
Socket
Aerial
Input
TV
* a decoder
could be Digital
Satellite, Free to
Air or any other
compatible
decoder.
decoder*
COMMON INTERFACE
The Common Interface is
for a Conditional Access
Module (CAM).
USB Input
Side Video Input
PC/AV Audio Inputs
Headphone
Aerial cable...............................................................
Connect the aerial to the socket on the rear of the
television.
SCART lead..............................................................
If you use a decoder* or a media recorder, it is essential that
the scart cable is connected to the television.
Before running fi rst time installation, any connected devices
to standy mode.
The phono sockets located on the side of the TV will accept
L and R audio signals.
HDMI® (High-Defi nition Multimedia Interface) is for using
with a DVD decoder or other equipment with digital audio and
video output. It is designed for best performance with 1080i
and 1080p high-defi nition video signals but will also accept
and display VGA, 480i, 480p, 576i, 576p and 720p signals.
PC format signals will also be displayed.
NOTE: Although this television is able to connect to HDMI
equipment, it is possible that some equipment may not
operate correctly.
A wide variety of external equipment can be connected
to the television; therefore, the relevant owner’s manuals
for all additional equipment must be referred to for exact
instructions.
If the television automatically switches over to monitor external
equipment, return to normal television by pressing the desired
programme position button. To recall external equipment,
press SOURCE button to switch between sources.
You can also connect YPbPr equipment to your TV but this
connection can only be enabled by using YPbPr to PC cable
(Cable is not supplied). To enable sound connection, use
AUDIO IN located side of the TV.
.When the connection is made, switch to YPbPr source. See,
Input selection section.
