Chapter 1: Introduction

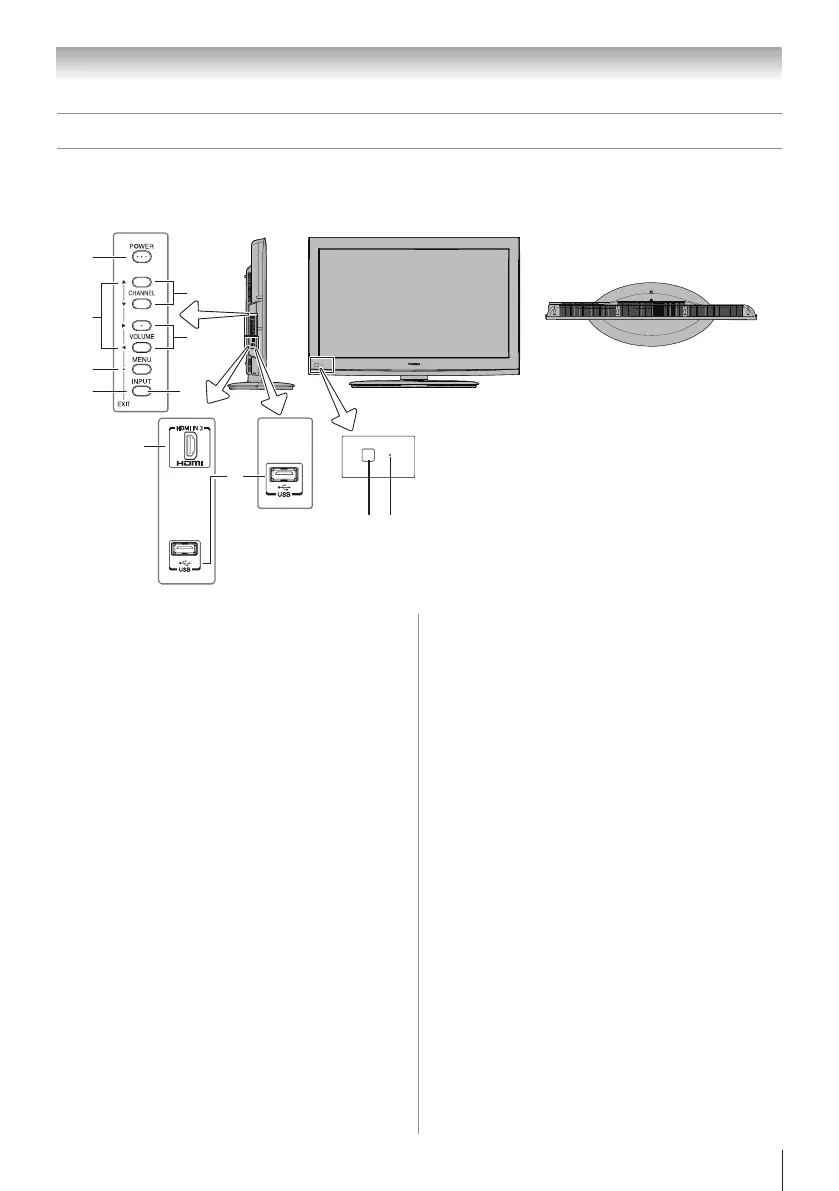

TV front and side panel controls and connections
Models C110U, E210U, and G310U are used in this manual for illustration purposes.
TV front
TV top
Left side panel
46G310U/
55G310U
Control panel
32C110U/40E210U
Control panel
1無 Green LED
Power LED (Green) = Power indicator
2無 Remote sensor
(embedded)
— Point the remote
control toward this remote sensor (
“Remote
control effective range” on page 20).
3無 POWER
— Press to turn the TV on and off.
If the TV stops responding to the controls on
the remote control or TV control panel and
you cannot turn off the TV, press and hold the
POWER
button on the TV control panel for 5 or
more seconds to reset the TV.
4無 ARROWS
pqtu
— When a menu is on-
screen, these buttons function as up/down/left/
right menu navigation buttons.
5無 MENU (ENTER)
— Press to access the menu
system (
pages 22–23). When a menu is on-
screen, the
MENU
button on the TV’s control
panel can function as the
ENTER
button.
6無 EXIT
— Press to instantly close an on-screen
menu.
7無 CHANNEL
pq
— When no menu is on-screen,
these buttons change the channel (programmed
channels only;
page 25).
8無 VOLUME
tu
— When no menu is on-screen.
These buttons adjust the volume level.
9無 INPUT
— Repeatedly press to change the video
source you are viewing.
10無 HDMI
®
IN
(G310U only) —
High-Definition Multimedia Interface input
receives digital audio and uncompressed digital
video from an HDMI device or uncompressed
digital video from a DVI device. HDMI
connection is necessary to receive 1080p signals.
11無 USB port
— To access JPEG or MP3 files.
