Chapter 2: Connecting your TV

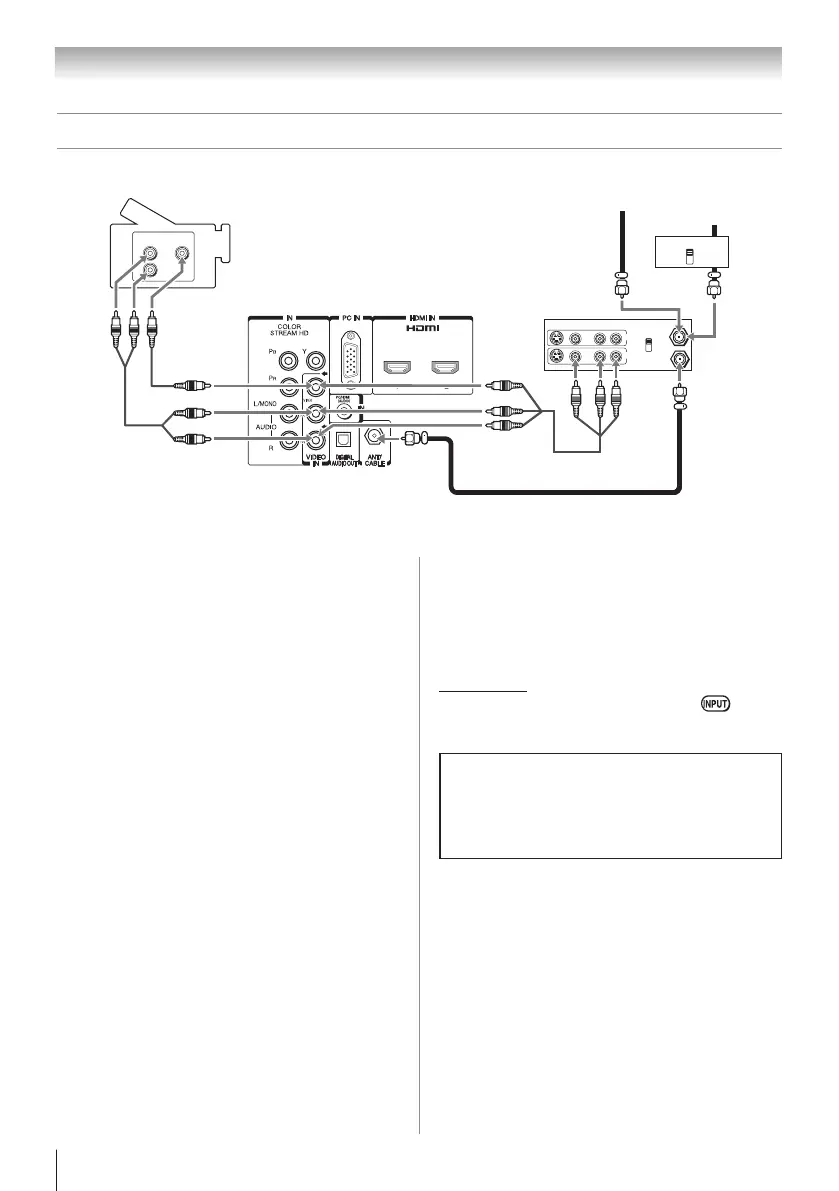

Connecting a VCR, Antenna, Cable TV, or Camcorder
1
IN
OUT
CH 3
CH 4
IN
from
ANT
VIDEO AUDIO
OUT
to
TV
L R
R
L
OUT
IN
CH 3
CH 4
VIDEO
AUDIO
OUT
L
R
TV back panel
Stereo VCR
Cable box
From Cable TV
From Cable TV or
antenna
You will need:
•
Coaxial cables
•
Standard A/V cables
−
If you have a mono VCR, connect L/MONO
on the TV to your VCR’s audio out terminal
using the white audio cable only.
•
Standard audio cables.
Note: When you use a Cable box, you may not
be able to use the remote control to program or
access certain features on the TV.
To view the antenna or Cable signal:
Select the ANT/CABLE video input source on the TV.*
To view basic and premium Cable channels:
Turn OFF the VCR. Select the ANT/CABLE video
input source on the TV.* Tune the TV to channel 3 or
4 (whichever channel the Cable box output is set to).
Use the Cable box controls to change channels.
To view the VCR:
Turn ON the VCR. Select the VIDEO video input
source on the TV.*
To view the camcorder video:
Select the VIDEO video input source on the TV.*
*
To select the video input source, press on the
remote control ( page 21).
The unauthorized recording, use, distribution, or
revision of television programs, videotapes, DVDs,
and other materials is prohibited under the Copyright
Laws of the United States and other countries, and may
subject you to civil and criminal liability.
