TV Size Hole Pattern(HxV) Screw Size
32” 200x200 mm M6
40” 200x200 mm M6
46” 400x200 mm M8
55” 400x200 mm M8
(unit in mm)
Removing the Pedestal Stand
1)
Carefully lay the front of the unit face down on a
flat, cushioned surface such as a quilt or blanket.
Leave the stand protruding over the edge of the
surface.
Note: Extreme care should always be used
when removing the pedestal stand to avoid
damage to the LCD panel.
2) Remove the four screws shown in the below
diagram. This will allow removal of the pedestal
stand.
3) Once you have removed all four screws holding
the pedestal stand in place, remove the pedestal
stand from the TV.

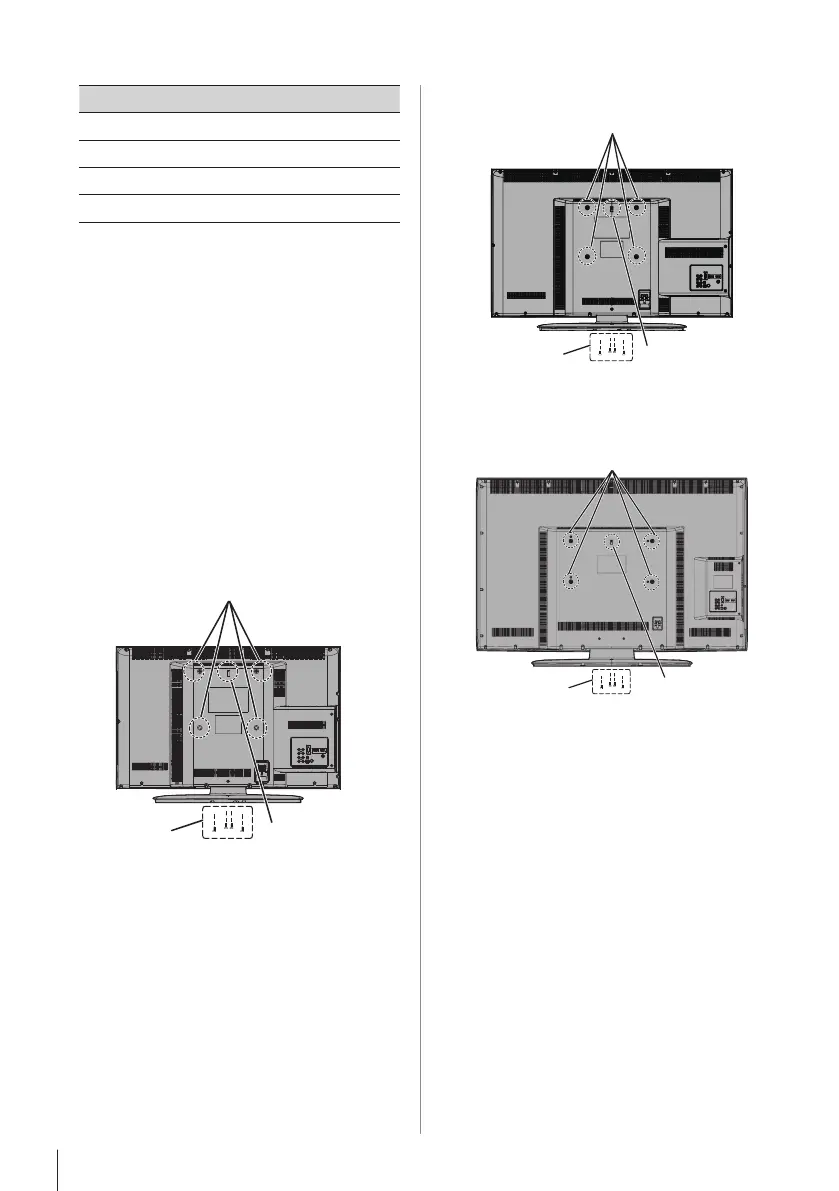

32” TV
40” TV
46 / 55” TV
CAUTION: Always place the TV on the floor or a sturdy,
level, stable surface that can support the weight of
the unit. To secure the TV, use a sturdy strap from
the hook(s) on the rear of the TV to a wall stud, pillar,
or other immovable structure. Make sure the strap is
tight, secure, and parallel to the floor.
VESA Mounting Pattern
Four screws
Hook
Sturdy strap
(as short as possible)
Four screws
Hook
Sturdy strap
(as short as possible)
VESA Mounting Pattern
VESA Mounting Pattern
Four screws
Hook
Sturdy strap
(as short as possible)
