2. PRINTER SETUP

ENGLISH VERSION EO1-33034

2.2 Procedure before Operation

E2- 2

2.2 Procedure before

Operation

2.3 Fitting the Fan Filter

This section describes the outline of the printer setup.

Unpack the accessories and printer from the box.

Refer to Safety Precautions in this manual and set up the printer at a

proper location.

Fit the Fan Filter to the printer. (Refer to Section 2.3.)

The host computer must have a serial, Centronics parallel, USB or

LAN port. (Refer to Section 2.4.)

Be sure to insert the power cord plug into an AC outlet. (Refer to

Section 2.5.)

Load the media. (Refer to Section 2.7.)

Adjust the position of the Feed Gap Sensor or Black Mark Sensor

depending on the media being used. (Refer to Section 2.7.)

Load the ribbon. (Refer to Section 2.8.)

Turn the power ON. (Refer to Section 2.6.)

10.

Perform a test print. (Refer to Section 2.10.)

11.

Install the Printer Drivers. (Refer to the Printer Driver Manual.)

When installing the printer, it is important to ensure that the Fan Filter is

attached before using the printer.

The Fan Filter consists of 2 parts:

(1) Filter Pad

(2) Filter Retainer

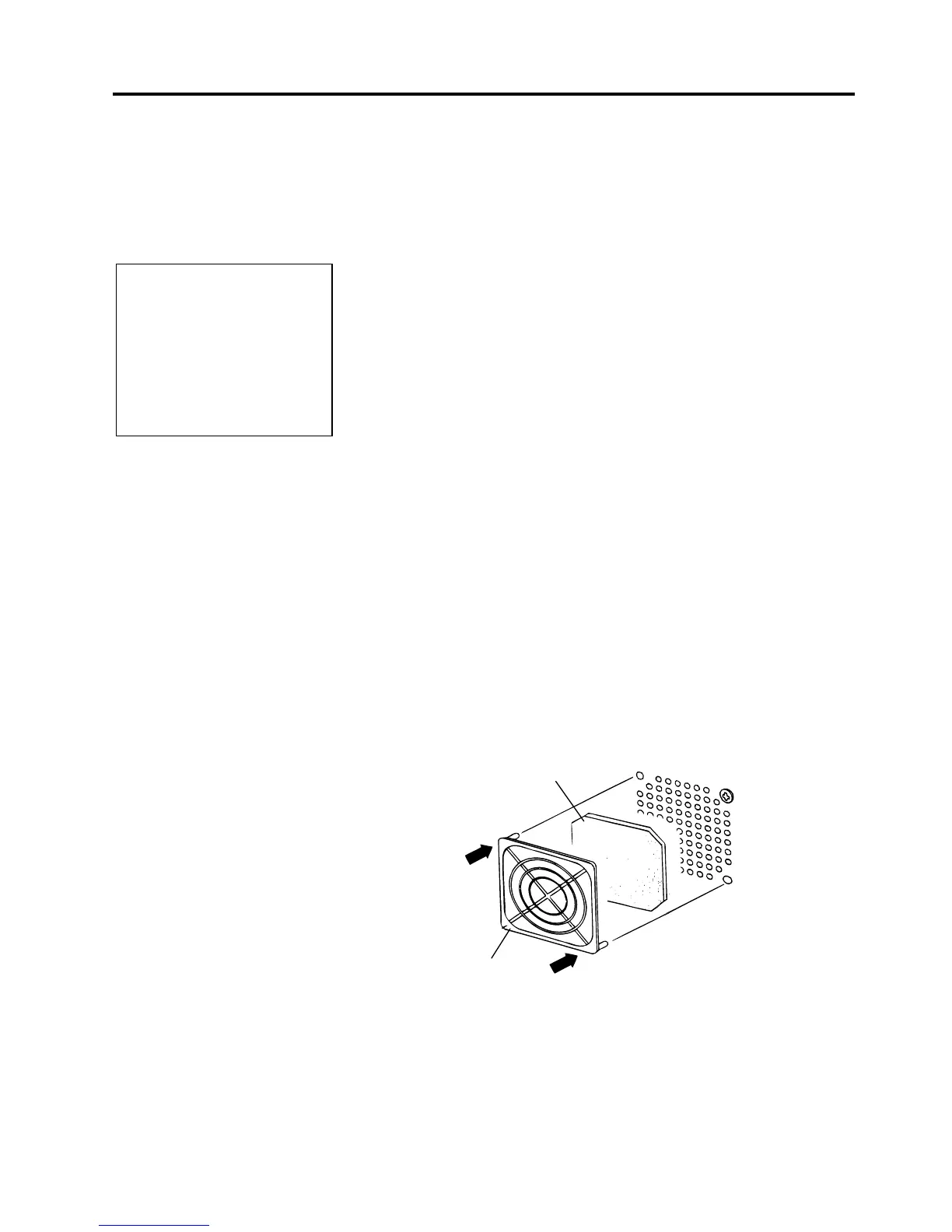

To fit the Fan Filter, put the Filter Pad inside the Filter Retainer and

simply press into place as shown in the diagram below, ensuring

connecting pins are aligned with the connecting holes.

NOTE:

To communicate with the host

computer, one of the following

cables is required.

(1) RS-232C cable: 25 pins

(2) Centronics cable: 36 pins

(3) USB: B plug (Option)

(4) LAN: 10 Base-T or 100

Base-TX (Option)

Filter Pad

Filter Retainer

Snap On

Other manuals for Toshiba B-SX4T Series

Specification374 pages

Need help?

Do you have a question about the Toshiba B-SX4T Series and is the answer not in the manual?

Toshiba B-SX4T Series Specifications

General

Resolution	203 dpi (8 dots/mm)
Power Supply	AC 100-240V, 50/60 Hz
Print Method	Direct Thermal / Thermal Transfer
Print Width	104 mm
Print Speed	Up to 6 ips (inches per second)
Interfaces	Serial, Parallel, USB, LAN
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Supported Barcodes	UPC/EAN/JAN, Code 39, Code 93, Code 128, EAN 128, NW7, Interleaved 2 of 5, Industrial 2 of 5, Postnet, RM4SCC, KIX-Code, GS1 DataBar, Postal Code, Data Matrix, PDF417, Maxicode, QR Code
Humidity	20% to 85% (non-condensing)
