3.1 Operation Panel
E3- 1
3. ON LINE MODE
3.1 Operation Panel
This chapter describes usage of the keys on the Operation Panel in On
Line mode.
When the printer is in On Line mode and connected to a host computer,
the normal operation of printing images on labels or tags can be
accomplished.
•

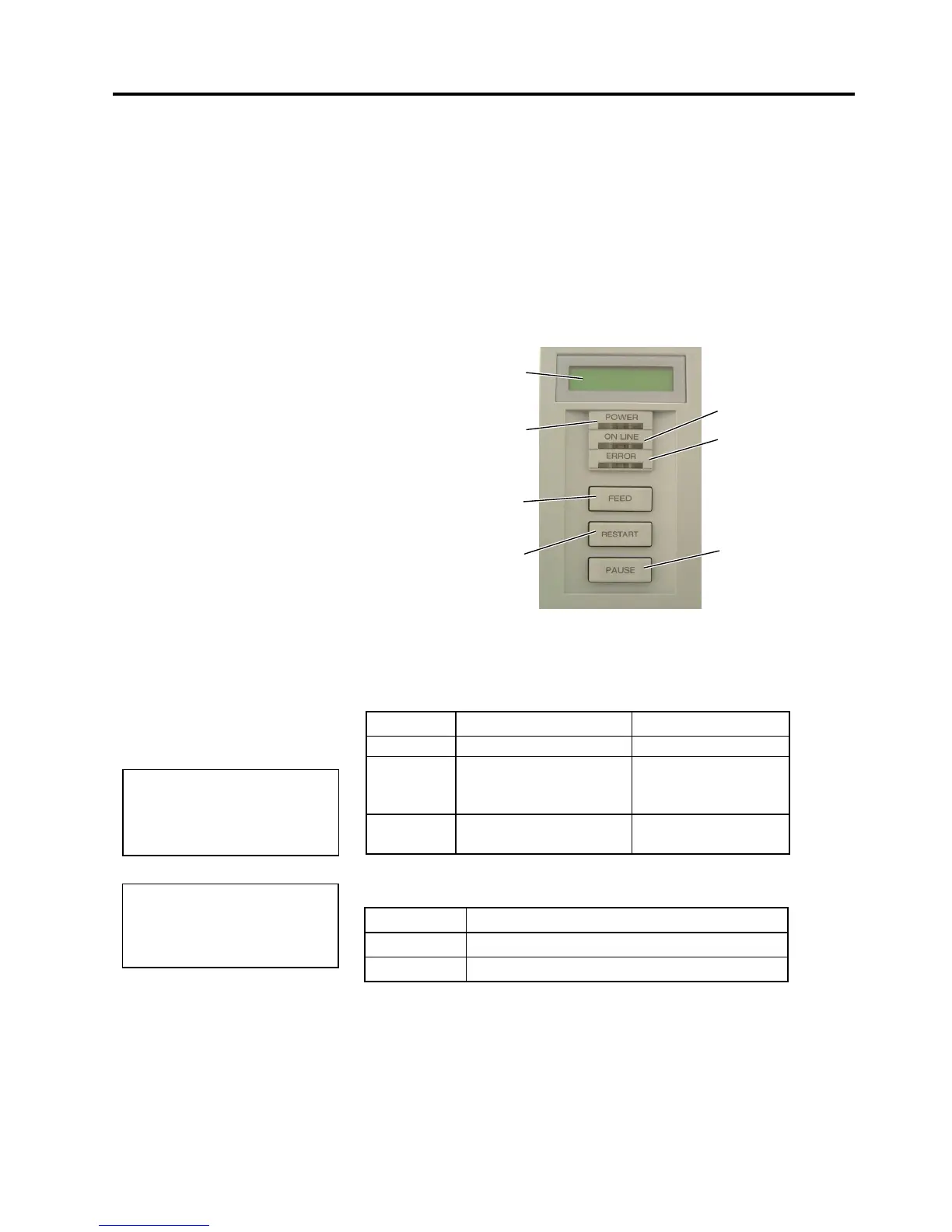

The figure below illustrates the operation panel and key functions.
The LCD Message Display shows messages in alphanumeric characters
and symbols to indicate the printer’s current status. Up to 32 characters
can be displayed on two lines.
There are three LED lights on the operation panel.
LED Illuminates when… Flashes when…
POWER
The printer is turned on. -----
ON LINE
The printer is ready to
print.
The printer is
communicating with
your computer.
ERROR
Any error occurs with
the printer.
The ribbon is nearly
over. (See NOTE.)
There are three keys on the operation panel.
PAUSE
Used to stop printing temporarily.
RESTART
Used to restart printing.
FEED
Used to feed the media.
NOTE:
Use the
[RESTART] key to
resume printing after a pause, or
after clearing an error.
LCD Message Display
ON LINE LED (Green)
ERROR LED (Red)
[PAUSE]
key
POWER LED
(Green)
[FEED]
ke
y
[RESTART]
ke
y
NOTE:
Flashes only when the Ribbon
N
ear End Detection function is
selected.

Toshiba B-SX4T Series Specifications

General

Resolution	203 dpi (8 dots/mm)
Power Supply	AC 100-240V, 50/60 Hz
Print Method	Direct Thermal / Thermal Transfer
Print Width	104 mm
Print Speed	Up to 6 ips (inches per second)
Interfaces	Serial, Parallel, USB, LAN
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Supported Barcodes	UPC/EAN/JAN, Code 39, Code 93, Code 128, EAN 128, NW7, Interleaved 2 of 5, Industrial 2 of 5, Postnet, RM4SCC, KIX-Code, GS1 DataBar, Postal Code, Data Matrix, PDF417, Maxicode, QR Code
Humidity	20% to 85% (non-condensing)
