User’s Manual 9-10
Optional Devices
7. Align the notch of the memory module with that of the memory module
slot and gently insert the module into the slot at about a 45 degree
angle before holding it down until the latches on either side snap into
place.

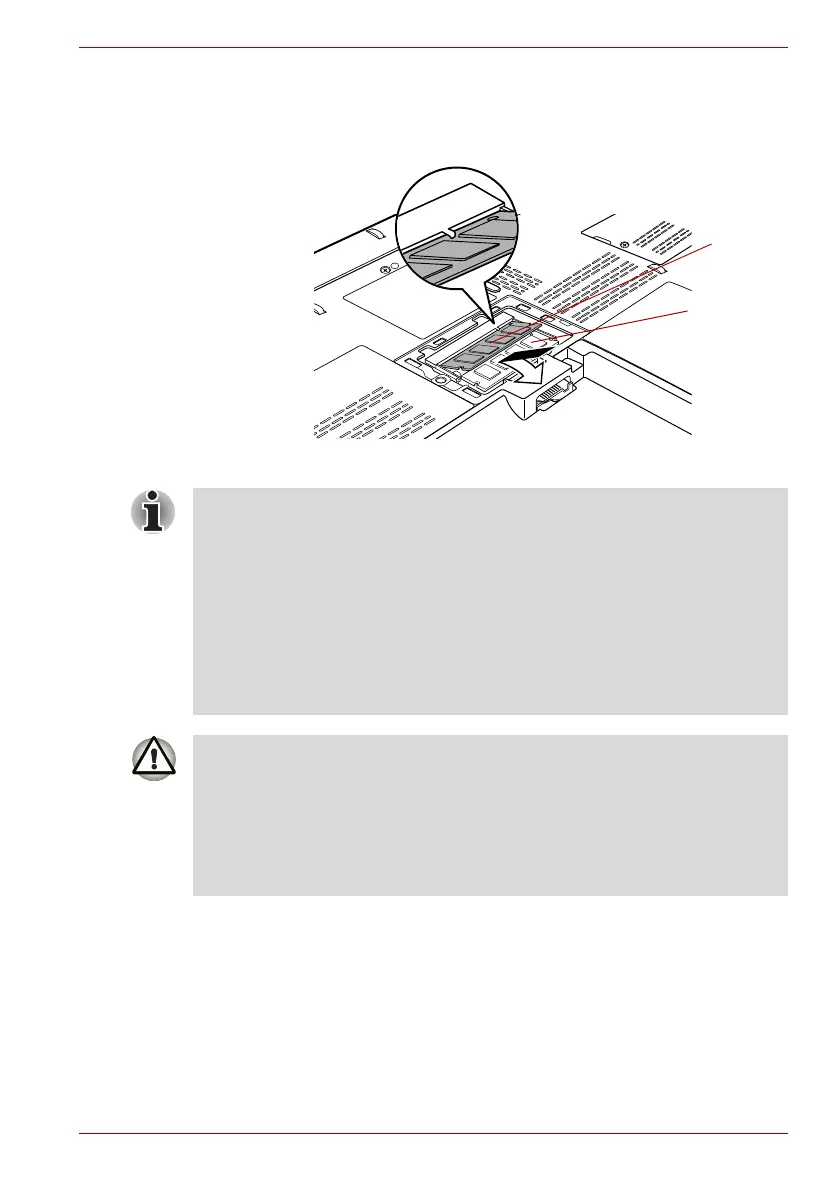

Figure 9-7 Seating the memory module
Slot A
Slot B
■ Slot A is reserved for the first memory module. Use slot B for expansion
memory modules. If only one module is installed, use slot A.
■ When inserting or removing memory modules, make sure to use the
correct slot (A or B). On this computer the lower slot is slot A.
■ Align the grooves along the edges of the memory module with the
locking tabs on the connector and insert the memory module into the
connector firmly - if you find it difficult to install the memory module,
gently prise the locking tabs outwards using the tip of your finger.
Please also ensure that you hold the memory module along its left and
right hand edges - the edges with the grooves in.
■ Never allow metal objects, such as screws, staples and paper clips, to
enter the computer or keyboard. Foreign metal objects can create a
short circuit, which can cause computer damage and fire, possibly
resulting in serious injury.
■ Do not touch the connectors on the memory module or on the
computer. Debris on the connectors may cause memory access
problems.
