– 101 –
Location Part
Description
No. No.
201 43005633 Panel Ass’y, Front
202 43005610 Grille, Air Inlet
203 4301V052 Plate, Fix
204 43080512 Filter, Air, Right
205 43080521 Filter, Air, Left
206 43009675 Louver, Horizontal
207 43009682 Louver, Vertical
209 4302C067 Motor, Fan
210 4302C063 Motor, Louver
211 4306A024 Cord, Motor, Louver
212 43039363 Band, Motor, Left
213 43039321 Base, Bearing
214 43020346 Fan, Cross Flow
215 43039314 Band, Motor
216 43020253 Bearing
217 4301V028 Holder, Pipe
218 43049701 Pipe, Shield (B16GKVP-E)
219 43049698 Pipe, Shield
(B10GKVP-E, B13GKVP-E)
221 43047671 Pipe, Outlet
(B10GKVP-E, B13GKVP-E)
222 43047672 Pipe, Outlet (B16GKVP-E)
Location Part
Description
No. No.
223 43049674 Spring, Suction
(B16GKVP-E)
224 43047673 Pipe, Inlet
225 43044803 Evaporator
(B10GKVP-E, B13GKVP-E)
226 43044804 Evaporator (B16GKVP-E)
227 43039324 Guide, Drain
228 43049728 Guide, Drain, Left
229 43019904 Holder, Sensor
230 43049770 Holder, Evaporator, Right
232 43062256 Cover, Terminal
233 43062247 Cover, Lead
234 43082293 Plate, Installation
235 4306S577 Remote Controller
236 43083071 Holder, Remote, Comtroller
238 43003307 Body Ass’y, Back
239 43070188 Hose, Drain
240 43079268 Cap, Drain
245 43080516 Electrical Air Purifying Filter
246 43080527 Generator Ass’y, HV
247 4308N732 Owner’s Manual

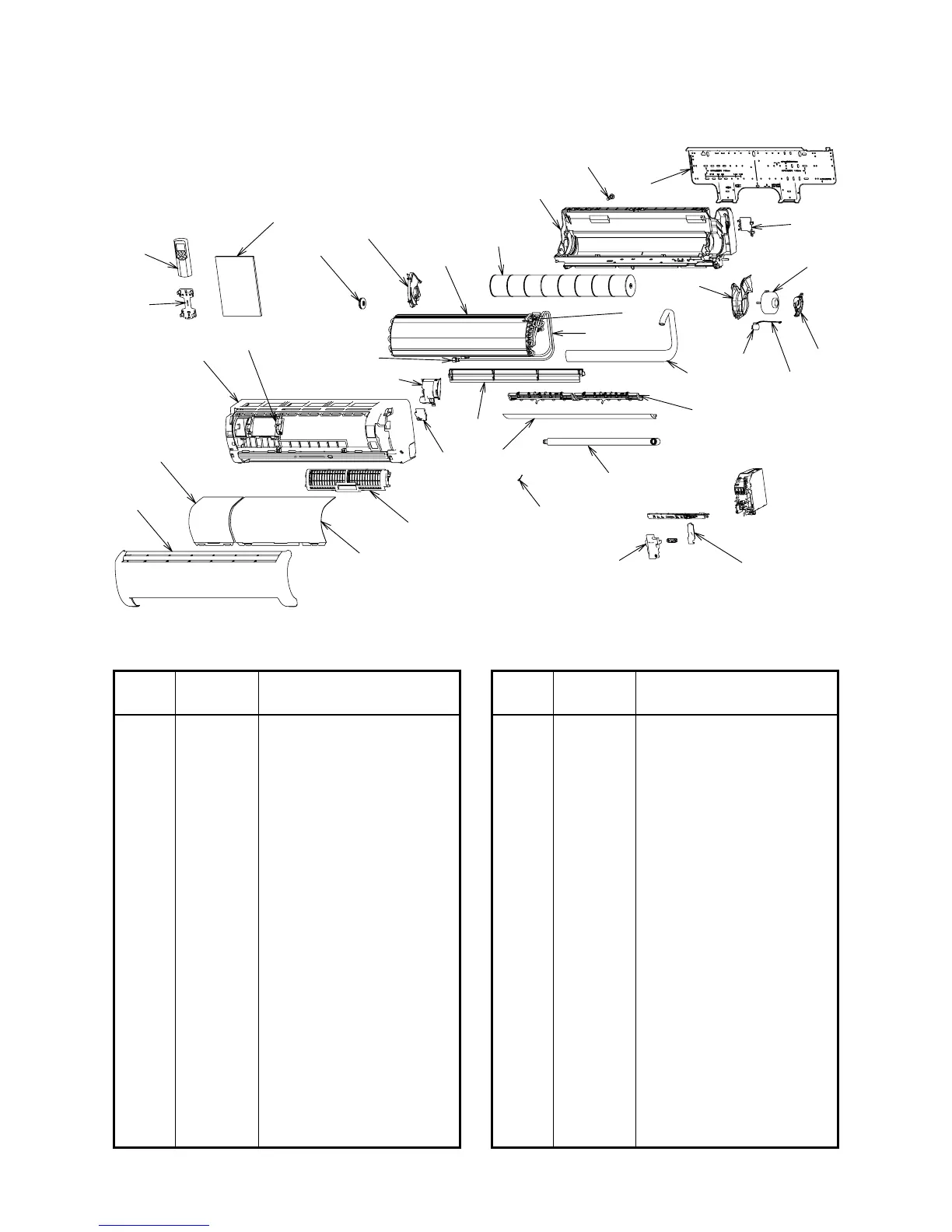

13. EXPLODED VIEWS AND PARTS LIST
13-1. Indoor Unit (1)
∗ The parts in the following parts list are conformed to RoHS.
Therefore be sure to use the following parts for repairing and replacing.
233
232
239
207
218, 219
212
230
223
210
211
215
209
217
234
240
238
214
225, 226
213
216
247
235
236
201
203
221, 222, 224
246
227
228
245
204
205
202
206
229
