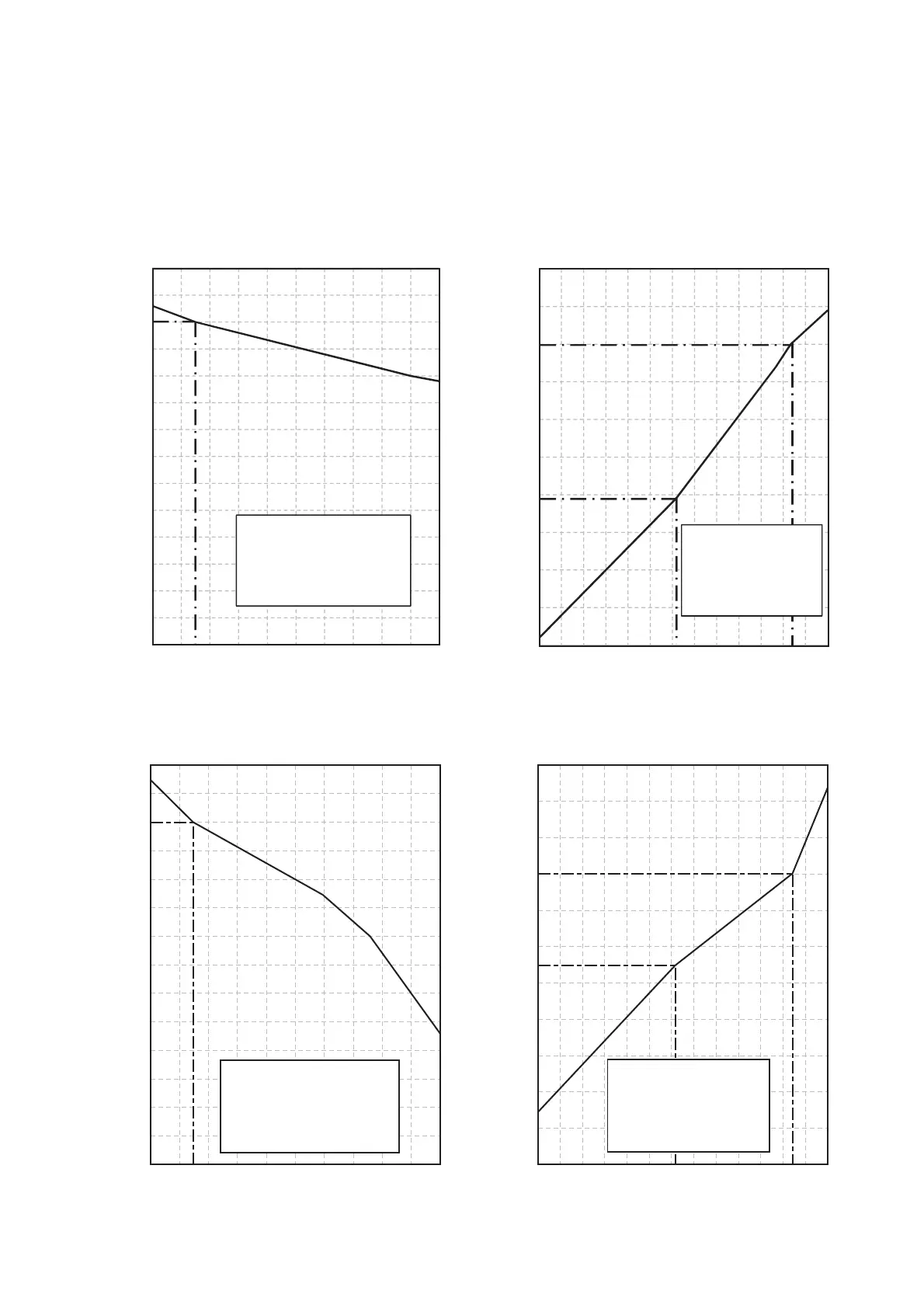

1-3. Operation Characteristic Curve
Operation characteristic curve
GP561
GP801
40%
45%
50%
55%
60%
65%
70%
75%
80%
85%
90%
95%
100%
105%
110%
32 34 36 38 40 42 44 46 48 50 52
• Conditions
Indoor: DB27
˚C / WB19˚C
Indoor air flow: High
Pipe length: 7.5 m
230 V, 50 Hz (1 phase)
Current (A)
Outdoor temperature (˚C)
<Cooling>
20%
30%
40%
50%
60%
70%
80%
90%
100%
110%
120%
-27 -24 -21 -18 -15 -12 -9 -6 -3 0 3 6 9 12
• Conditions
Indoor: DB20˚C
Indoor air flow: High
Current (A)
Outdoor temperature (˚C)
<Heating>
Pipe length: 7.5 m
230 V, 50 Hz (1 phase)
<Cooling>
110%
105%
100%
95%
90%
85%
80%
75%
70%
65%
60%
55%
50%
45%
40%
Current (A)
Outdoor temperature (˚C)
32 34 36 38 40 42 44 46 48 50 52
• Conditions
Indoor: DB27˚C / WB19˚C
Indoor air flow: High
Pipe length: 7.5 m
230 V, 50 Hz (1 phase)
<Heating>
130%
120%
110%
100%
90%
80%
70%
60%
50%
40%
30%
20%
Current (A)
Outdoor temperature (˚C)
-27-24-21-18-15-12-9-6-3036912
• Conditions
Indoor: DB20˚C
Indoor air flow: High
Pipe length: 7.5 m
230 V, 50 Hz (1 phase)
