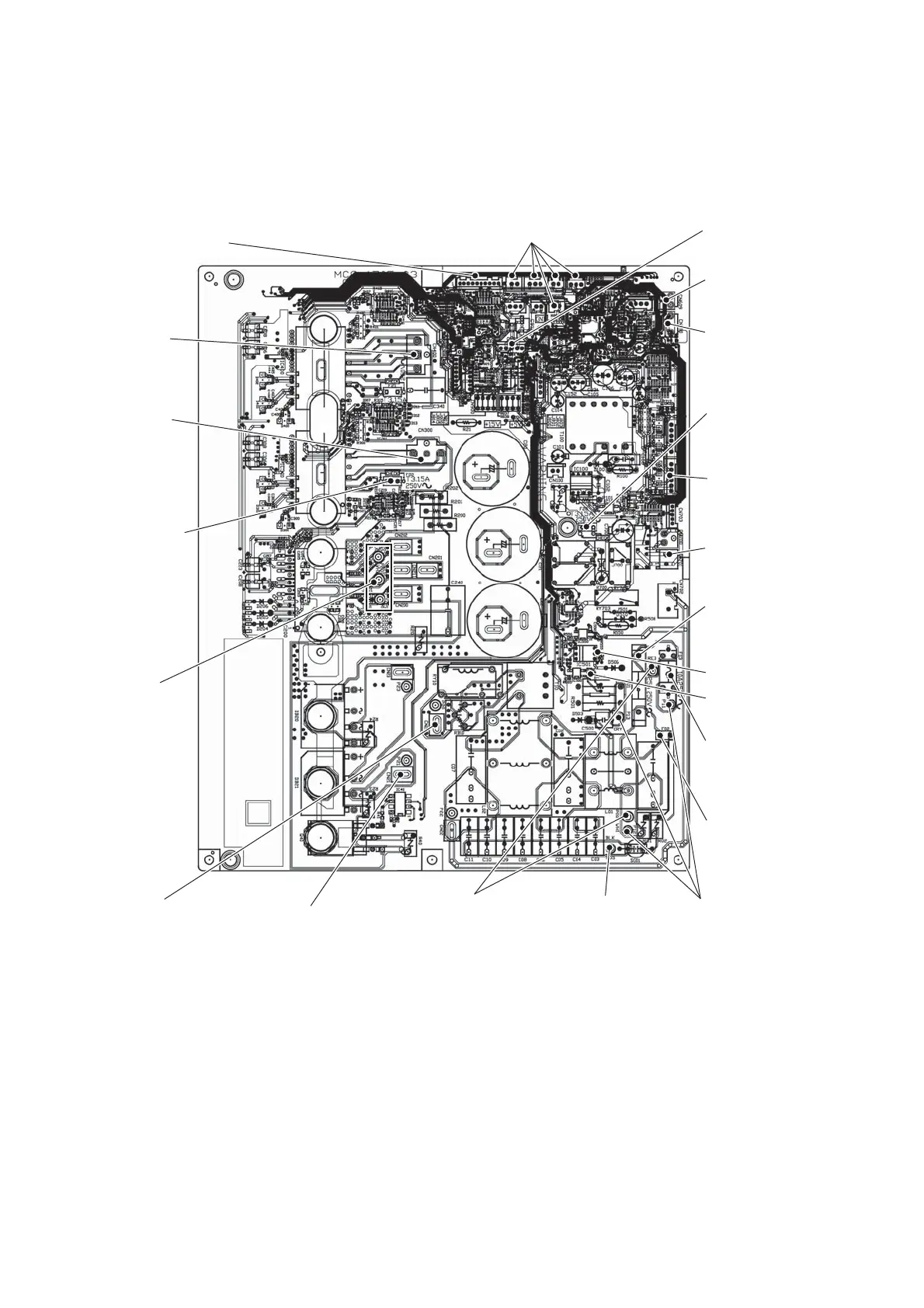

7-1-2. Print Circuit Board, MCC-1705
CN807 (WHI)
Connector for Display
P.C. board MCC-1646
CN400 (WHI)
Connector for
FAN motor
CN300 (WHI)
Connector for
FAN motor
F22
Fuse (250 V / 3.15 A)
For FAN motor circuit
P200 (RED),
P201 (WHI),
P202 (BLK)
Lead wire
For COMP motor
CN20
Faston for
REACTOR (CH-101)
CN21
Faston for
REACTOR (CH-101)
P01 (RED), P02 (WHI)
Lead wire for
Input voltage
P05 (BLK)
Lead wire for Earth
P11 (RED), P12 (WHI)
P13 (GRY)
Lead wire for
indoor unit
CN805 (BLU)
Connector for
Option P.C. board
CN609 (BLU)
Connector for
Compressor case
thermostat
CN690 (GRN)
Connector for
High-pressure
switch
F20
Fuse (250 V / 3.15 A)
For Power supply
circuit
CN710 (WHI)
Connector for
Pulse motor valve
CN701 (WHI)
Connector for
4-way valve coil
F01
Main Fuse (250 V / 25 A)
Indoor / outdoor
communication LED
D504
(ORG: outdoor → indoor)
D502
(GRN: indoor → outdoor)
F03
Fuse (250 V / 10 A)
for lead wire between
indoor and outdoor
unit
F02
Fuse (250 V / 3.15 A)
for surge absorber
Connector for temperature sensor
TL CN604 (WHI), TD CN603 (WHI), TO CN602 (YEL)
TE CN601 (WHI), TS CN600 (WHI)
