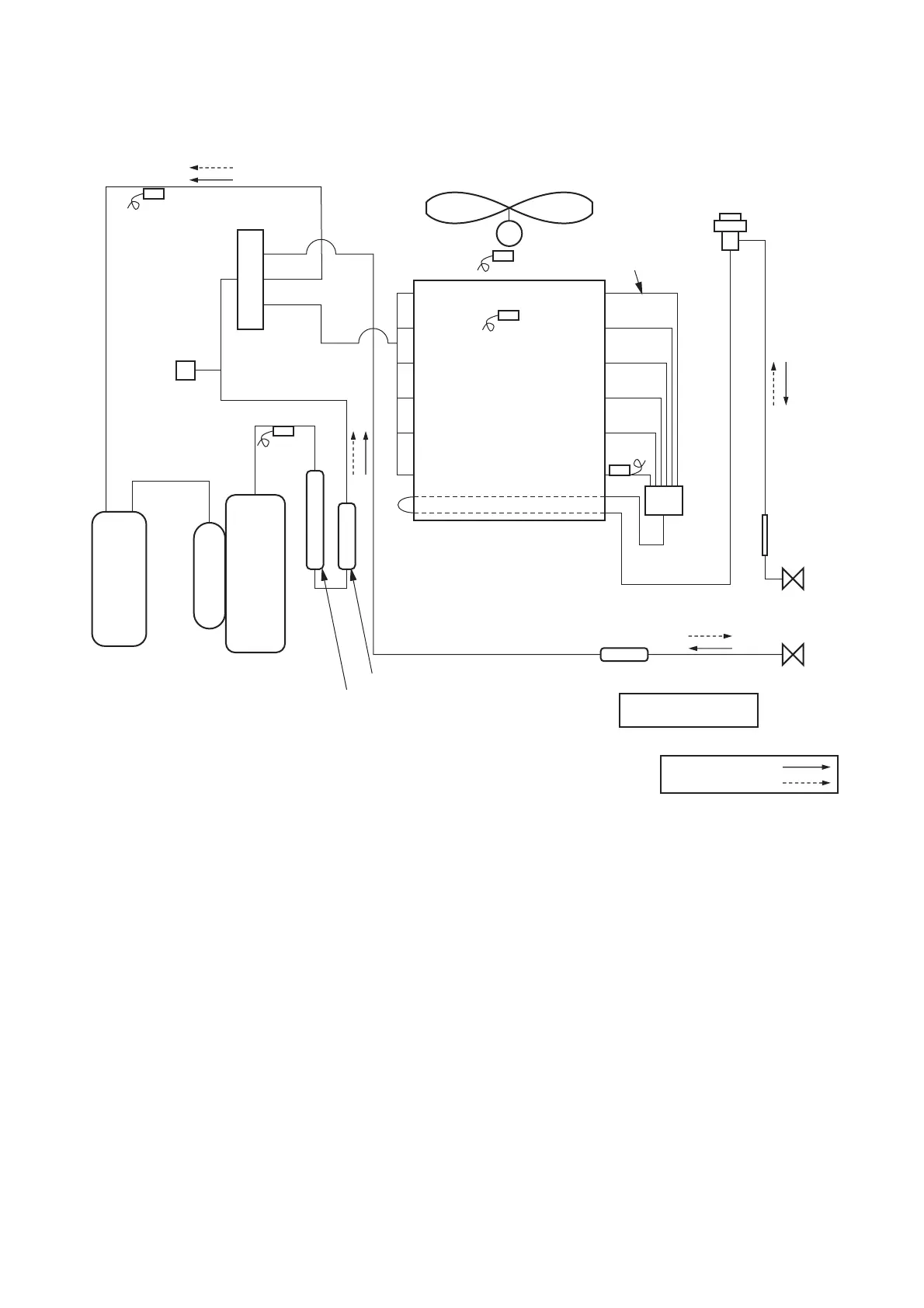

GP801
Capillary
tube
Pulse motor
valve
Fan motor
TO sensor
TL sensor
Outdoor heat exchanger
TS sensor
High pressure
switch
Automatic restoration
OFF: 4.15 MPa
ON : 3.2 MPa
4-way valve
TD sensor
Compressor
A
ccumulator
(1500 cc)
Muffler DIA 25 × 180 L
Muffler DIA 25 × 210 L
Strainer
DIA 25.4
Cooling: Low pressure
Heating: High pressure
Gas pipe
DIA 15.9
Packed valve
Liquid pipe
DIA 9.5
Packed valv
e
Strainer
DIA 12.7
Distributor
TE
sensor
Fan
M
In cooling operation
In heating operation
