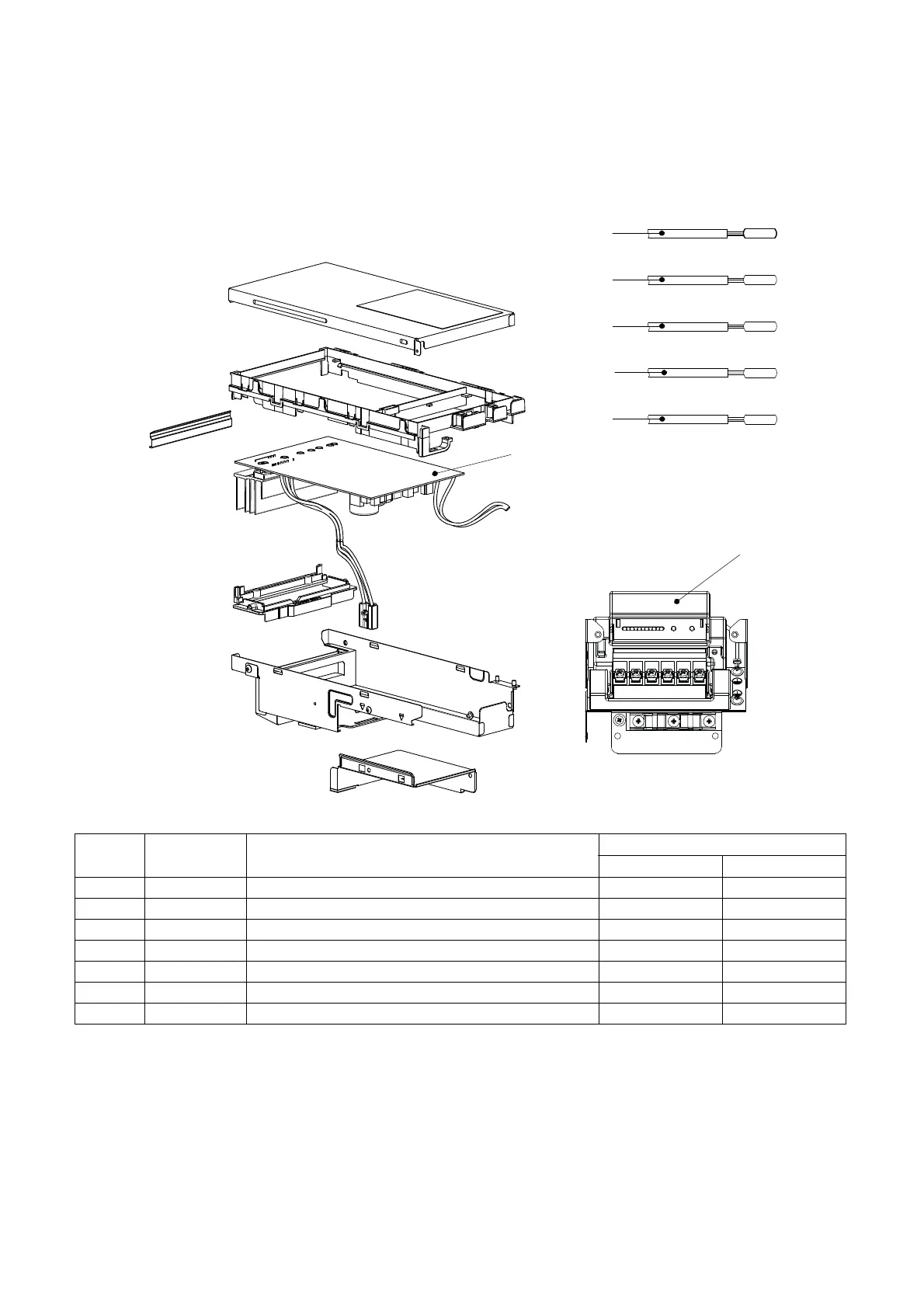

14-2.Inverter Assembly
RAV-GP561ATW-E, RAV-GP561ATW-TR
Location
No.
Part No. Description
Q’ty/Set RAV-GP
561ATW-E 561ATW-TR
052 43P50012 SENSOR, TD 1 1
053 43P50013 SENSOR, TL 1 1
054 43P50010 SENSOR, TE 1 1
055 43P50004 SENSOR, TO 1 1
056 43P50011 SENSOR, TS 1 1
071 43P69008 PC BOARD ASSY, MCC1768 1 1
072 43P69002 PC BOARD ASSY, MCC1646, TERMINAL BLOCK 1 1
056
055
054
053
TD
052
071
TL
TE
TO
TS
072
