10-2-2.Automatic Address Example from Unset Address (No miswiring)
(1) Standard (One outdoor unit)
(2) Single group operation
(Multiple outdoor units = Multiple indoor units only with serial communication)
10-3.Remote Controller Wiring
• Strip off approx. 9 mm the wire to be connected.
• For single system, use non polarity, 2 core wire is used for wiring of the remote controller.
(0.5 mm² to 2.0 mm² wires)
• For the synchronous twin system, use 2-conre shield wire (Vinyl cord for microphone 0.5 to 2.0 mm²) to conform
to the EMC standard.
* Use 2-core shield wire (MVVS 0.5 to 2.0 mm² or more) for the remote controller wiring in the simultaneous twin
simultaneous triple and simultaneous double twin systems to prevent noise problems.
Be sure to connect both ends of the shield wire to earth leads.
* Connect earth wires for each indoor unit in the simultaneous twin simultaneous triple and simultaneous double
twin system.

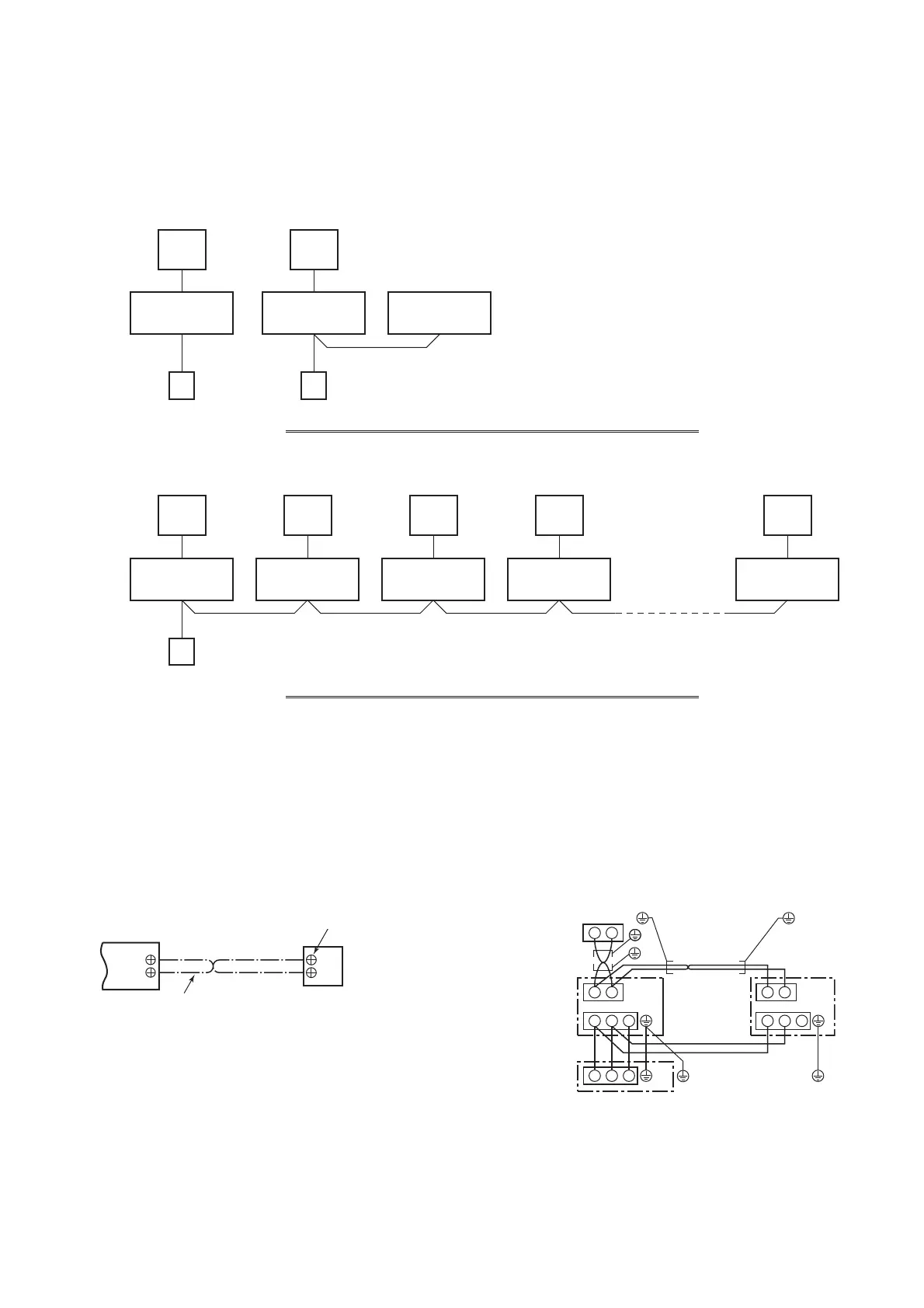

Wiring diagram Simultaneous twin system
* For details of wiring / installation of the remote
controller, refer to the Installation Manual enclosed
with the remote controller.
Only tur
ning on source power supply (Automatic completion)
1-1
Individual
1-1
Master/Header
1-2
Sub/Follower
Only turning on source power supply (Automatic completion)
2-1
Sub/Header
1-1
Master/Header
3-1
Sub/Header
4-1
Sub/Header
8-1
Sub/Header
A
B
A
B
Terminal block for remote controller
wiring of indoor unit
Terminal block
Remote controller
unit
Remote controller wire
(Procured locally)
A B
1 2 3
A B
1
1
2
2
3
3
Remote controller
Remote controller
wiring
Indoor side
Indoor/Outdoor
connecting wires
Outdoor side
Remote controller
inter-unit wiring
Indoor power
inter-unit wiring
Indoor side
To Next Page
