86
9-2. Outdoor Unit

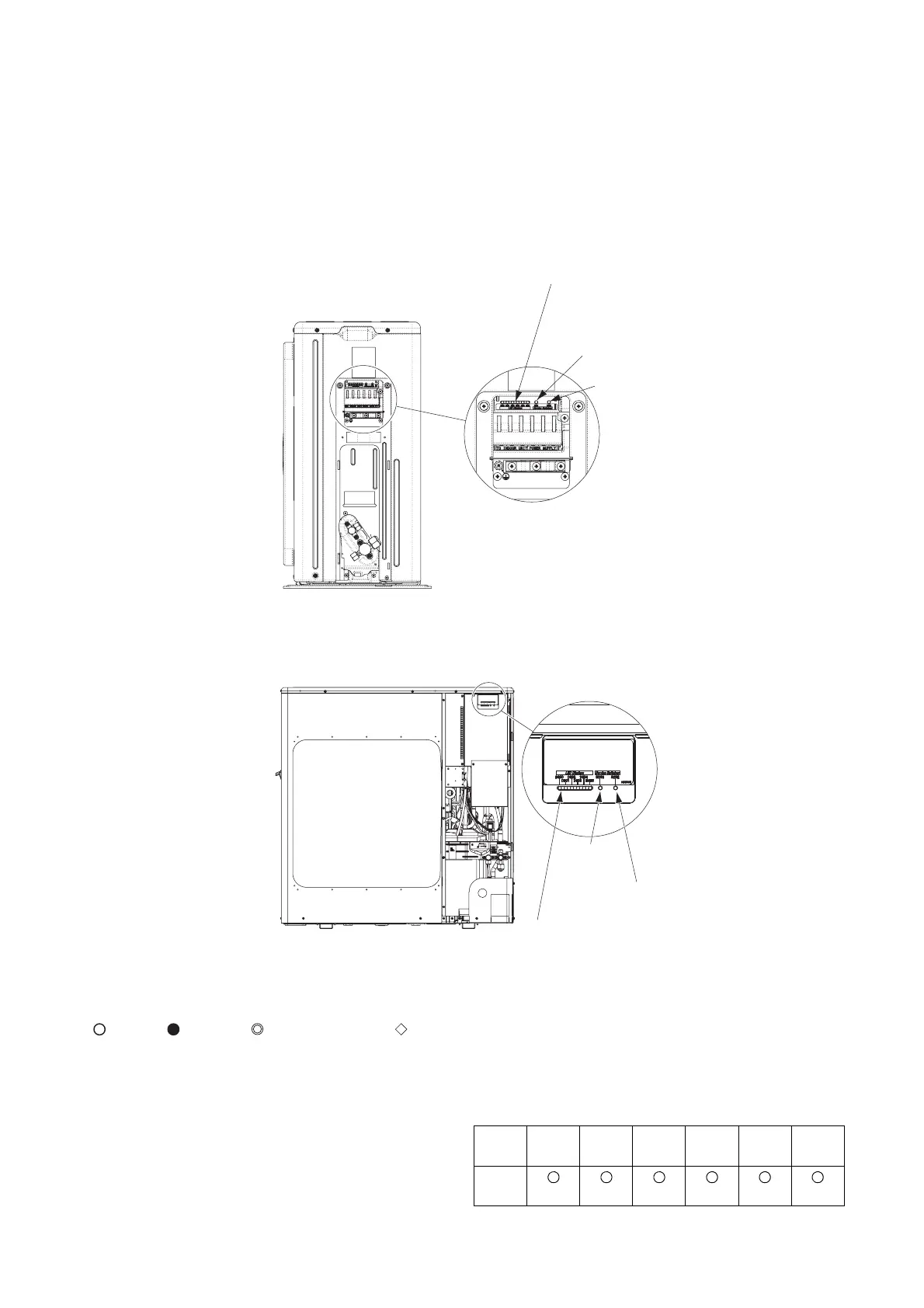

Various status displays and operations can be accessed using the push buttons (service switches) on the outdoor
Control P.C. board and LED display.
Service switch (SW01 and SW02) operation
Concerning the LED display
• The LED display has 4 patterns.
: Go ON : Go OFF : flash (5 times/sec.) : flashing (1 time/sec.)
• The initial state of the LED display is as shown on
the right with D805 lit up.
If not in the initial state (D805 flashing) then it can be
returned to the initial state by pushing and holding
down SW01 and SW02 at the same time for 5
seconds.
LED display: Initial state
D800 to D804 : Go Off and flash (5 times/sec.)
D805 : Go ON
<GP56>
<GP80>
SW02
SW01
LED
(D800 to D805)
SW01
SW02
LED
(D800 to D805)
D800
D801
D802
D803
D804
D805
LED
(Yellow) (Yellow) (Yellow) (Yellow) (Yellow) (Green)
To Next Page
