Toyota Prius Guide

P
-8-
lug-in Charging System Component Locations &
Descriptions (2010 Model)
Component Location Description
Charge Inlet

Driver Side Front
Fender
Connects to the charge cable assembly
charge connector. Supplies the electrical
power from an external power source to the
vehicle.
Power Cable
for Charging

Driver Side
behind front
fender
Power cable connecting the charge inlet and
charger assembly.
Charger
Assembly 
Under Front
Passenger Seat
Boosts the AC power supplied from an
external power source and converts it to DC
to charge the HV battery assembly and
operate the A/C compressor.
Charge Cable
Assembly 
Driver Side Front
Fender
Connects to the charge inlet and supplies
power from an external power source to the
vehicle.
Charge
Indicator 
Upper Dash near
Driver Side
Windshield
Illuminates, flashes, or goes off to indicate
the plug-in charging status. Also
illuminates to indicate the operation of the
remote air conditioning system.

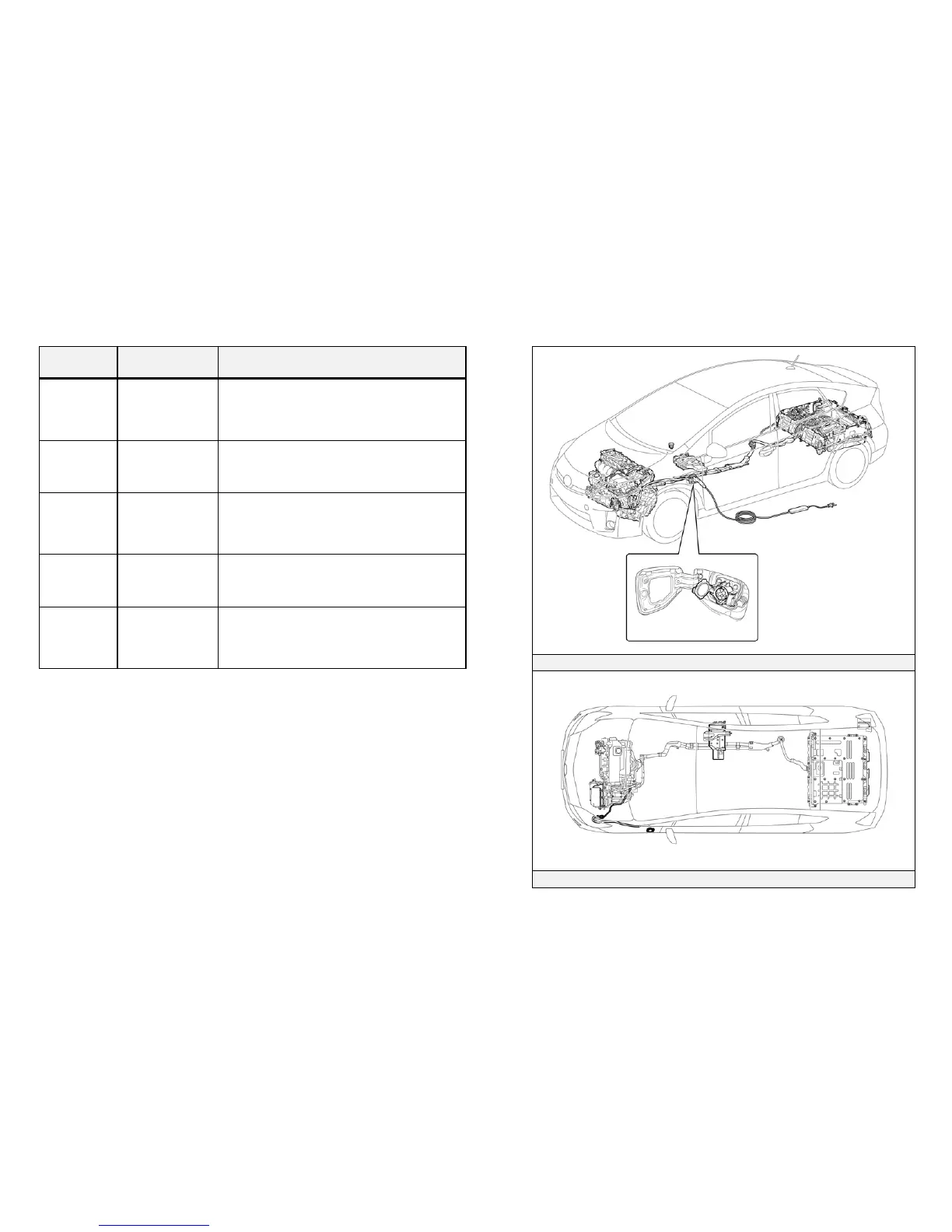

Plug-in Charging System Components
Components (Top View) and Charge Inlet Power Cables







